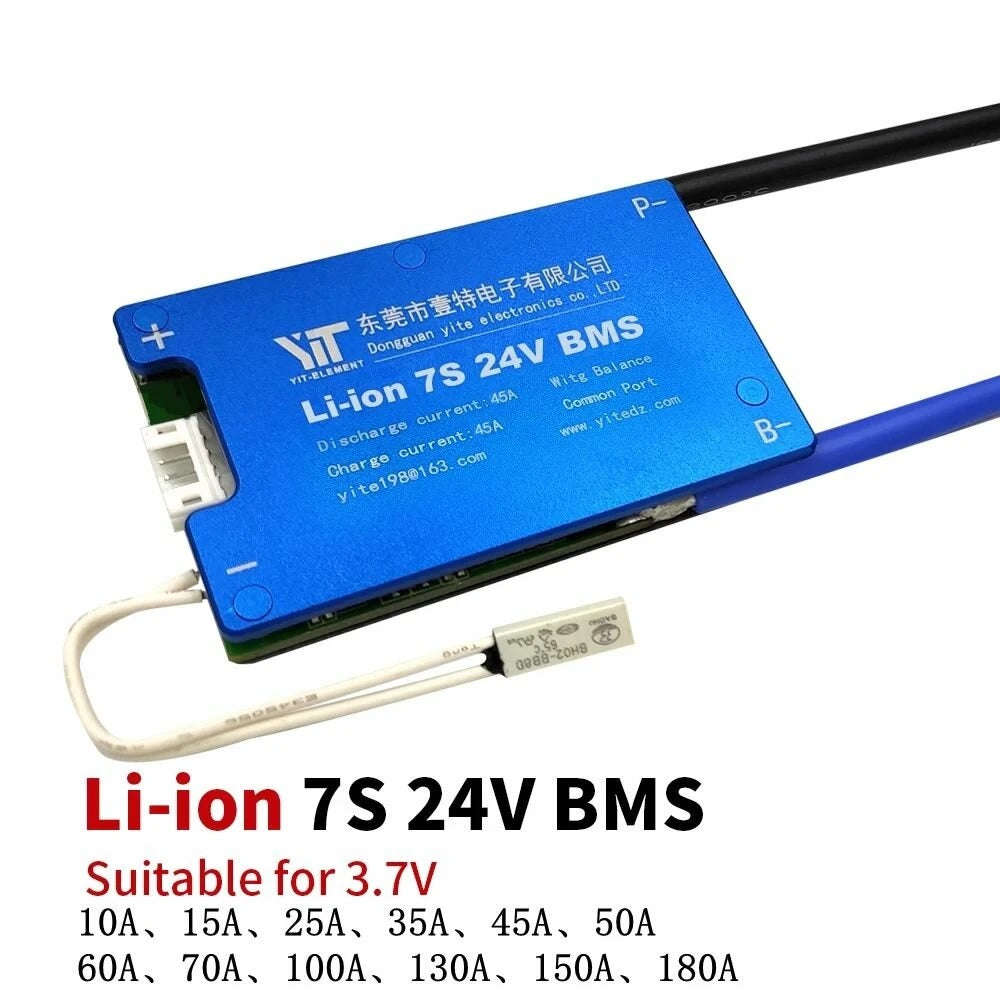

Charging
Charge current: Same as continuous current
Charging voltage：29.75V
Over charge protection
Overcharge detection voltage：4.25V±0.05V
Overcharge release voltage：4.15V±0.05V
Overcharge protection delay：600uS
Over discharge protection
Over discharge protection voltage: 2.7V ± 0.1V
Over discharge release voltage：3V±0.05V
Over discharge detect delay：600uS
Balance
Balance detection voltage：4.18V
Balanced release voltage：4.18V
Balance current：35mA±5mA
Overcurrent protection
Instantaneous current: continuous current * 2.5
Overcurrent detection delay：600uS
Overcurrent detection voltage：100mV
Overcurrent protection release condition: Disconnect load
Short circuit protection
Short circuit protection condition: External load short circuit
Short circuit detection delay：600uS
Short circuit protection release condition; Disconnect load

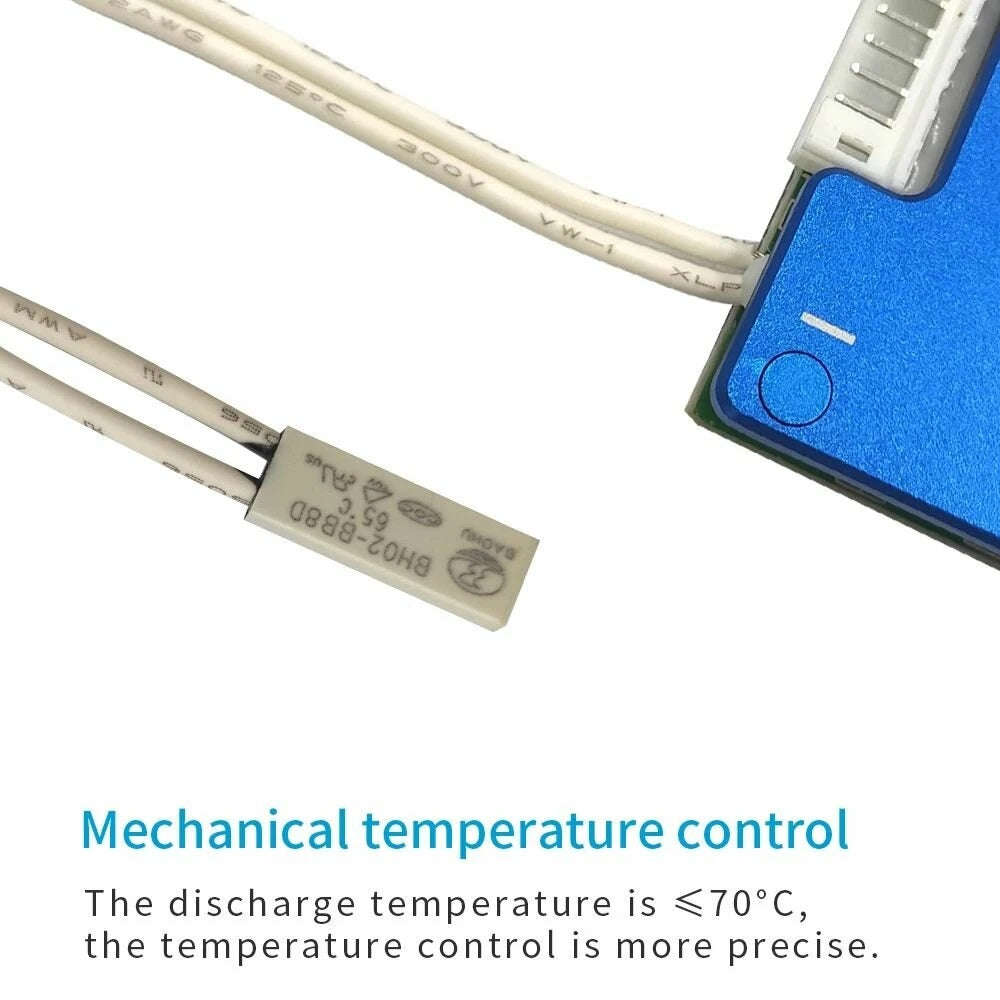

Temp Protection
Charging temperature: 65
Discharge temperature: 65
Remove temperature control protection: within working temperature
Inner resistance
Main circuit on-resistance：10m
Self electricity consume
Working current：100uA
Sleep current (when the battery is over-discharged)：20uA
Working Temp
temperature range：-20/+80
Use the queue of operations:

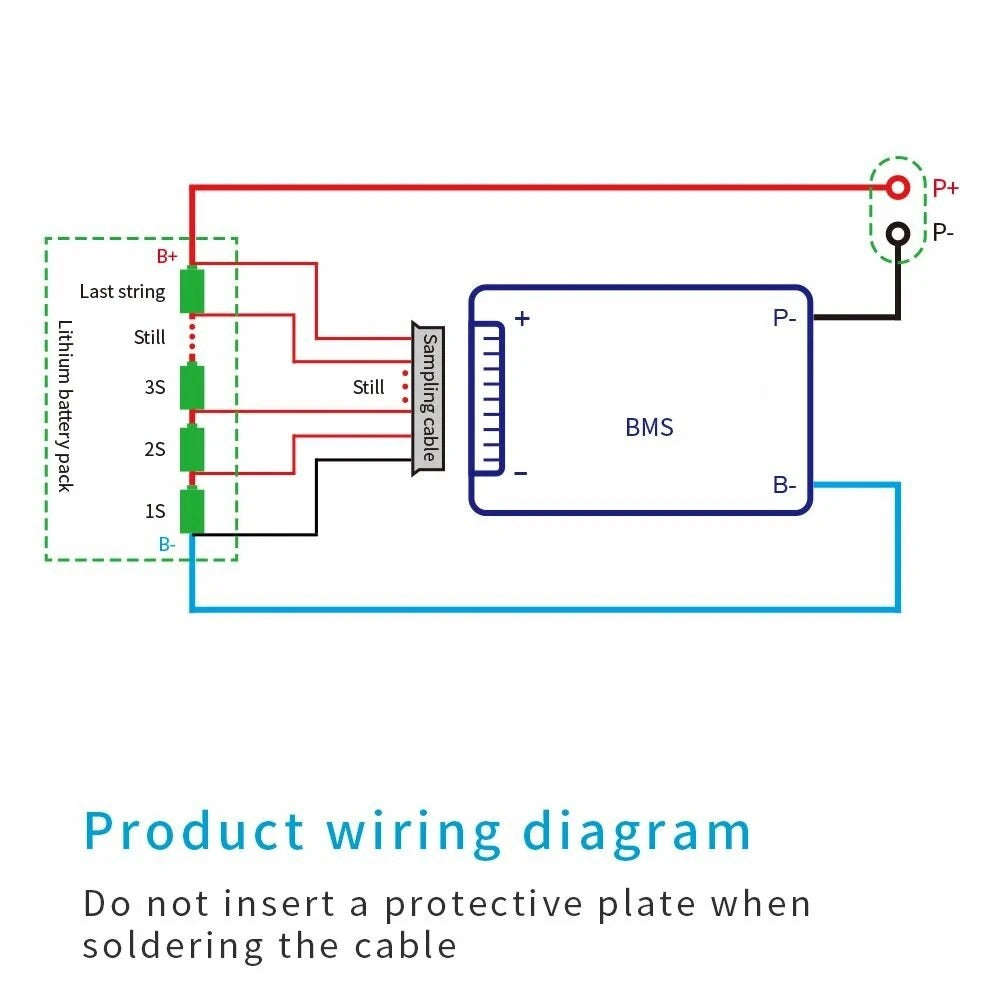

1. The cable starts from the black thin wire connecting B-, the second wire (the thin red wire) is connected to the positive pole of the first battery, and the positive pole of each battery is connected in turn until the last red wire is connected to B+;
2. After connecting the cable, do not insert the plug directly into the BMS. Measure the voltage between each two adjacent metal terminals on the back of the plug. If the voltage of the terpolymer battery should be between 2.8V and 4.2V, the iron-lithium battery should be between 2.5V and 3.65V.
3. After correct wiring queue and voltage confirmation, insert the BMS socket.
4. The protective board B line (blue thick line) is connected to the negative pole of the battery pack.
5. After the wiring is completed, measure whether the total voltage of the battery pack and the total voltage passing through the BMS are equal. If they are different, check again according to the above wiring queue.

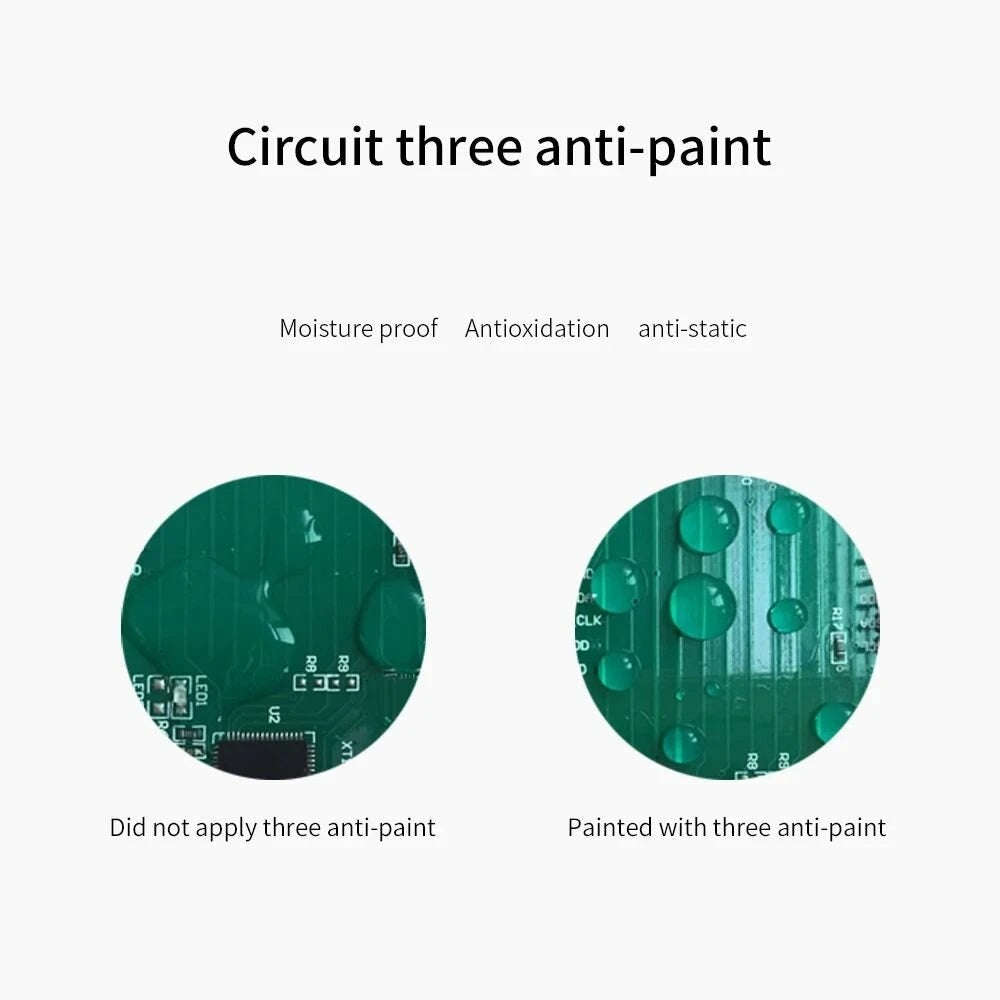

Tips:
The battery pack protection board, which is a semi-finished product of electronic products, is a wearing part in case of wrong use.
If you don't understand how to use it, please read the manual carefully or ask the customer service. Any wrong use will burn out the front-end sampling resistor. We will not accept such disputes of customer damage. Please do not buy if you mind.
