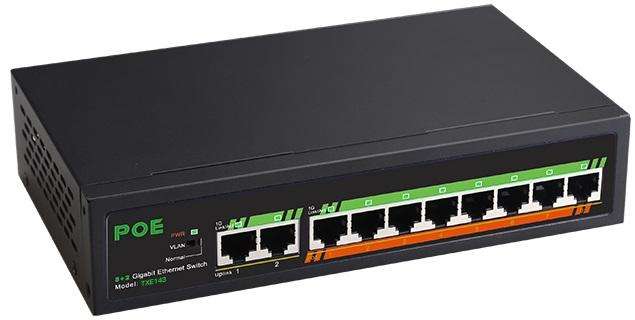

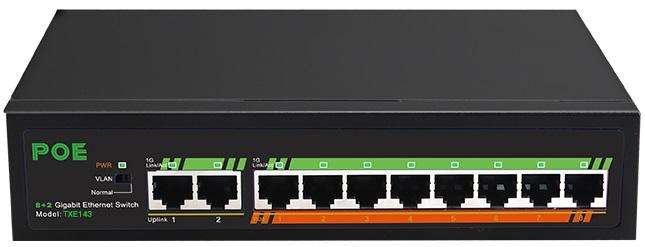

8+2 GIGABIT POE SWITCH

8+2 GIGABIT POE SWITCH - TXE143

8-Ports 10/100/1000Mbps PoE + 2 Ports

10/100/1000Mbps Uplink Unmanaged Ethernet Switch

Hardware Specification

Model Name: TXE323

Chipset: AN8855H+TMI7608

Standards and Protocols

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

IEEE802.3az, IEEE802.1q,IEEE802.3at, IEEE802.3af

Interface: 10 x 10/100Mbps Auto -Negotiation Ports

Network Media

10Base-T: UTP Category 3, 4, 5 Cable (Maximum 100m)

100Base-Tx: UTP Category 5, 5e Cable (Maximum 100m)

1000Base-T: UTP Category 5, 5e Cable (Maximum 100m)

Transfer Method: Store-And-Forward

Switching Capacity: 20Gbps

Packet Forwarding Rate:14.88Mpps

PoE Ports(RJ45): 8 x PoE Ports Compliant With 802.3at/af

Power Pin Assignment: 1/2(+),3/6(-)

PoE Budget: 90W

Indicators

Per Device: Power

Per Port: Link/Activity

Power Supply: 180 - 240VAC, 50/60Hz

Power Consumption: Maximum(PoEon): 95W (220V/50Hz)

Dimensions ( W x D x H ): 220 x 160 x 40mm

Environment

Operating Temperature: 0? - 45?

Storage Temperature: -40?- 70?

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing

2 PIN Powercord Included
