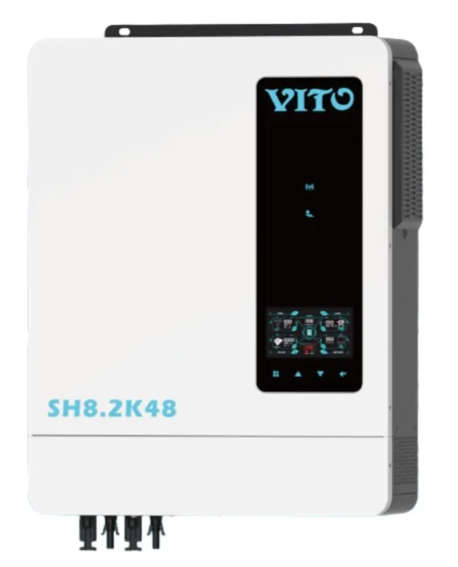

8.2KVA 8200 Watt MPPT Hybrid Inverter -VITO SH8.2K48

Features

Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
WIFI/GPRS (Optional)
Can connect to lithium battery
3.2 Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
Generator or Utility.
PV modules

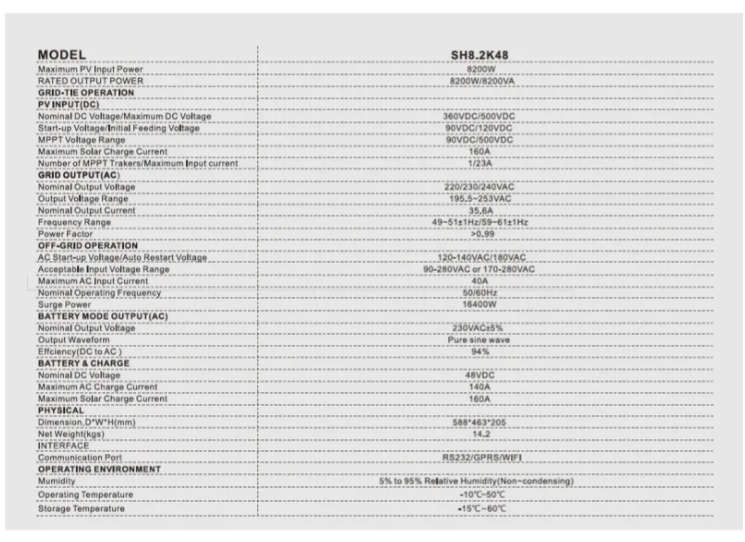

PV INPUT:
Max. PV Array Open Circuit Voltage 500Vdc
PV Array MPPT Voltage Range 90Vdc~450Vdc

RGB Light
Battery Mode: Red Light
Utility Mode: Blue Light
PV Mode: Purple Light

GRID/AC OUTPUT:
Nominal Output Voltage 220/230/240Vac Feed-in Grid Voltage Range 195-253Vac Feed-in Gnd Frequency Range 49-511Hz Nominal Output Current: 15 7A Power Factor Range >0.99
Maximum Conversion Efficiency (DC/AC).97% Nominal Operating Frequency 50/60Hz

TWO LOAD OUTPUT POWER:

Full Load 8200W
Maximum Main Load 8200W
Maximum Second Load 2733W

Size:

588 X 463 X 205

14.2kg

What's in the box
1 x Inverter
1 x User Manual

Warranty: 5 Years Repair
