8 Bi-direction IO I2C Expansion Board With Isolation Protection For Raspberry Pi

20 available / new

R463.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3519

93.51 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643370995

Description:

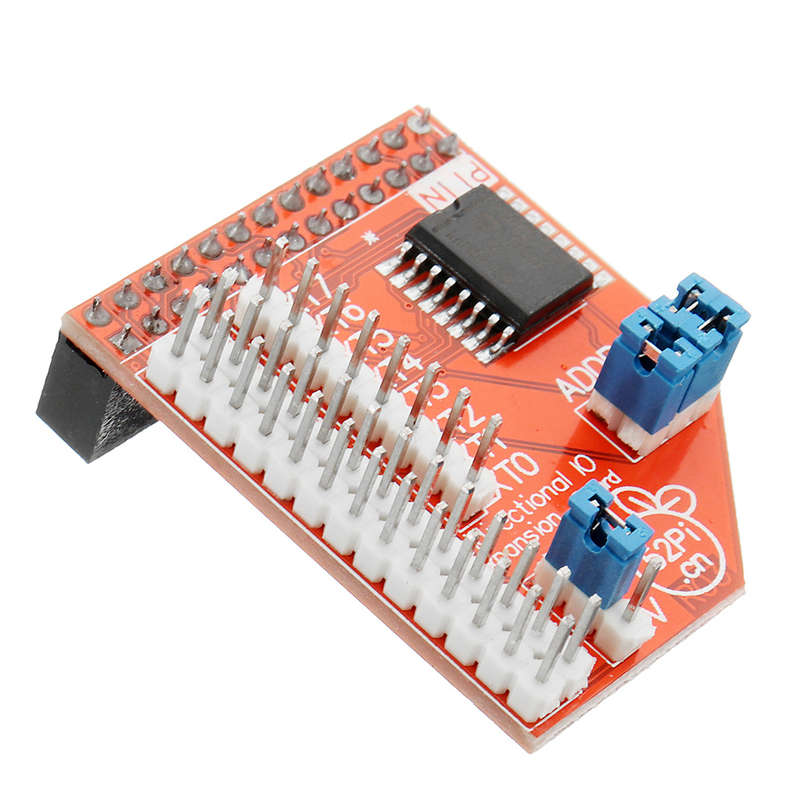

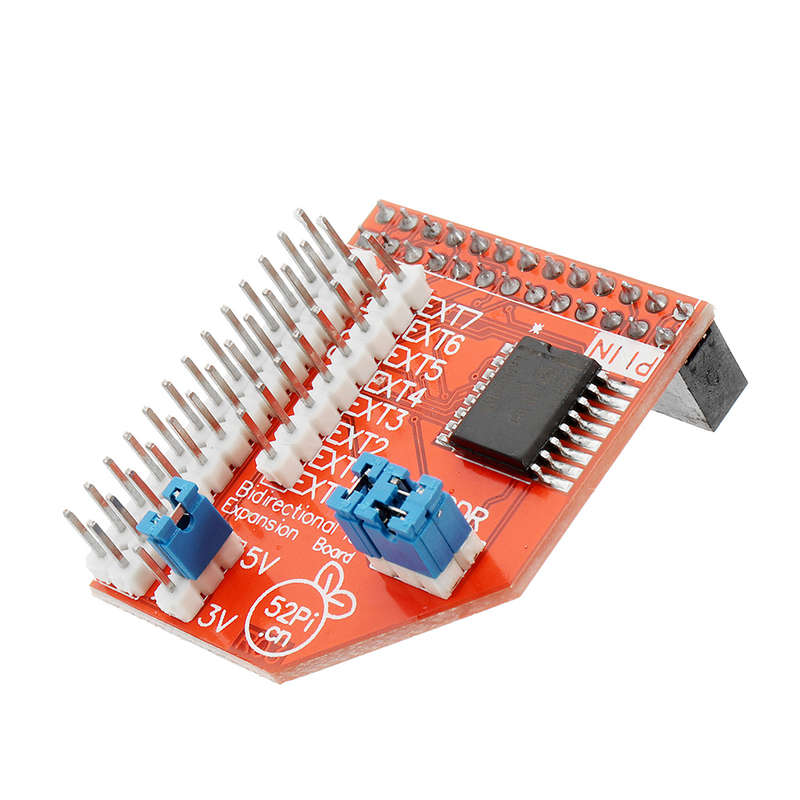

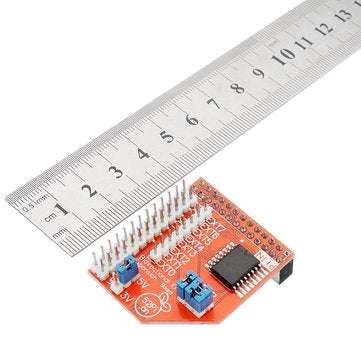

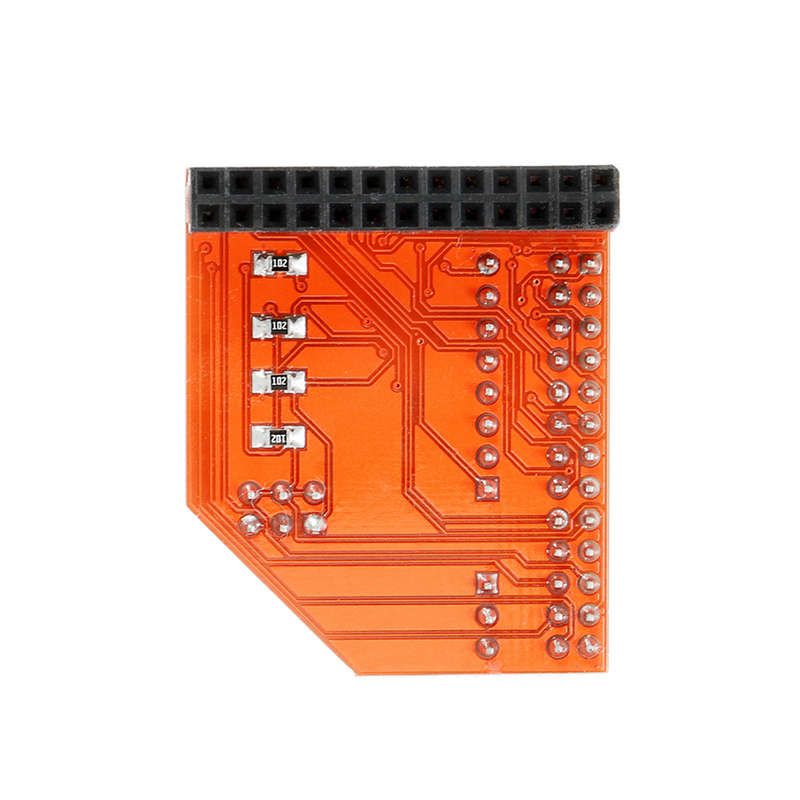

The module use the Raspberry Pi Model B through the I2C bus to expand 8 bi-direction IO.
You can operate Pin A0,A1,A2 through the mini jumper to choose the I2C address. You can choose maximum 8 different address from 0x20-0x27.The module lead to the Raspberry Pi's GPIO again so you can cascade maximum 8 modules one by one

Features:

Input voltage:5V or 3V
8 bi-direction IO
Provide Isolation protection
Communicate with I2C bus
Expand 8 modules maximum
8 different I2C address that you can choose
Reverse insert will not disturb the module
IO definition

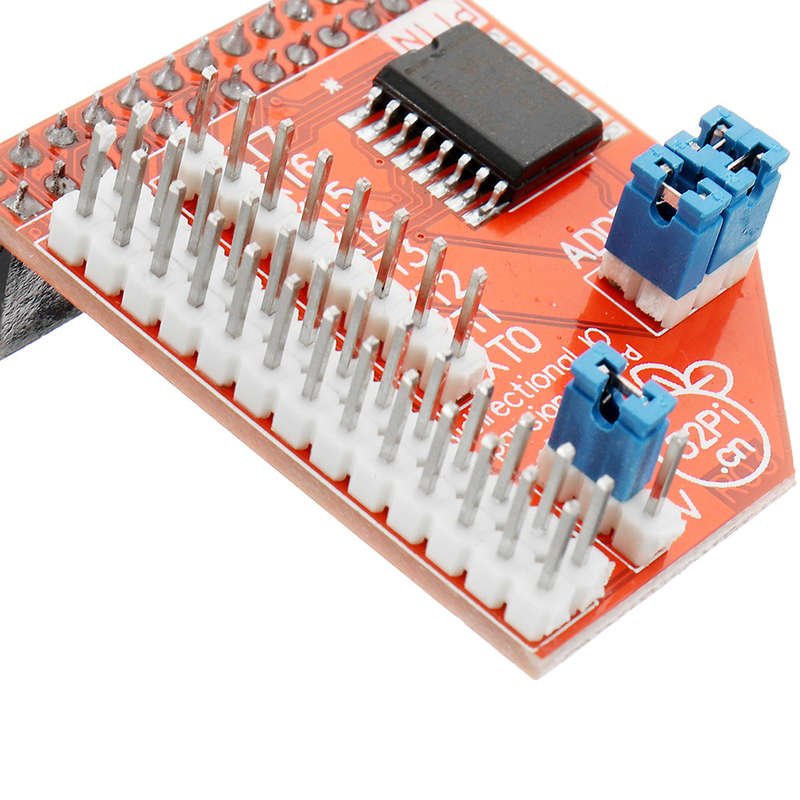

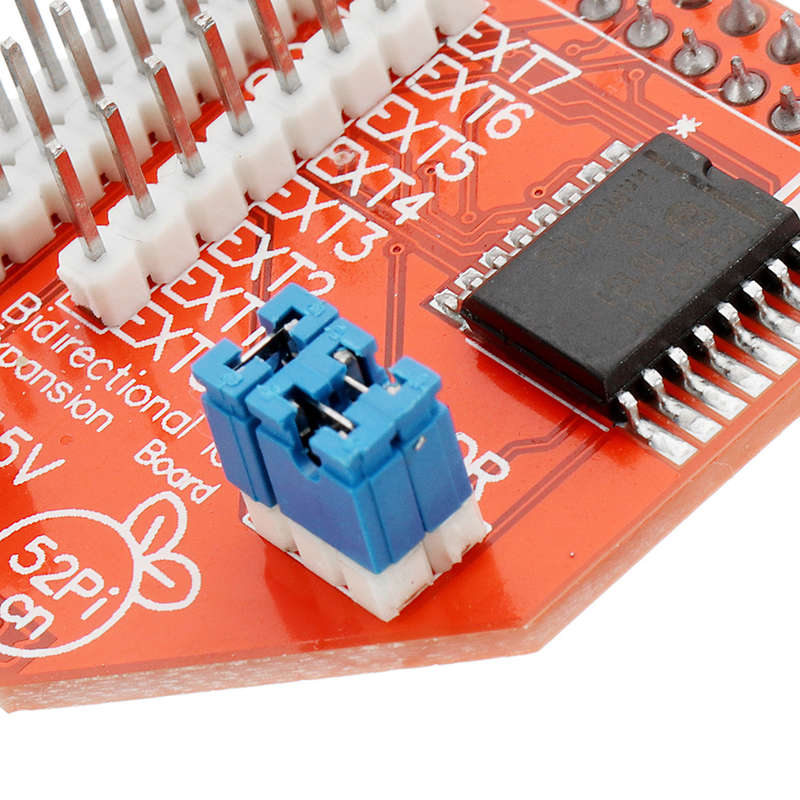

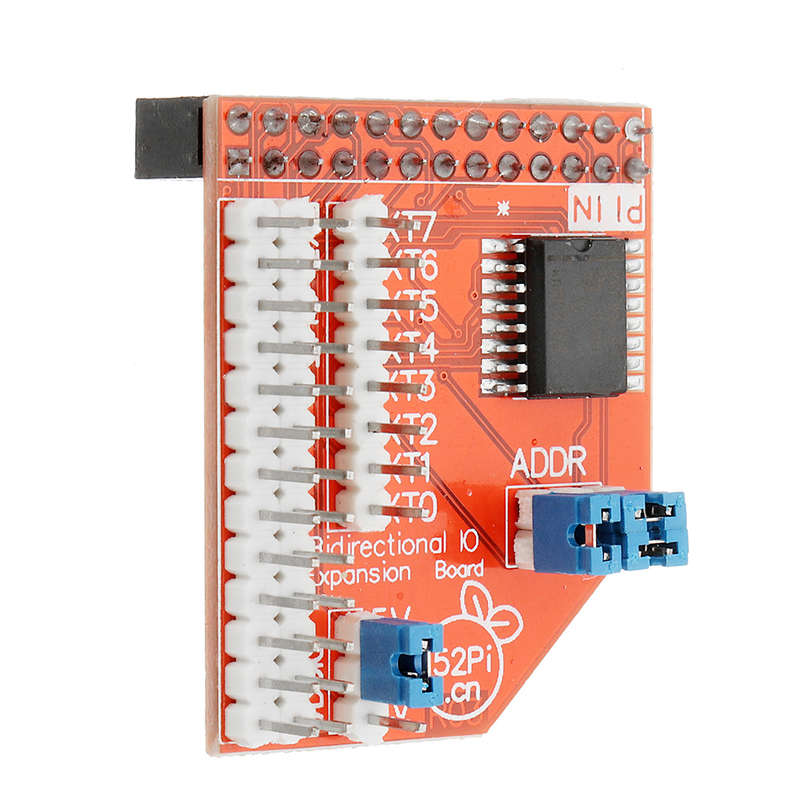

The EXT0-EXT7 are 8 bi-direction GPIO that you can use. There are 6 Pins near the letter ADDR. They are Pin A0,A1,A2.You can choose different I2C address through the setup the mini jumper.

Package Included:

1x I2C expansion board
