Brand New in Box!!! Never used!

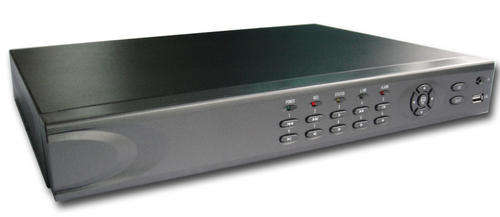

8 Channels H.264 IP Networking Digital Video Recorder DVR
Included CD contains Client software/Support Internet Explorer 7 or above.
Support for Iphone, Blackberry, Android, Windows mobile and Symbian.
User guide included with CD.
VGA port for LCD monitor.
Operate by either USB Mouse or Remote Control (Both included)
+
1TB (1 000GB) Hard drive pre-installed
This Supreme stand alone H.264 8 Ch DVR System is amazing.
The system has really amazing functions,
Motion detection, sensor trigger Alarm, Audio, Motion detection
Main features:
Standard H.264 video compression format
16-big true-color semi-transparent graphical menu interface, menu options tip
A variety of recording modes: Manual, timing, movement and alarm
Optimized four-channel simultaneous playback (single playback for eight-channel ones)
A variety of backup (U disk, mobile hard disk, network)
Multi-functional operation, recording, playback, monitor, backup and network transmission can be realized at the same time
Dual steam technology
Support network to implement multi-screen real-time browsing, parameter setting, copy or playback.
Support phone monitoring
Support event classification and precise time search and playback
Defaulted parameter value fast recovery
Technical parameters:
Video standard: PAL / NTSC selectable
Video compression format: Main profile H.264
Video input / output: BNC 8- Channel input / 2-channel output
VGA output: Support (optional)
Audio compression method: 8kHz x 16bit ADPCM
Audio input/output type: RCA 1-channel input, 1-channel output.
Alarm type: Motion detection, sensor trigger, video loss, disk full, disk error.
Alarm input/output 8-channel alarm input / 1-channel alarm output
Display resolution: PAL: D1 (704 x 576) NTSC: D1 (704 X 480)
Display frame rate: Single-channel PAL: 25fps, NTSC: 30fps
Playback resolution: Pal: CIF (352 x 288) NTSC: CIF (352x240)
Recording total frame rate: PAL: 200fps at CIF, NTSC: 240fps at CIF
Recording mode: Start automatic continuous, timing video, motion detection , trigger alarm.
Video playback time: 15/30/45/60 minutes adjustable.
Hard disk: Support one SATA HDD (Included 1TB SATA drive)
Network protocol: Support DHCP, UDP, TCP/IP, DNS, DDNS, PPPOE and other protocols.
Network functionality: Support IE browsing, real-time network monitor and network DVR parameter setting.
USB 1.1 interface: Support mouse operation.
USB 2.0 interface: Support mobile hard disk and USB disk backup and upgrade.
Playback mode: Normal playback, fast forward playback, fast backward playback, manual single-frame slow motion.
Network interface: One JR45 10M/100M self-adaptive Ethernet port.
PTZ control: Built in RS-485 interface, support Pelco-D and Pelco-P protocol.
Backup function: Support USB disk backup, movable hard disk backup and network backup.
