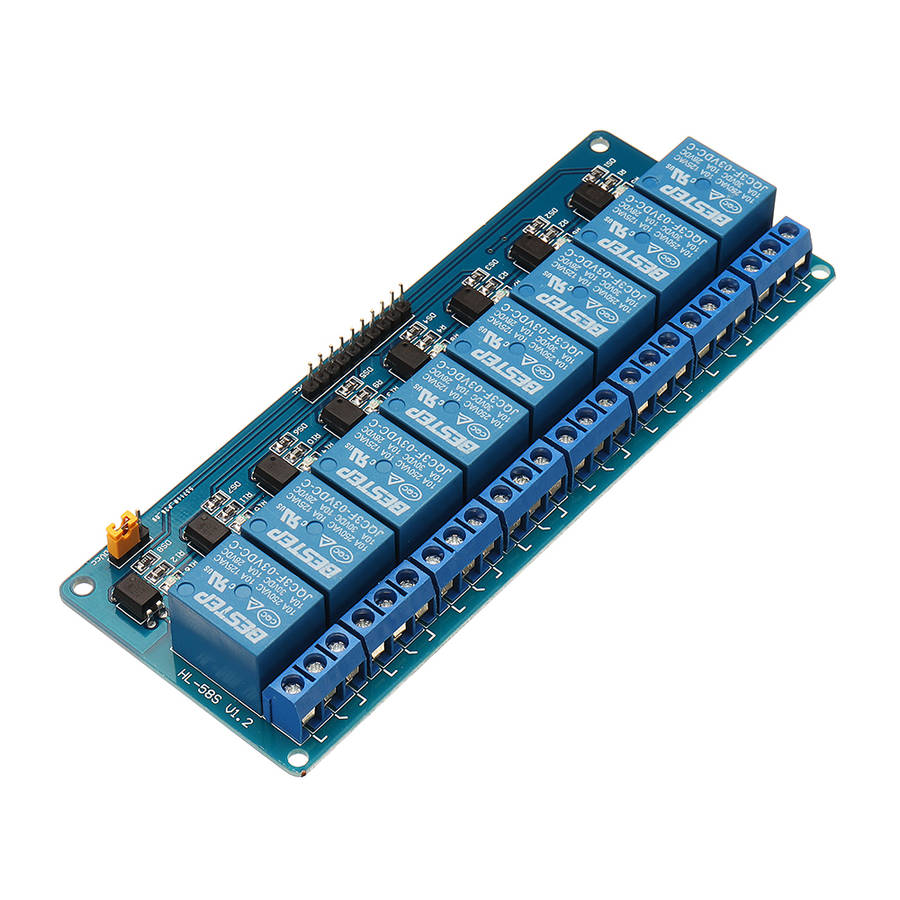

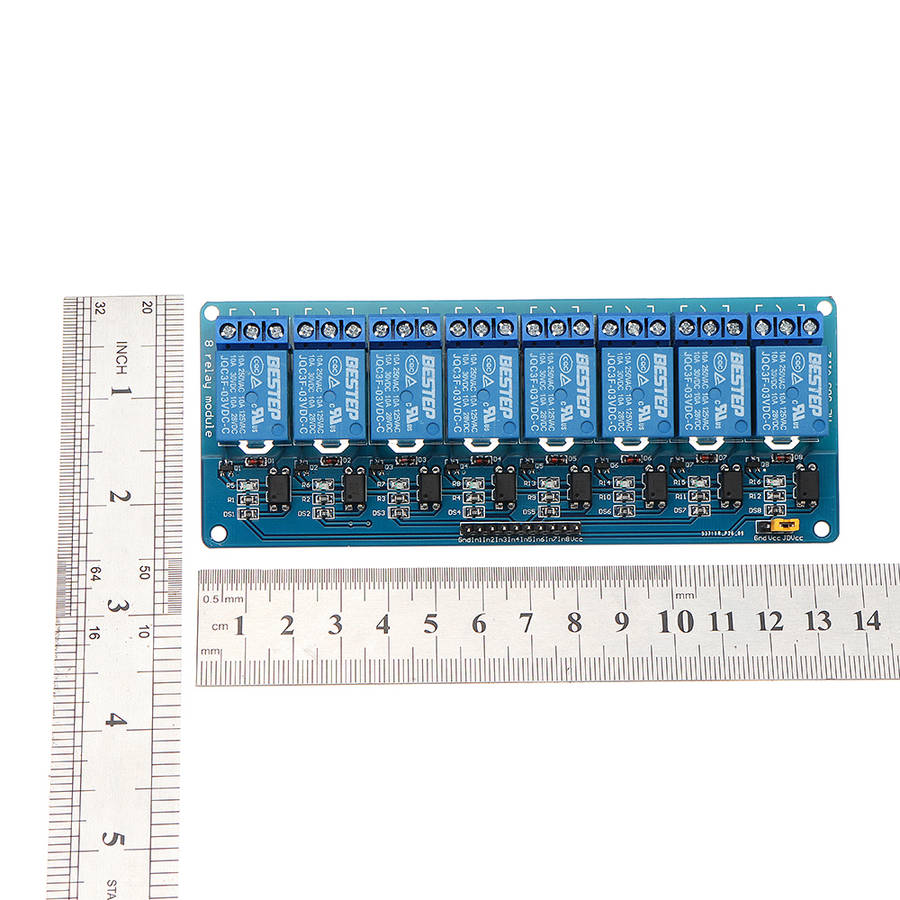

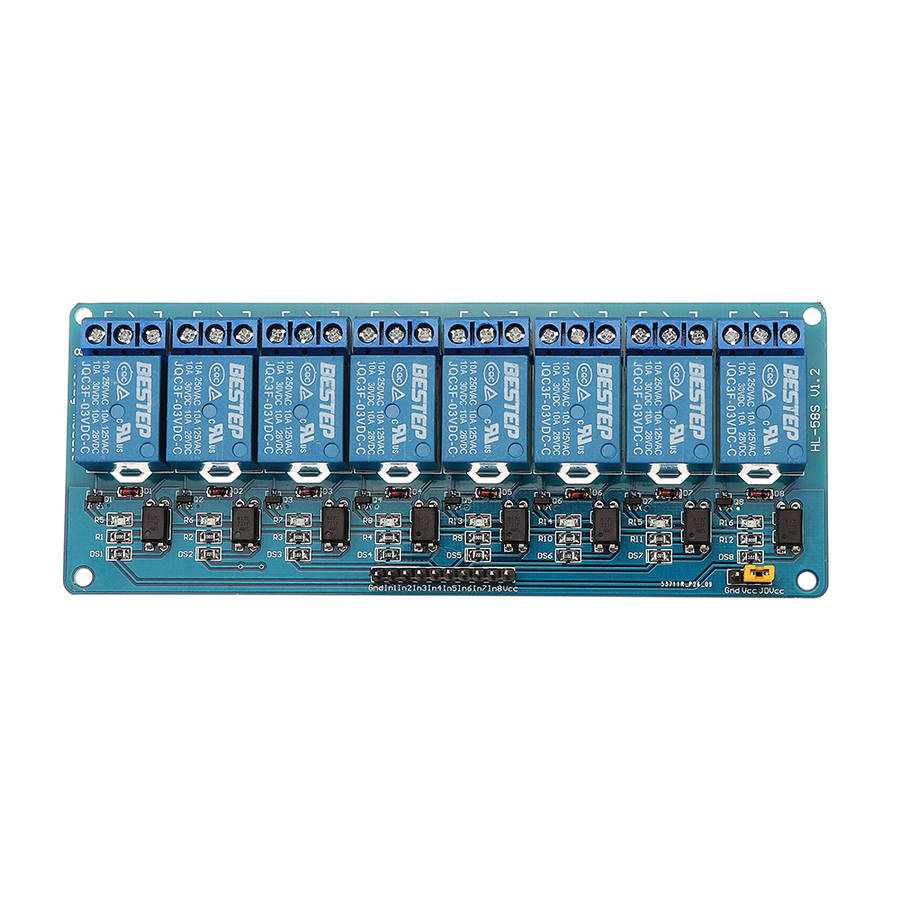

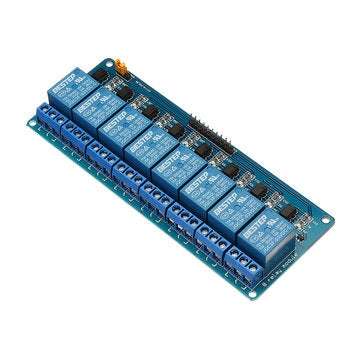

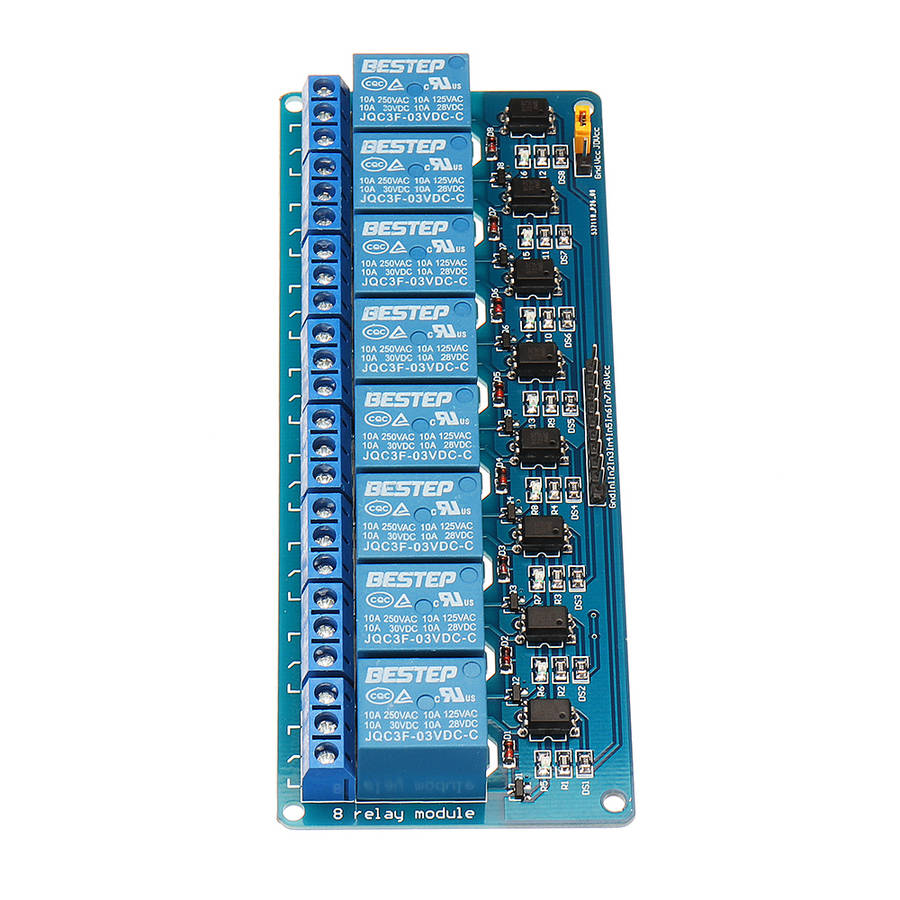

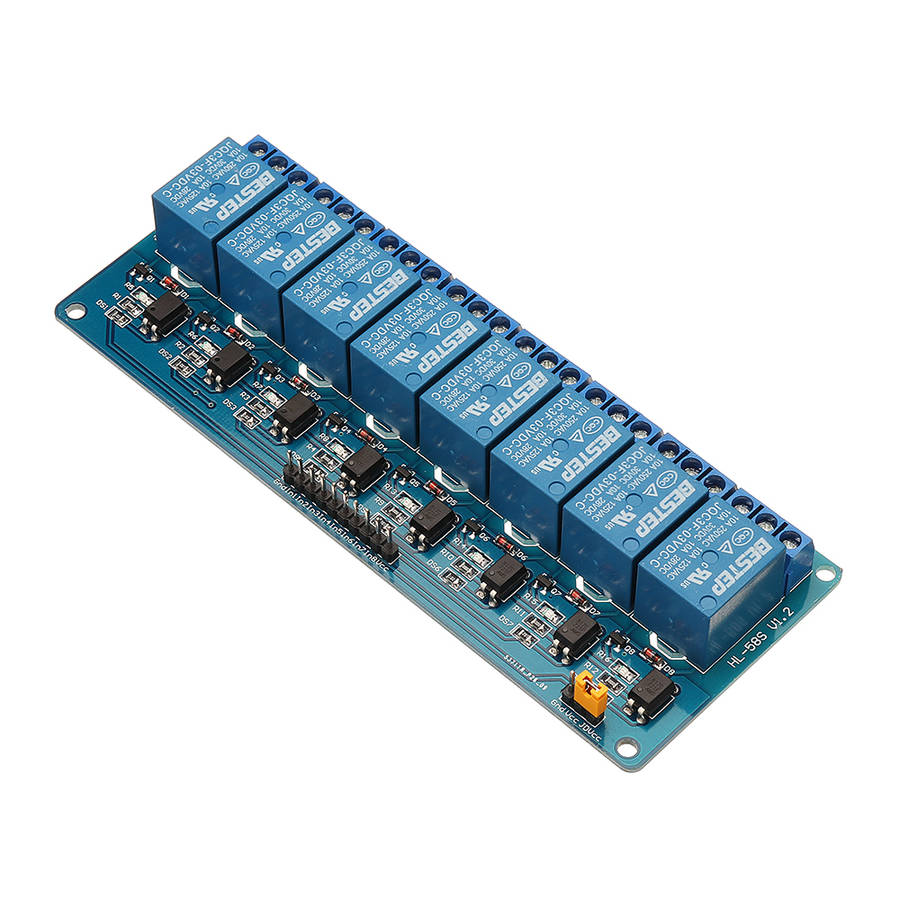

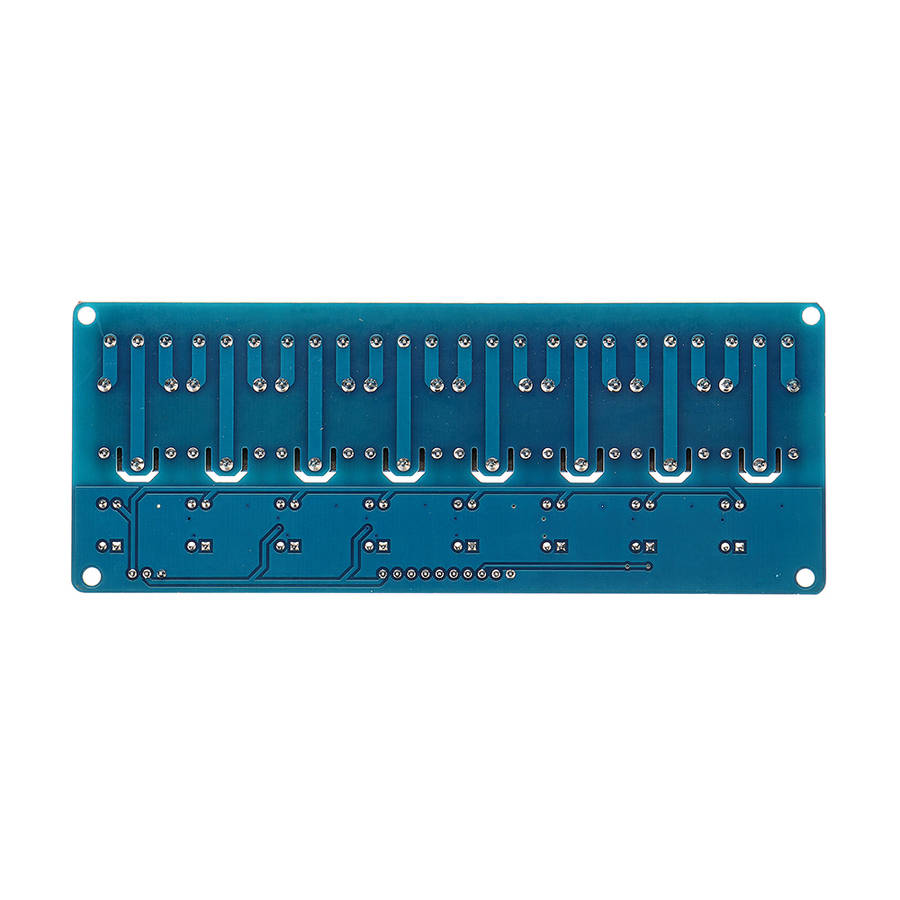

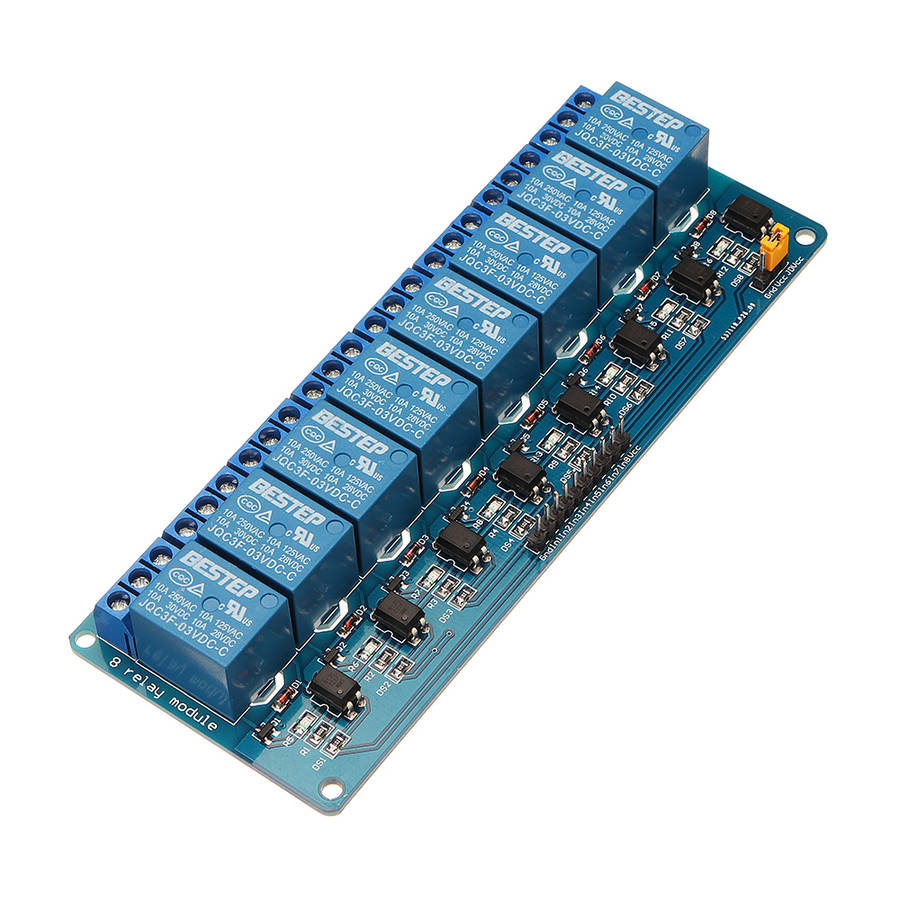

8 Channel 3.3V Relay Module Optocoupler Driver Relay Control Board Low Level BESTEP for Arduino - pr
New
20 were available
R511.00
0% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 12 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:
Replacement Guarantee:
7 Days: We stand by this guarantee
Get it now, pay later
Product details
Condition
New
Location
International
Bob Shop ID
656998597

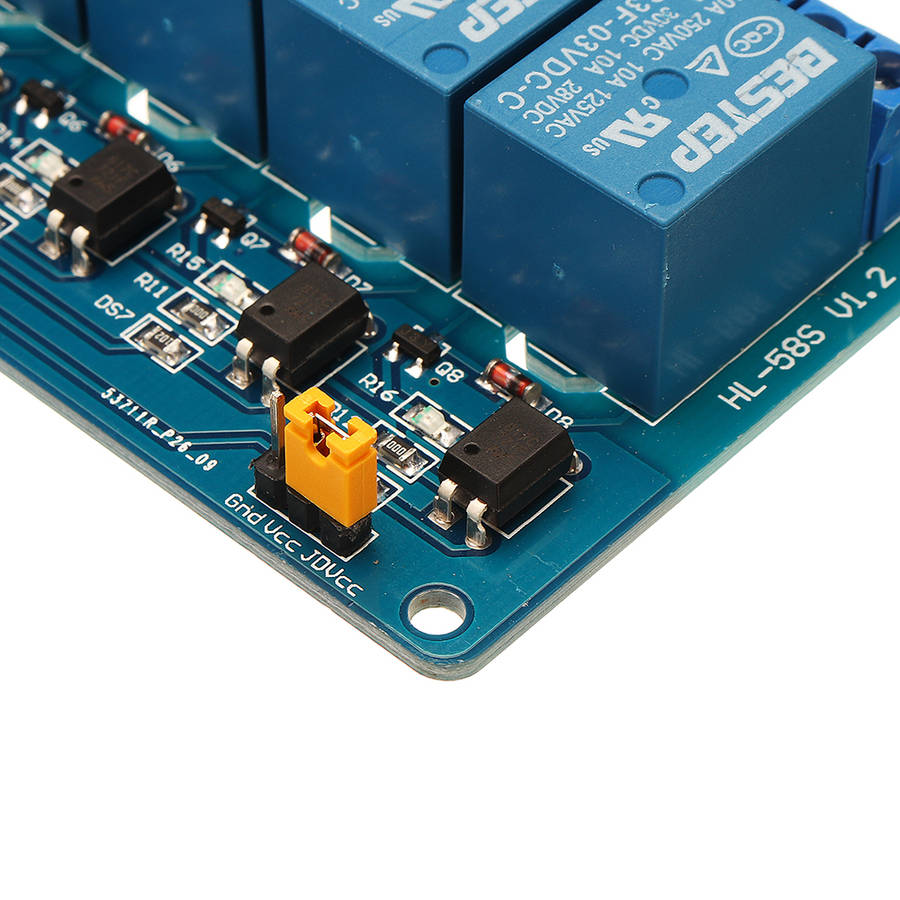

Feature: 8 relay output module, relay output contact 250A 10A. Input IN1, IN2, IN3, IN4, IN5, IN6,IN7,IN8signal line low level effective. VCC, GND power input, relay can be supplied separately to relay power input terminal JD-VCC.

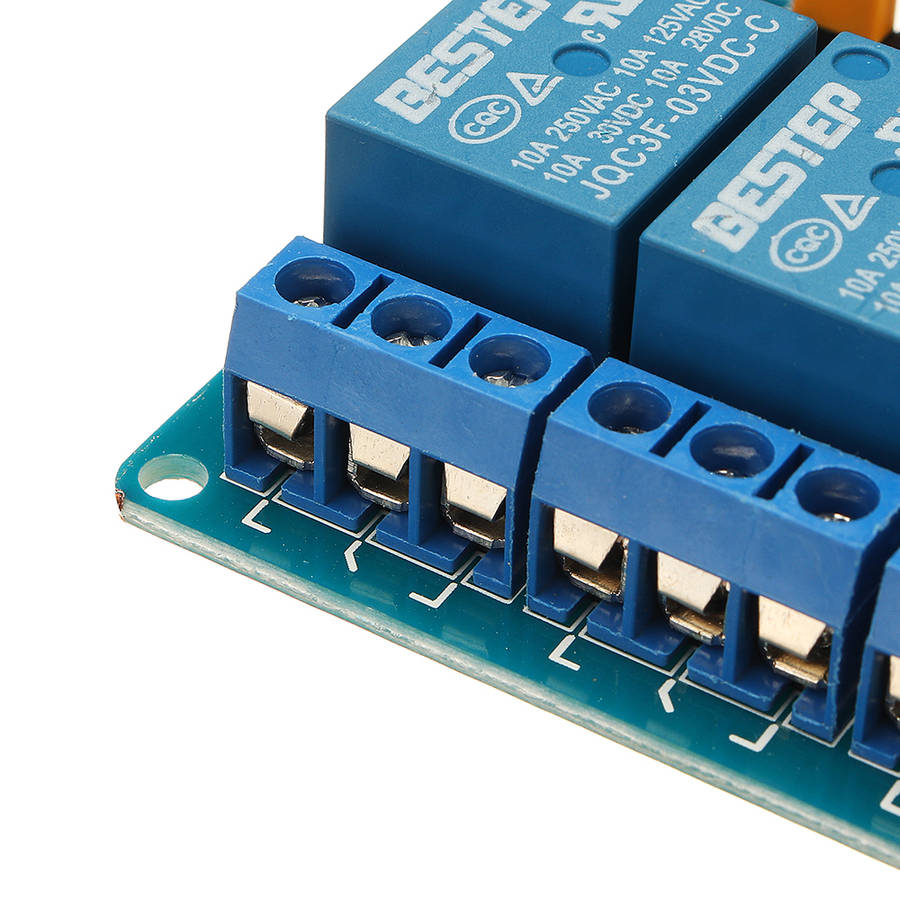

Description : 1. Maximum load on normally open pin: AC 250V/10A, DC 30V/10A. 2. Trigger current 5mA; 3. Power indicator light (green), relay status indicator light (red); Module interface specifications: 1. DC+ : DC power supply positive pole 2. DC- : DC power supply negative pole 3. CH1~CH8 : relay signal triggering pin Relay output: 1. Normally closed pin (NC1~NC8) : relay normally close pin 2. Common pin (COM1~COM8) : relay common pin 3. Normally opened pin (NO1~NO8) : relay normally open pin Package Included:
