Features
Support AHD-M series front-end real-time encoding;
Support VGA, HDMI HD output;
Support XM Cloud technology, easy to achieve a variety of network penetration, one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate;
Support various mobile monitoring:(IOS, Android).
Support multiple web browsers(IE,Chrome,Firefox,Safari);
Support more than 20 languages(English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese, Traditional Chinese, Turkish, etc.), no nation boundaries;
perfect protection circuit, unique triple watchdog function
Supporting web, CMS, center platform management software MYEYE, provide SDK development.

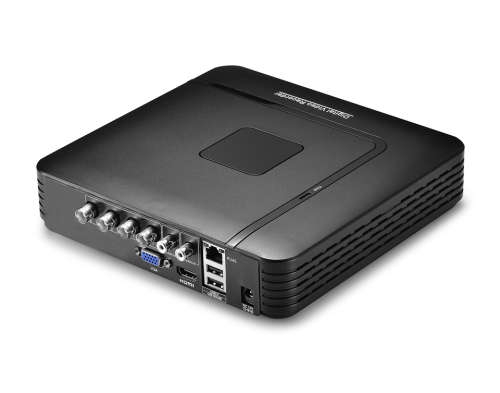

4CH AHD-DVR Specification
Model
A1004NS
System
Main processor
Huawei Hi 3520D
Video
video compression
H.264(High Profile);
Encode
4*AHD-M/4*AHDNH
Decode
1*AHD-M/1*AHDNH
Multi-mode
input
Pure AHD:4*AHDNH;4*AHD-M
Pure IP : 4*1080P;8*960P
Mixed : 2*AHDM+2*720P
Audio
Audio compression
G.711A
Intercom
support
Recording and Playback
Record mode
Manual>alarm>motion detection>timing
Playback Channels
4 (pure local input mode)
Storage and backup
Space occupation
960H:12~20G/ day*channel
720P:20G/ day*channel
audio:691.2M/ day*channel
Backup mode
Network backup/USB HDD/ USB writer/SATA writer
Interface
Video input
4 BNC
Video output
1ch VGA,1ch HDMI
Audio input
1CH RAC
Audio output
1CH RAC
Alarm input
No
Alarm output
No
Network interface
RJ45 10M/100M Adaptive Ethernet port
PTZ control
Have NO RS485 ;Don't support PTZ function
USB
2 USB ports
Hard disk
1 SATA(Each maximum support 4T )
Wireless
null
Other
Power
12V/2A
dimension
255mm(length)* 225mm(width)* 45mm(height)

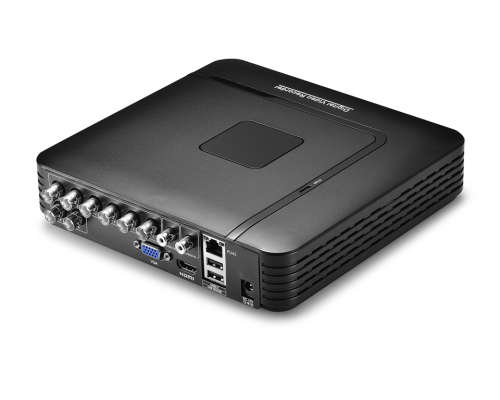

8CH AHD DVR Specification
8CH is 5 in 1 Version which supports TVI CVI AHD IP and Hybrid Mode !
Model
A1008NHS
System
Main processor
Huawei Hi 3520
Video
video compression
H.264(High Profile);
Encode
8*AHD-NH
Decode
8*AHD-NH
Multi-mode
input
Pure Analog:8*AHDNH; 4*AHDNH;
Mixed:4*AHDNH+4*960P(Network);
Pure Network:16*1080P; 4*5Mb
Audio
Audio compression
G.711A
Intercom
support
Recording and Playback
Record mode
Manual>alarm>motion detection>timing
Playback Channels
4 (pure local input mode)
Storage and backup
Space occupation
960H:12~20G/ day*channel
720P:20G~30G/ day*channel
audio:691.2M/ day*channel
Backup mode
Network backup/USB HDD/USB writer/SATA writer

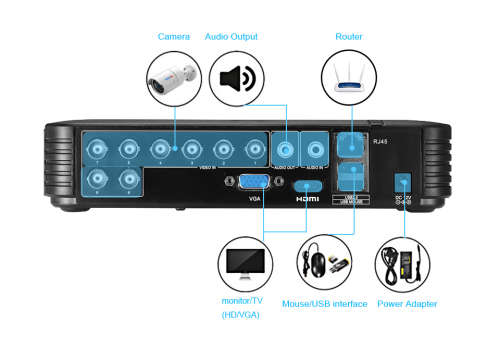

Interface
Video input
8 BNC
Video output
1ch VGA,1ch HDMI
Audio input
1CH RAC
Audio output
1CH RAC
Alarm input
No
Alarm output
No
Network interface
RJ45 10M/100M Adaptive Ethernet port
PTZ control
Have no RS485 ;Don't support multiple PTZ protocols
USB
2 USB ports
Hard disk
1 SATA(Each maximum support 4T)
Wireless
null
Other
Power
12V/2A
dimension
255mm(length)* 225mm(width)* 45mm(height)
