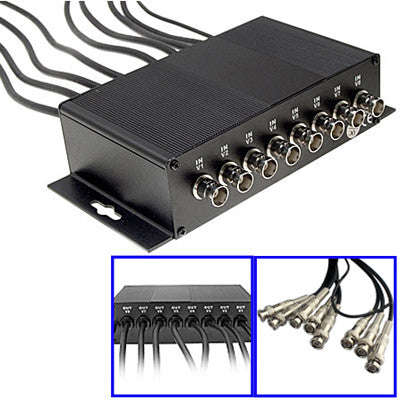

8 Channel CCTV BNC Lightning Arrester Surge Protector Device (CoaxJK/ V8)(Black)

This item is sold brand new. It is ordered on demand from our supplier and is usually dispatched in 10 to 15 working days.

We urge you to please read shipping details before placing your order.

---------------------------------------

Description:

1) 8 Channel CCTV BNC Lightning Arrester Surge Protector Device.

2) CCTV Lightning Arrester adopt internal standard BNC interface(male to female).

3) Suitable for coaxial communication equipment surge protection such as cable TV

Satellite TV receive minitor system etc.

4) This 8CH Surge Protector can protect the lighting response of coaxial cable or equipment damage caused by other high surge voltage.

5) CCTV Surge Protector is used to protect the indirect thunder influence or other instantaneous over voltage surge.

Specifications:

1) Working Voltage: 5V

2) Max Working Voltage: 10V

3) Nominal Discharge Current(8/20us): 5KA

4) Max Discharge Current(8/20us): 10KA

5) Voltage Limit: 15V

6) Data Transfer Rate: 100Mbps

7) Insertion Loss: 0.2db

8) Response Time: 1nS

9) Interface Type: BNC

10) Protection Method: Line to line line to ground

11) Working Temperature: -25-/+65C

12) Humidity: ~95% 25-30C

13) Test Standard: IEC61643-21: 2000.

14) Cable length: Approx. 400mm.

15) Size: Approx.168x80x40mm

---------------------------------------
