***Please note housing of cameras make differ slightly to picture. Powersupplies is provided with the cameras, 1 amp per camera*** We also provide all the connectors needed, you just need to buy the cable (either from us, or at your local electronics stores. On short distance, under 60m distance per camera, RG6U (the cable you use for your satelite dish to connect to the DSTV decoder) will suffice. Average price in market per 100m is R149. We have RG59 industrial CCTV cable (thick copper core) available at about R349 per R100m. Please note this includes the power cable as well. Type RG59 Powax into google to see an explanation of the cable. We prefer not to ship this cable since it is much heavier than the cheaper cables being sold.

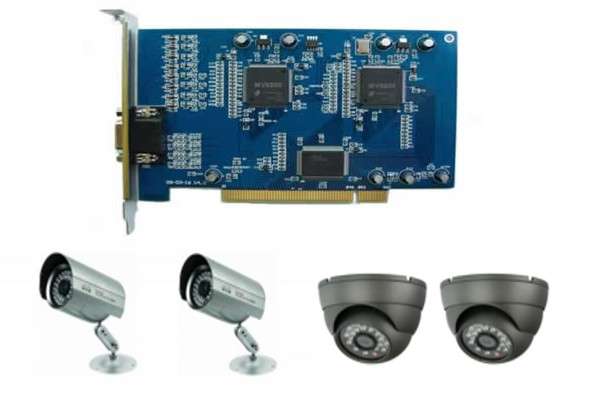

(Total system below consists of an 8 channel DVR card and a total of 4 Sony CCD cameras (2 for indoor and 2 for outdoor use)
OUR CAMERAS ARE ALL CCD AND NOT CMOS. WE DO NOT DEAL WITH ANALOGUE CMOS CAMERAS DUE TO BAD QUALITY FROM CHINA(THEY HAVE VERY BAD NIGHT VISION/LIGHT CONTROL) AND TEND TO NOT LAST AS LONG AS CCD CAMERAS. ALSO, CMOS CHIPS ARE USUALLY UNBRANDED/UNREGULATED, E.G. OEM PRODUCTS WHICH, AGAIN, WE STATE CLEARLY, WE DON'T DEAL WITH UNBRANDED PRODUCTS.
50m Infared 540TVL HD Sony CCD Pipe Cameras with bracket(2 included with DVR card)
-50m Max Infrared
-Sony CCD Pipe Camera (weatherproof for outdoor use)
-3.6mm Lens (wide angle for best coverage)
-12VdC 1amp max
-BNC input
-Sunshield
-540TV Lines
30m Infared Sony CCD Dome Cameras(2 included with DVR card)
-20m Max Infrared
-Sony CCD Dome Camera (indoor use)
-3.6mm Lens (wide angle for best coverage)
-12VdC 1amp max
-BNC input
-420TV Lines
DVR Card for PC (Can support 8 channels Video, 4 channels Audio)
-3G Mobile phone view, IE view(DDNS)
-Router setting is not needed(UPNP)
-DUAL-STREAM ÂÂÂÂÂeven faster remote view
-MV9200 chipset 10 bit 8 channel video decoder
-Adopt advanced digital video processing arithmetic, auto de-noise, high resolution & quality
-8 channel video input, 4 channel audio input
-Support 32 channel real time compressing and displaying maximum.
-Display Rate: 200 FPS(PAL) 240FPS(NTSC)
-Record Rate 200 FPS(PAL) 240FPS(NTSC)
-Support Video Resolution: 352 x 288, 528 x 384, 704 x 576
-Compression Format: H.264.
-Compression Ratio: 50 –120MB per hour per channel
-Support OSD timely cover,motion detection recording
-Network Protocol :TCP/UDP,
-Support IE browser,client site software,built-in DDNS, VNN
System Requirements
-CPU: Intel Celeron D 2.66G or above
-Mainboard: Intel series chipset mainborad, and most AMD/VIA chipset mainboards.
-RAM: 256MB or above (512MB needed for 24 channels)
-VGA: Integrated display card or above
-Power Supply: 300W or above (DC output: 3.3V, 27A)
-OS: Windows 2000 / XP/ Vista /Windows 7 32bit
-DirectX Version: 9.0 or above
