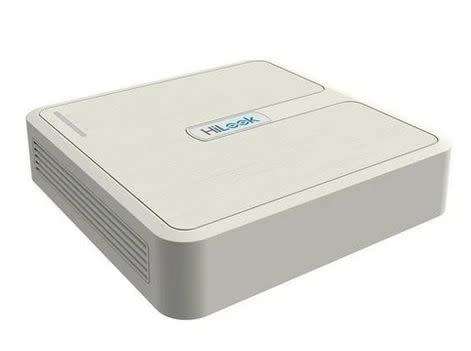

8 Channel DVR HiLook by Hikvision 8ch Turbo HD - DVR

Hard Drive NOT Included

Video/Audio Output
HDMI/VGA Output:
1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:
When 1080p Lite mode not enabled: 720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate:
Main stream:
When 1080p lite mode enabled:
1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps;
CIF@25fps (P)/30fps (N)
When 1080p lite mode not enabled:
For 720p stream access:
720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
For SD stream access:
WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video Bit Rate:
32 Kbps ~ 4 Mbps
Stream Type:
Video/Video&Audio
Audio Output:
1-ch RCA(Linear, 1kΩ)
Dual Stream:
Support
Synchronous Playback:
8-ch

Network management
Remote connections:
128
Network protocols:
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS

Hard Disk Driver
Interface Type:
1 SATA Interface
Capacity:
Up to 6 TB capacity for each disk

2 USB 2.0 Interfaces

External Interface
Network Interface:
1; 10M / 100M self-adaptive Ethernet interface
USB Interface:


Video/Audio Input
Audio Input:
1-ch
Video Compression:
H.264,H.264+
Analog Video Input:
8-ch
Analog and HD-TVI video input:
Support HDTVI input: 1080p25, 1080p30, 720p25, 720p30
Supported camera types:
Support AHD input: 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 1080p25, 1080p30, 720p25, 720p30
Support CVBS input
IP Video Input:
2-ch Up to 960P resolution
Video Input Interface:
BNC (1.0 Vp-p, 75Ω)
Audio Compression:
G.711u
Audio Input Interface:
RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:
1-ch RCA(2.0Vp-p, 1kΩ)
