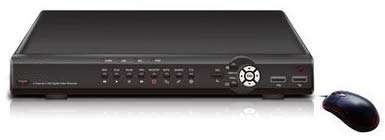

8-Channel H.264 Network Digital Video Recorder (2CH × D1 +6CH × CIF)
Video Compression: H.264; Video System: PAL/NTSC
Video input/output: BNC 8-channel Input and 1-channel BNC Output and
1-channel VGA Output; VGA Resolution: 1024x768,1280x1024
Audio input/output: RCA 1-channel input/ RCA 1-channel output
ÂÂDisplay resolution: D1 704 x 576/CIF 352×288 (PAL); D1 720 x 480/CIF 352×240 (NTSC)
ÂÂDisplay frame rate: 200fps(PAL);240fps (NTSC) (shared by 8 cameras)
ÂÂRecording resolution: D1 704×576 /CIF 352×288 (PAL); D1 720×480 /CIF 352×240 (NTSC)
ÂÂRecording frame rate: D1@50fps/ CIF@200fps (PAL); D1@60fps/CIF@240fps(NTSC)
ÂÂPlayback resolution: 1x D1
ÂÂRJ-45 Ethernet connector; Support Static, Dynamic IP and Support TCP/IP, PPPOE, DHCP, DNS
DDNS, SNTP, UPNP
Support Internet Explorer, Mobile phone and special client software
ÂÂWith RS485 x 1, 2 × USB, 1 × IR Controller , 1 × USB2.0 mouse
ÂÂSupport PELCO-P&PELCO-D PTZ control
ÂÂSupport 1 SATA Hard Disk inferface (2TB in total)
ÂÂMulti-language OSD
ÂÂDimension: 354x230x45mm (LxWxH) Weight:3.0Kg
Please note that a 1TB hard drive is included. Includes power supply, mouse and remote control for the DVR.
