Product information

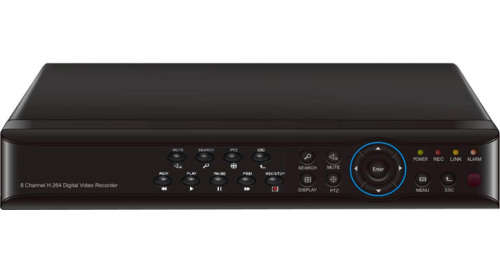

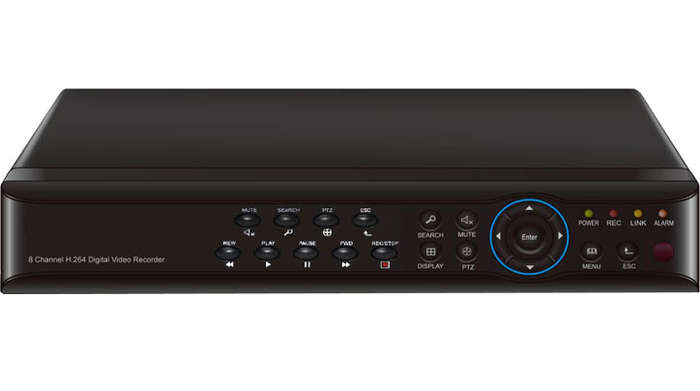

8 Channel H.264 IP Networking Digital Video Recorder DVR
H.264 TRIPLEX REAL TIME PROFESSIONAL DVR
GRAPHICAL INTERFACE
Included Client software/Support Internet Explorer 7 or above / Chrome/ Firefox
Support Dual coding system
Email function
Support Android, Windows mobile, symbian, iPhone, Blackberry
VGA port for LCD monitor
Operate by USB Mouse or Remote Control (Both included)
+
This Supreme stand alone H.264 8 Ch DVR System is amazing.
Motion detection, sensor trigger Alarm, Audio, remote monitoring, PTZ, Alarm
Supports 8ch real time recording, Network transmission, and playback simultaneously, Adopts the standard Main profile H.264 compression technology
Support dual-stream transmission for all channels
Support Multiplex operation: live, record, playback, backup, network transmission
Mobile phone surveillance
Support backup with USB Flash Disk, Movable hard disk, USB writer, Network
Support 1channel BNC output, 1channel. VGA output
Support Email alarm
Supports HDD up to 2TB (not included)
Operating System: Embedded LINUX Operating System
Video Input: 8 Channels BNC
Video Output: 1 Channel BNC, 1 Channel VGA(1280*1024)
Audio Input/Output: 1 Channel RCA/1 Channel RCA
Intercom :1 Channel RCA Input＿¿¿¿1 Channel RCA Output
Display Picture: 1CH/4CH/9CH
Digital Zoom:ã¿¿¿¿¿¿¿¿PIP Supports
Multiplex Operation Live\display\Playback\Recording\Backup\
Mobile phone Surveillance \Network simultaneously
Display Resolution: PAL:D1(704*576),NTSC:D1＿¿¿¿704*480＿¿¿¿
Recording Mode Manual\Timer\Motion Detection\Alarm\Remote
Recording Frame Rate PAL:D1@100fps,HD1@100fps,CIF@100fps
NTSC:D1@120fps,HD1@120fps,CIF@120fps
Recording Resolution PAL:D1(704*576),HD1(704*288), CIF(352*288),
NTSC:D1(704*480),HD1(704*240),CIF(352*240)
Recording Playback 1/4/8 channel playback simultaneously＿¿¿¿Optional playback channel＿¿¿¿
Recording Backup USBã¿¿¿¿¿¿¿¿Moved Hard Diskã¿¿¿¿¿¿¿¿USB Writerã¿¿¿¿¿¿¿¿Network
Network transmission 8Channels real-time Network transmission with CIF resolution
Recording Play Special player, Support AVI file format conversion
JPEG capture function support,3M Pixels@10fps
Action with Alarm Support
Email Alarm Send pieces to the designated email
SPOT Alarm pop-up Support
Video Mask Alarm Support
PTZ Supports PTZ preset ,Cruise Control and PC client port setup
PTZ protocol PELCO-D,PELCO-P
HDD Support 1 SATA HDD＿¿¿¿ capacity to 2T
HDD Remain Time Hint Support
Network and Protocol 1 RJ-45 10/100M via Ethernet, Support TCP/IPã¿¿¿¿¿¿¿¿PPPOEã¿¿¿¿¿¿¿¿DHCPã¿¿¿¿¿¿¿¿DNSã¿¿¿¿¿¿¿¿DDNSã¿¿¿¿¿¿¿¿SNTPã¿¿¿¿¿¿¿¿NTPã¿¿¿¿¿¿¿¿UPNP
IE Browser Windows XP\Vista\Win 7\Mac OS,IE6.0-9.0\Firefox\Chrome\Opera\Apple Safari
Client Software Support
CMS Support(One software for at most 100 DVRs )＿¿¿¿Free supply to use
Dual Stream Support＿¿¿¿Main and secondary interchange＿¿¿¿
Group play At least Support five users online access
Privacy Mask Support
S.E.Q Support single channel and grouping S.E.Q
Watermark Support
Mobile Phone Surveillance Support Windows\ Symbian\ iPhone\Blackberry Operation System
Mouse Interface USB2.0
Backup interface USB2.0
Remote Controller Support＿¿¿¿Supports controller ID matching＿¿¿¿
User Authority Support Multi-level user authority distribution
Date and time Format adjustable
DST Support
