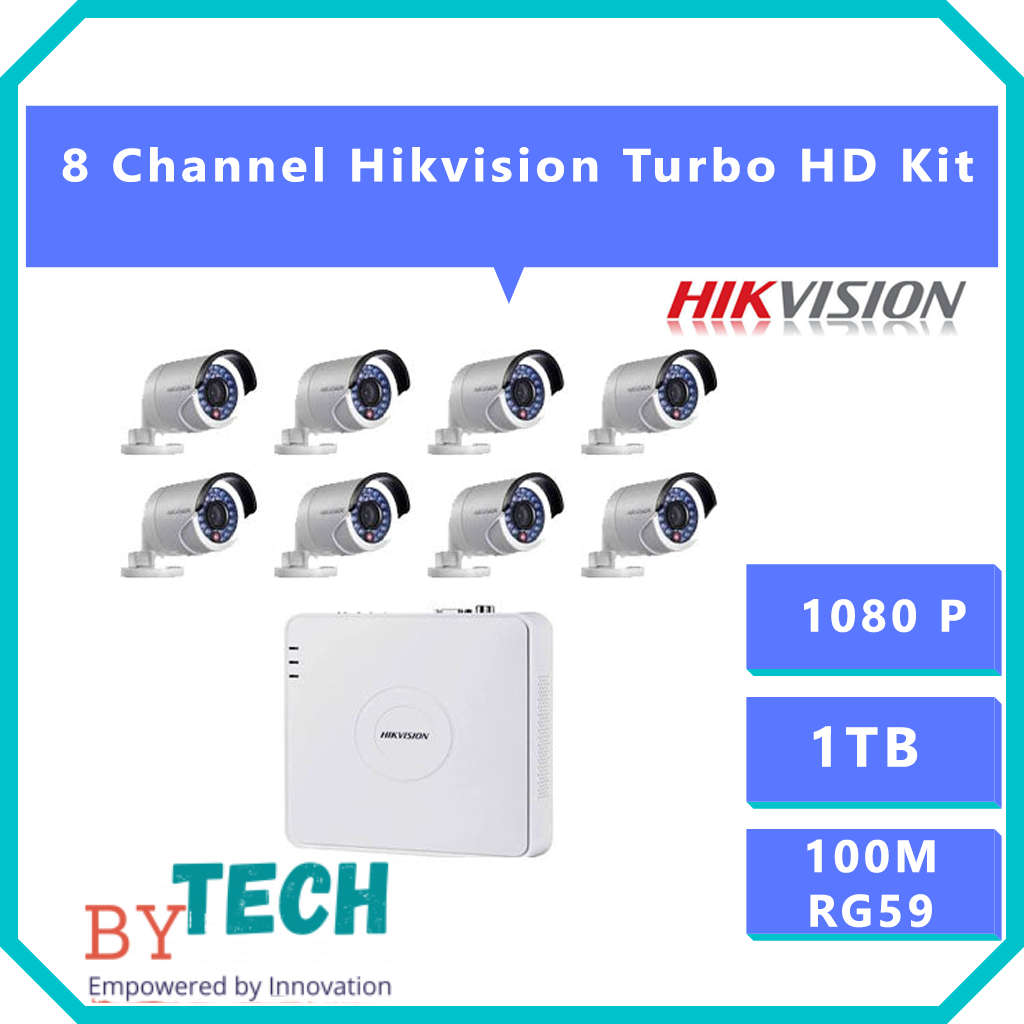

8 channel HikVision Turbo HD Kit - 20M Night vision - Standard kit,cctv,cctv,cctv,cctv,cctv

Kit Includes

1 x Hikvision 8-Ch TURBO HD Embedded DVR

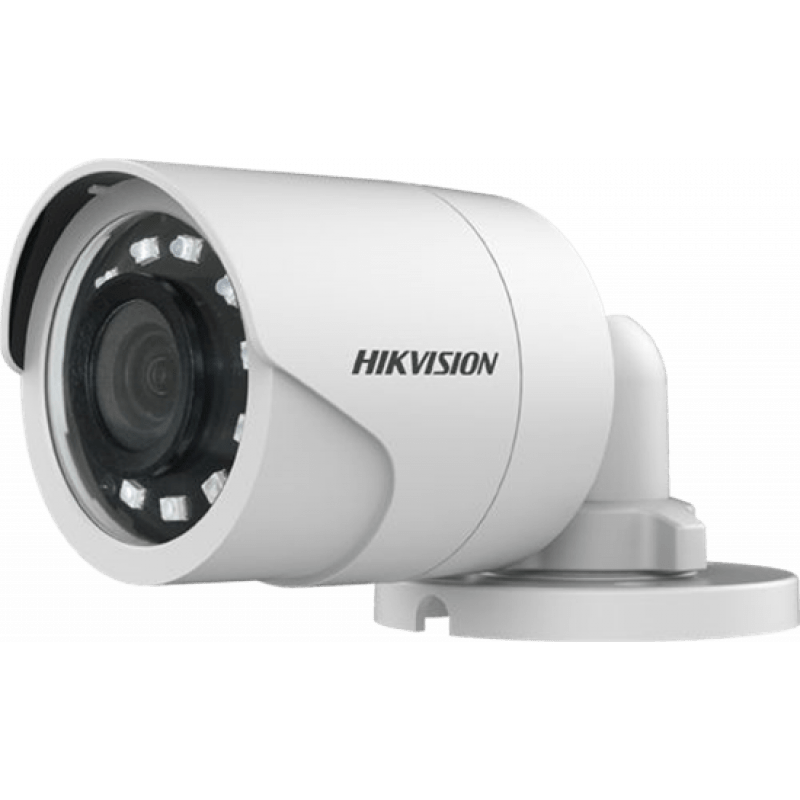

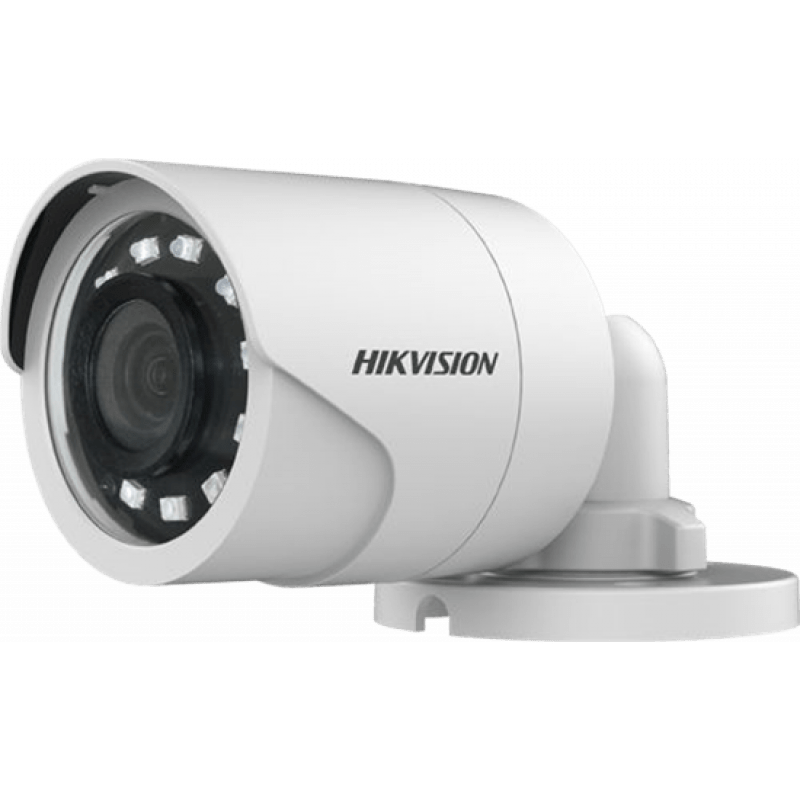

8 x Hikvision HD1080P Turbo HD Bullet Camera.
1 x 1TB SATA Hard Drive
16 x BNC Plug
8 x DC plugs
1 x 12VDC 10A Power Supply
1 x 100m Cable RG59 Co-Axial

Key Features

•

•  2 Megapixel high-performance CMOS
•  Analog HD output, up to 1080P resolution
• True Day/Night, Smart IR
• Smart IR, up to 20m IR distance
•  IP66 weatherproof

Angle of View: 82.2(3.6mm)

Features and Functions

With Smartphone and PC remote viewing

H.264 /H.264+& Dual-stream video compression

Support both HD-TVI /analog and AHD cameras with
adaptive access
Full channel recording at up to 1080P lite resolution
HDMI and VGA output at up to 19201080P resolution
Long transmission distance over coax cable
Support 8-ch synchronous playback at 720P resolution

• Video/Audio Input
• Audio Input: | 1-ch
• Video Compression: | H.264,H.264+
• Analog and HD-TVI video input: | 8-ch BNC interface (1.0Vp-p, 75 )
• Supported camera types: | Support HDTVI input: 1080p/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz,
• Support AHD input: 720P/25Hz, 720P/30Hz,
• support CVBS input
• Video Input Interface: | BNC (1.0 Vp-p, 75)
• Audio Compression: | G.711u
• Audio Input Interface: | RCA (2.0 Vp-p, 1 k)
• Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 K) (using audio input)
• Video/Audio Output
• HDMI/VGA Output: | 1920 1080 / 60 Hz,1280 1024 / 60 Hz, 1280 720 / 60 Hz, 1024 768 / 60 Hz
• Recording resolution: | When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF;
• When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
• Frame Rate: | Main stream:
• When 1080p Lite mode not enabled:
• For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
• When 1080p Lite mode enabled:
• 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
• Video Bit Rate: | 32 Kbps ~ 4 Mbps
• Stream Type: | Video/Video&Audio
• Audio Bit Rate: | 64kbps
• Dual Stream: | Support
• Playback Resolution: | 1080p lite/720p/WD1/4CIF/VGA/CIF
• Synchronous Playback: | 8-ch
• Network management
• Remote connections: | 128
• Network protocols: | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
• Hard Disk Driver
• Interface Type: | 1 SATA Interface
• Capacity: | Up to 6 TB capacity for each disk
• External Interface
• Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface

USB Interface: | 2 USB 2.0 Interfaces
