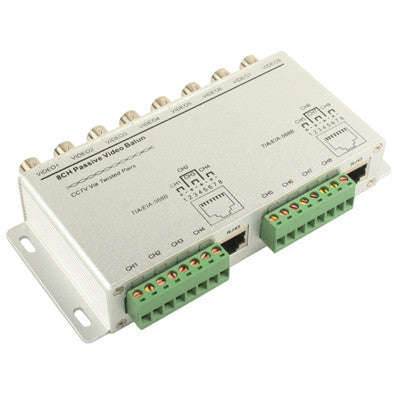

8 Channel Passive UTP Video Balun

This item is sold brand new. It is ordered on demand from our supplier and is usually dispatched in 10 to 15 working days.

We urge you to please read shipping details before placing your order.

---------------------------------------

Description:

1) Adopt differental signal transmissin with excellentanti-jamming ability

2) Save project wire expenses each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit of video signal

3) Full-motion CCTV video at distances up to 330m when used with any passive UTP video transceiver

4) Up to 1500m with any active UTP video receiver

5) No power required

6) Built-in transient suppression protection

Technical Specification:

1) Frequency response: DC-8MHz

2) CMRR (Common Mode Rejection Ratio): 60DB

3) Impedance: BNC ternimal: 75 Connection terminal: 100

4) Working temperature: -10C - 70C

5) Storage temperature: -30C - 70C

6) Applicable to NTSC PAL SECAM and CCIR systems.

7) Power supply: DC 12V (Max: 50mA)

8) Characteristic impedance: 100 20

9) DC loop resistance: 18/100m

10) Differential capacitance: 62pf/m (maximum)

11) Size: 157x65x29mm

12) Weight: 167g

---------------------------------------
