8 Channel Relay Module 24V with Optocoupler Isolation Relay Module For AVR 51 P

Package weight: 0.11 kg

Description:

1. The module meets the international security standards, and there are isolation grooves between the control area and the load area.

2. Adopt double-sided FR-4 circuit board design and high-end patch technology.

3. Use Songle genuine relay control;

4. With relay action instructions, suction and closure are bright, disconnection is not bright;

5. When there is a low-level signal at the signal input, the common terminal and the normal beginning will be connected.

6. Relays can directly control all kinds of equipment and loads.

7. There are 8 open and 8 closed contacts.

8. Blue KF301 terminal connection control line is more convenient.

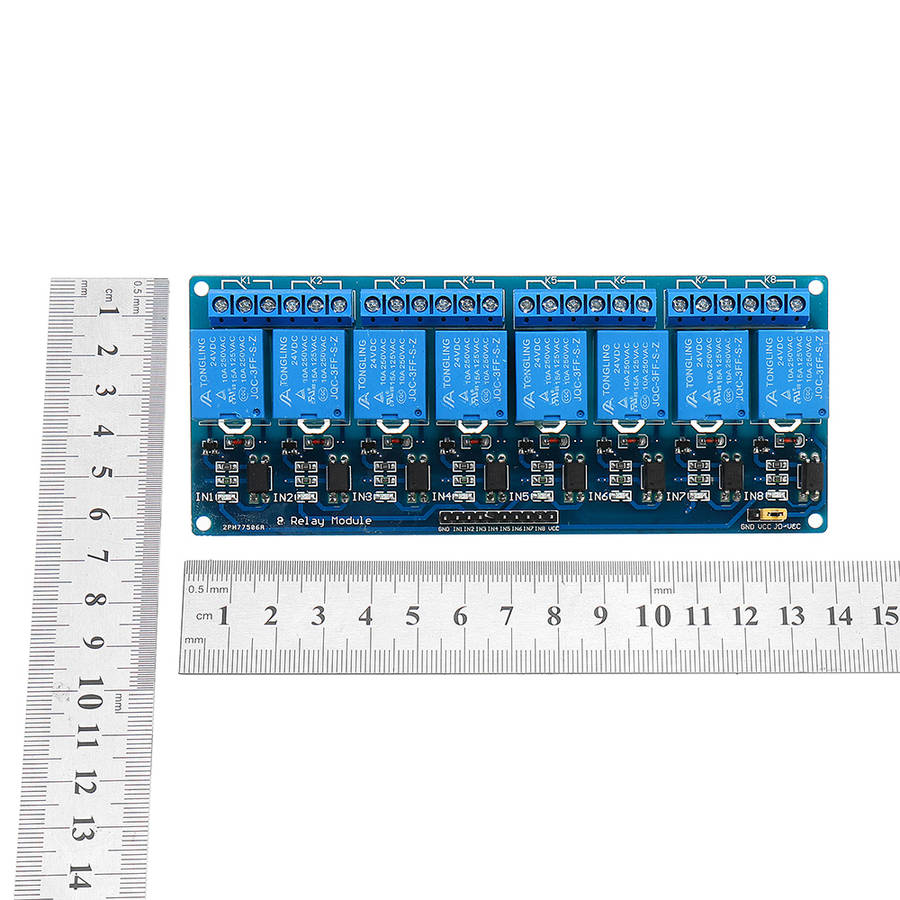

9. Module size: 138m * 56mm * 18.5mm (length * width * height), net weight: 240g

10. There are four fixed bolt holes with 3.1 mm spacing of 131 mm*49.5 mm.

11. The finished product passes 100% functional test and stability test.

Module interface:

VCC: Connect 24V power supply positive pole

GND: Connect negative pole of 24V power supply

IN1-IN8: Signal trigger, low level effective

Relay Output: There are 24-wire interfaces, all of which can be directly connected to lead out, convenient for users to use.

NO1-NO8: Relay usually opens interface. Relay is suspended before switching on and after switching on, COM1-COM8 relay public interface is short connected with COM.

NC1-NC8: Normally Closed Interface of Relay, Short Connection with COM before Relay Suction, Suspension after Suction

Package Included:
1 x 8 Channel 24V Relay Module
