Product details

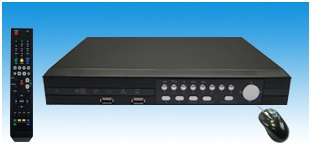

8 Channel Standalone DVR
Specifications:
Model: LS-9008H
Compression Format: H.264
Operating System: Embedded LINUX Operating System
User Interface: 16-bit true color graphical menu, support for USB mouse operation, with menu notes
Preview resolution: 720 x 480 ( NTSC ), 704 x 576 ( PAL ) ; Playback resolution: 4 x D1
Real time recording support: CIF:352×240 with 240 Fps (NTSC); 352×288 with 200 Fps (PAL)
D1:720×480 with 120 Fps (NTSC); 704×576 with 100 Fps (PAL)

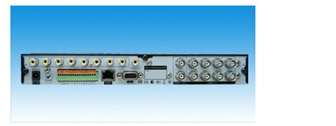

Video Input/Output: BNC 8CH In/ 1CH BNC Out/ 1CH VGA Out
Audio Input/Output: RCA 8CH In/ 1CH Out
Alarm Input/Output: Alarm 8CH In/ 1CH Out
Monitor Screen: 1 / 4 screen display, PAL D1: 704*576
Local Playback: 8CH synchronized playback
Motion Detection: PAL 13*10 130; NTSC 13*8 104 4 grade available
Communication Interface: 1 RJ-45 Ethernet connector, Static, Dynamic IP and DDNS , Support Internet Explorer and special client software
Hard Disk: 1 SATA Hard Disc interface (Not included)
USB port: 2pc (Mouse port and USB2.0 port)
VGA port: 1pc(optional) Resolution: 800×600,1024×768
Special Feature: Support remote view by Mobile phone
Power Supply: 19V/3A
Working Temperature: 0-55
Working Humidity: 10-90ÂÂÂ
Dimensions: L280 x W229 x H43mm
weight 3.0kg
Please click on the following link for all the support documentation (manuals)
http://www.fileden.com/files/2010/1/19/2730530/4%20Channel%20standalone%...
