8 CHANNEL WIRELESS NVR - E-XS5

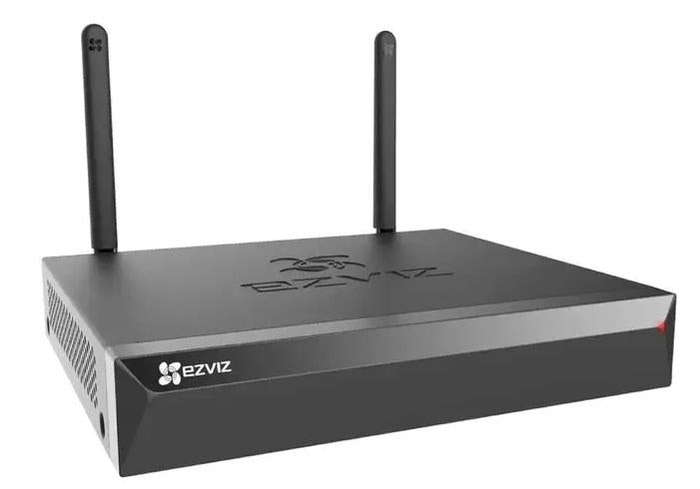

Ezviz X5S Wireless NVR with HDMI & VGA Outputs
Reliable, Easy Storage For Your Security System
Specifications
Model: CS-X5S-R100-8W
IPC Access Capability
Wireless/Wired IPC Access Capability: 3K x 8
Wired IPC Access Capability: 3K x 8 (X5S-8W)
Network Parameters
Antenna Number: 2
Max Wireless Range_ 100m
Radio Frequency: 2.4G
Ethernet Port: One 10/100M Adaptable Ethernet Interface
Required Access Bandwidth:50 Mbps/100 Mbps
Video Output
VGA: 1 Channel (Identical to HDMI Output) Resolution up to 1920 x 1080/60Hz
HDMI: 1 Channel Resolution up to 2592 x 1944/30HZ
Audio/Video Codec
Recording Resolution: 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF
Video Encoding_ H.265, H.264
Decode Playback: Supports 8 x 3K
Video Recording Management
Video Recording Mode_ Manual Video Recording; Motion Detection Recording
Scheduled Video Recording; Event Triggered Recording
Backup Mode: Hard Disk backup, Internet Application Backup
Playback Mode: Instant Playback ; Normal Playback; Event Playback
Tag Playback; Log Event Playback
Open Protocol
Open Protocol Support HIKVISION, ONVIF (V.2.5)
HDD
Interface Type_ One Built-In SATA Port
Capability: Supports 1TB to 8TB 3.5 Inch HDD
External Interface
Audio Input/ Output: Not Support
Hardware Reset: Supports
USB2.0 Interface: 2
Dimensions
Product Dimensions: 235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch)
Packaging Dimensions: 387 × 362 × 75 mm (15.2 × 14.3 × 3 inch)
Power Supply
DC: 12V/1.5A
Consumption
Standby Status: =8W
Weight
Net Weight: 932 g
In The Box
X5S NVR × 1
Power Adapter × 1
Mouse × 1
Screw Kit × 1
Regulatory Information × 2
Quick Start Guide × 1
Certifications: CE / UL / RoHS / WEEE / REACH
