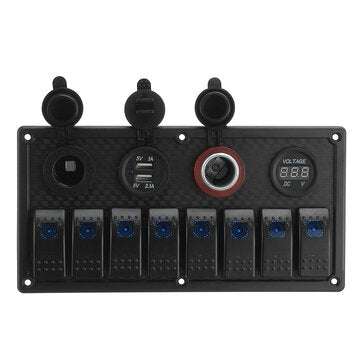

8 Gang Rocker Switch LED Panel ON-OFF Toggle Circuit Breaker Waterproof For Marine ... (COLOR: BLUE)

SELECTED OPTION:
COLOR: BLUE

for more options in this item.

Descripition:

1. Can be mounted vertically or horizontally.

2. The four red wires: connect the cathode of the battery.

3. The black wire: connect the anode to the storage battery.

4. The blue wire: connect the cathode of the battery.

5. The yellow wire: connect the anode to the storage battery.

6. Eight sheets of copper plates: the last generator positive connection.

7. Switches available: fog light, spot light, side light, roof light, zombie light, driving light, etc.

8. With rubber seal-cap to keep it water-tight,best for marine.

9. Overload protection by Circuit breaker, splashproof,anti-corrosion.

10. Suitable for both 12V and 24V systems Panel is pre-wired, Includes 6x Stainless Steel Screw.

Specification:

Name:8 Gang LED Rocker Switch Panel

Color:Blue/Red/Green

Material:ABS + PC + aluminum

Input Voltage:DC 12V / 20A, 24V / 10A

Digital Voltmeter Range:6V - 30V

Cigarrette Socket:12V / 24V

Dual USB Charger Socket:

Input:DC 12-24V

Output:DC 5V 2.1 A, 5V 1A

Product Dimension: (9.25x4.72 x3.54) inches / (23.5 x12x9) cm

Note

-Please allow a bit error due to manual measurement. please make sure you do not mind before you bid.

-The color may have different as the difference display, please understand.

Package Included

1 X LED Rocker Switch Panel

1 X Out Easier

1 X Plastic Mounting Frame

2 X Sticker Label

6 X Screws
