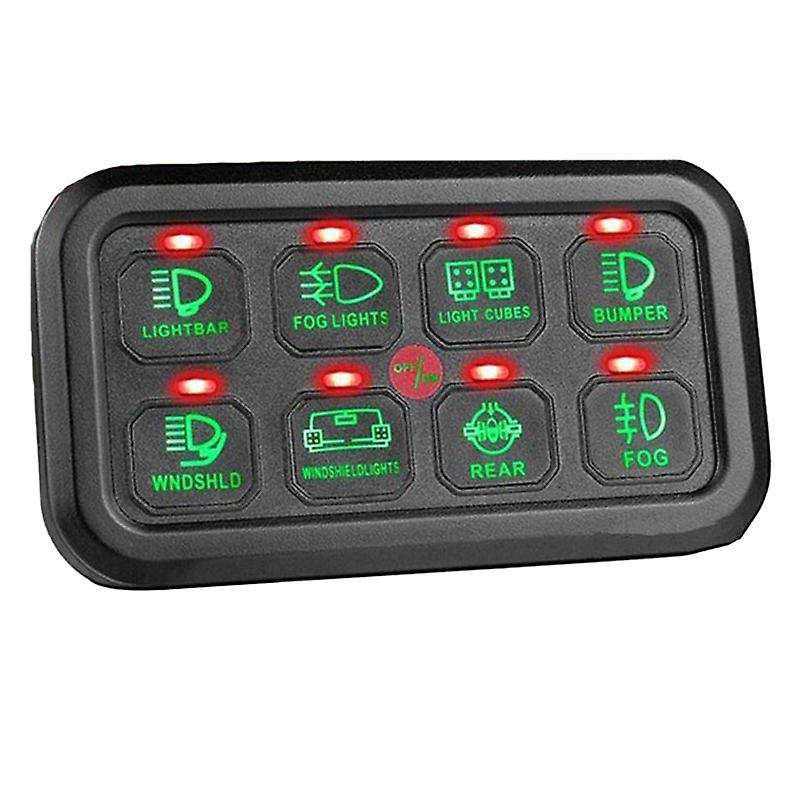

8 Gang Switch Panel Electronic Relay System Light Bar Switch Panel for Truck Car Offroad UTV Caravan

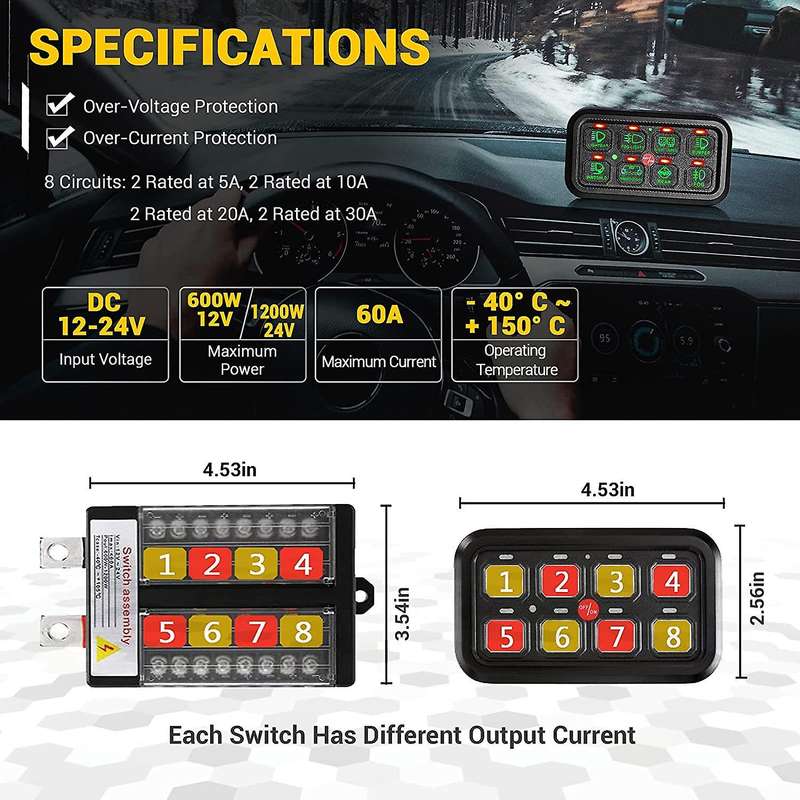

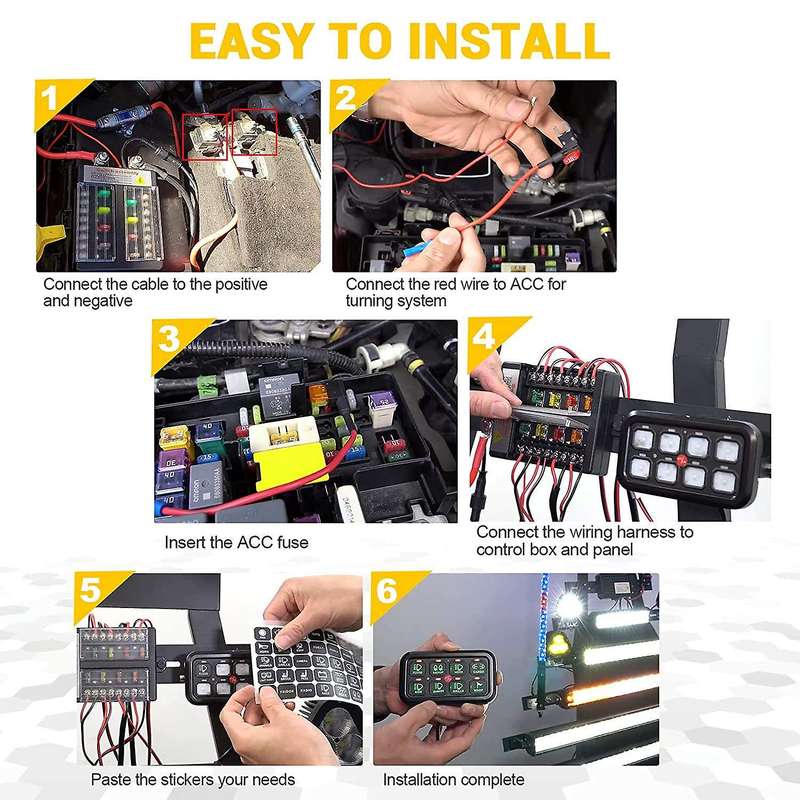

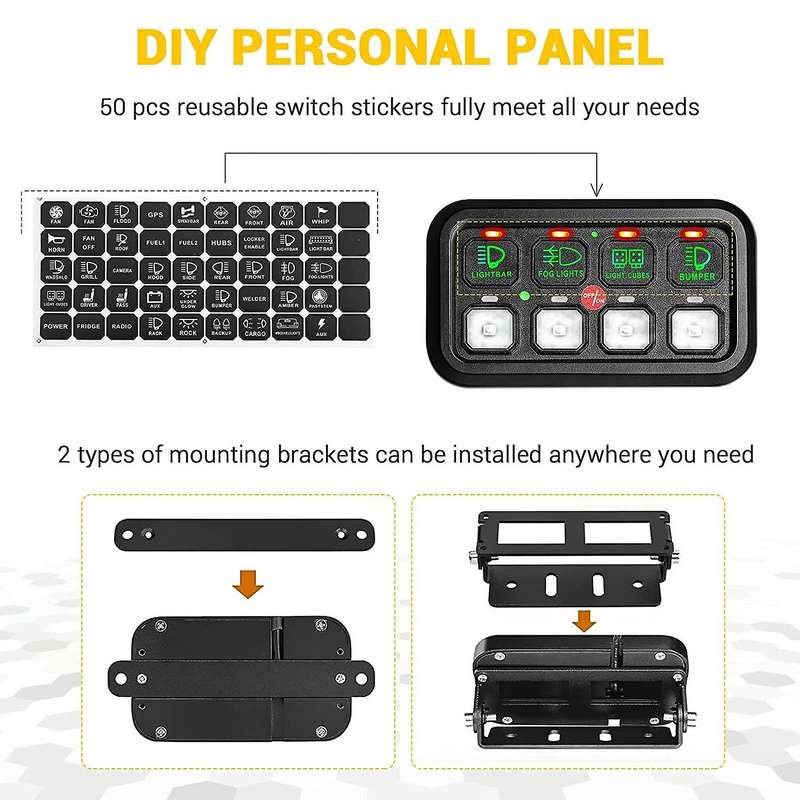

Multi-Position Installation & Wide Application.Universal 8 Switch Panel Relay System.Customize Your Own Panel-50pcs DIY Labels.All In One Design for Your Ultimate Convenience.Attomatic Dimmable Backlight for Driving .Installation Guide:Total power will go to 600W at 12V, 1200W at 24V and the maximum current is 60A. The maximum output current of groud 1 & 2 is 30A, the maximum output current of ground 3-8 is 20A. The recommended connection is to decrease the current gradually from groud 1 to 8 groud. Make sure all the lamps are connectly before connecting the power cable.Specification:Item Shape: SquareOperating Voltage: DC 12-24VRated Voltage: 12V 20A \/ 24V 10ATotal Power: 600W @ 12V, 1200W @ 24VLight Sensor: YesCurrent Rating: 10.0 ampsMaximum Load Current: 60.00 ampsBacklight Type: Green BacklightWaterproof Rating:-40 Celsius ~ + 150 CelsiusOperating Temperature: IP67 WaterproofSwitch: 8-GangEach output: 5A\/10A\/20A\/30ALens material: PMMAMaximum working temperature: 105 CelsiusMounting bracket: Yes, there isColour:blackMaterial:ABS+Aluminum AlloyPackage Contents:1 * switch control box1 * switch panel1 * mounting bracket1 * strap1 * wiring harness1 * voltage protection switch1 * stickerOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
