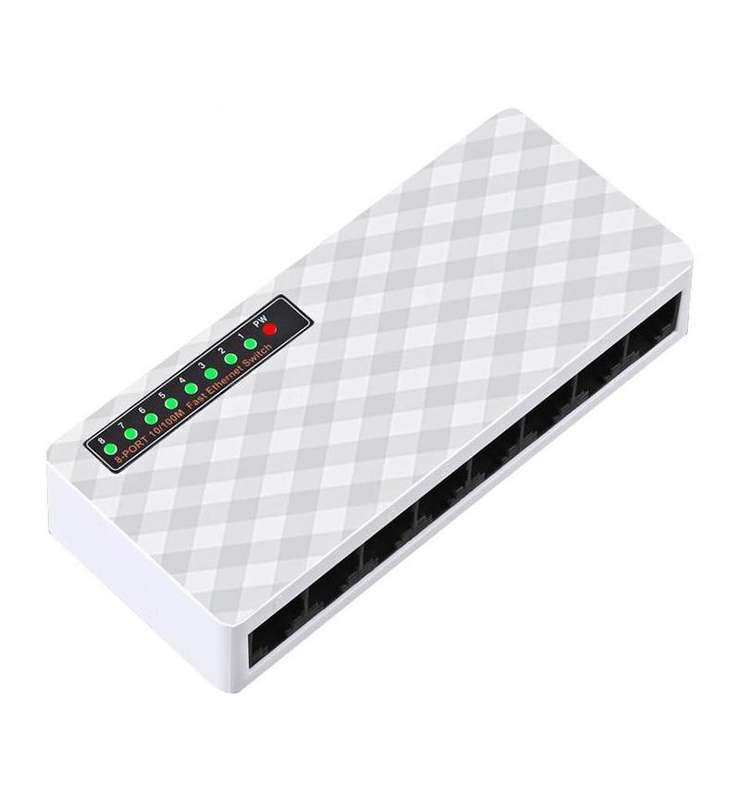

8 Port 10/100 Network Switch

8 PORT 10/100 NETWORK SWITCH - TXE020Product specificationModel number: TXE020Chipset: IP178GPort number: 8 port 10/100M Auto MDI-MDIX RJ45Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3 x IEEE 802.3azNetwork Media: 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTPData Rate: 10/100MForwarding Rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 ppsLED Indicator: 10/100Mbps(Link/Act),PowerDimension: 159 x 71 x 30mmPower Input: DC5V/500mAPower Consumption: Max1.5WEnvironmentOperating Temperature: 0 - 40Relative Humidity: 10%-90% (non-condensing)Storage Temperature: -40 - 70Relative Humidity: 5%-90% (non-condensing)Chipset Feature :8 port Embedded 10/100 PHY Switch ControllerSupport 8 100BaseTX or 6 100Base TX + 2 FXSupport Auto MDI-MDIX functionPower Management Tool (PWMT)APS, auto-power saving while Link-offIEEE 802.3az protocol based power saving & 10Mbps Te for 10MbpsWOL+, light traffic power saving - PWD, force-off power savingSupport Auto Factory Test (AFT)Single Power 3.3V supplyBuilt in Vcore RegulatorTwo Priority queues per portSupport 802.1p & DiffServ based QoSQoSPort base802.1pIP DiffServ IPV4/IPV6TCP/UDP port numberPins configure ports priority (VIP port)Support max forwarding packet length 1552/1536 bytes optionSupport port mirror functionSupport 1k MAC address Support broadcast storm protectionSupport port trunking (LACP)Support 16 VLAN (IEEE Std 802.1q)Port-based/Tagged-based VLANSupport insert, remove tagBuilt-in 50 ohm resistors for simplifying BOM85nm ProcessPackage and operation temperatureIP178G: 68 Pin QFN, 0 - 70
