8-PORT 10/100M INDUSTRIAL SWITCH

8-PORT 10/100M INDUSTRIAL SWITCH

1 available / new
Only 1 left – grab it before it’s gone!
R1,120.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 5 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
TXE036
Bob Shop ID
621744676

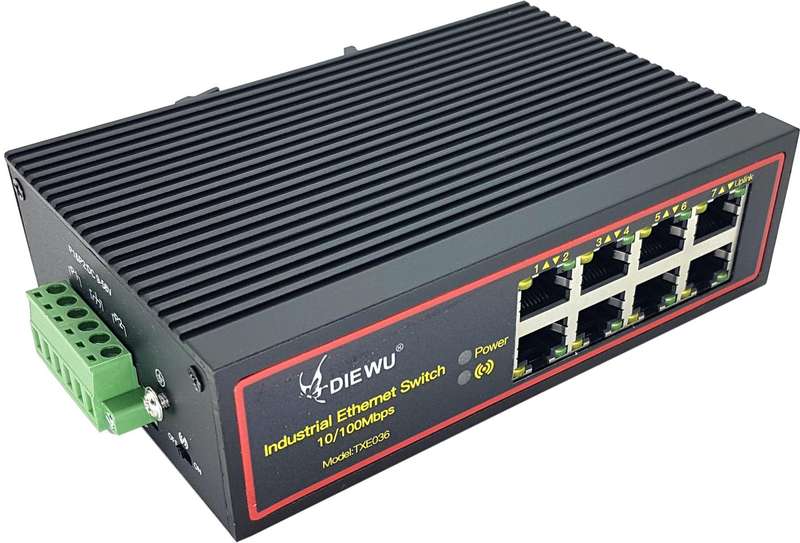

MICROWORLD 8-PORT 10/100M INDUSTRIAL SWITCH -TXE036

Design Highlights

Support DC 9-58V Input Range

Industrial-Grad

Build in signal Enhance & VLAN Switch

Innovative design, customized metal

Product Specification

Model Number: TXI036

Chipset:  IP178GHI

Port Number: 8 port 10/100M Auto MDI-MDIX RJ45

Standard:  IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az

Network Media: 10Base-T,Cat3 or above UTP,10Base-Tx,Cat5 UTP

Data Rate: 10/100M

Forwarding Rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps

LED Indicator: 10/100Mbps(Link/Act, speed),Power, enhance Indicator

Dimension: 141 x 98 x 42mm

Power Input: DC9V-58V

Power Consumption: Max1.5W

Environment

Operating Temperature: -40 -85

Relative Humidity: 10% - 90%(non-condensing)

Storage Temperature: -40 -85

Relative Humidity: 5%-90%(non-condensing)

Other function: Enhance Switch

Chipset Feature : 8 Port Embedded 10/100 PHY Switch Controller

Support 8 100BaseTX or 6 100Base TX + 2 FX

Support Auto MDI-MDIX Function

Power Management Tool (PWMT )

APS, Auto-Power saving while Link-off

IEEE 802.3az protocol based Power Saving

WOL+, light traffic Power Saving

PWD, force-off Power Saving

Support Auto Factory Test(AFT)

Single Power 3.3V Supply

Built in Vcore Regulator

Two Priority queues per Port

Support 802.1p & DiffServ based QoS

QoS

Port base

802.1p

IP DiffServ IPV4/IPV6

TCP/UDP Port Number

Pins Configure Ports priority (VIP port)

Support max forwarding packet length 1552/1536 bytes option

Support port mirror function

Support 1k MAC address ? Support broadcast storm protection

Support port trunking (LACP) ? Support 16 VLAN (IEEE Std 802.1q) ? Port-based/Tagged-based VLAN

Support insert, remove tag

 Built-in 49.9ohm resistors for simplifying BOM

85nm Process
