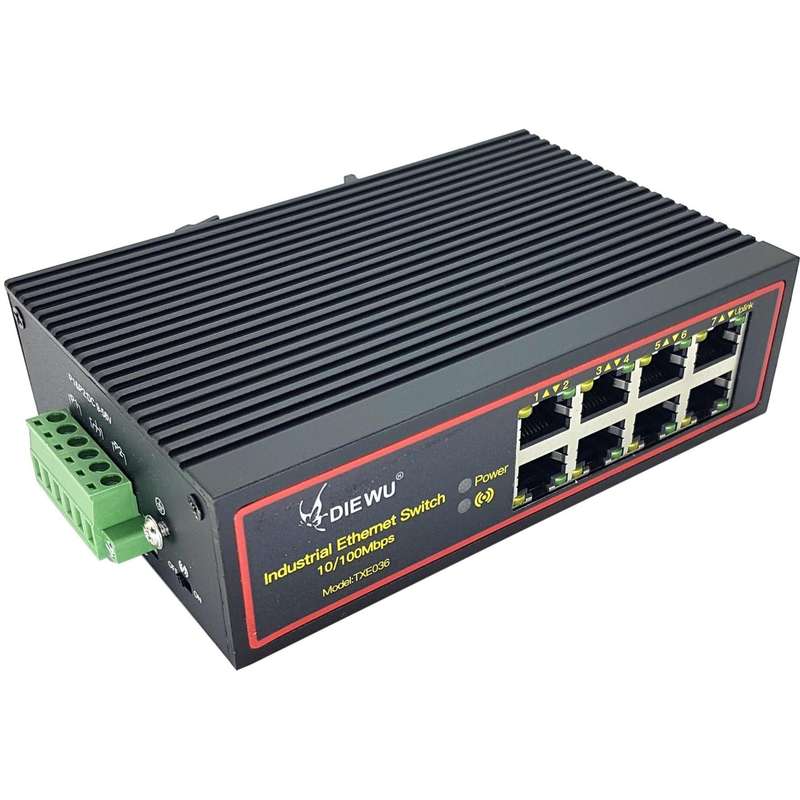

MICROWORLD 8-PORT 10/100M INDUSTRIAL SWITCH -TXE036
Design Highlights
Support DC 9-58V Input Range
Industrial-Grad
Build in signal Enhance & VLAN Switch
Innovative design, customized metal
Product Specification
Model Number: TXI036
Chipset: IP178GHI
Port Number: 8 port 10/100M Auto MDI-MDIX RJ45
Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az
Network Media_ 10Base-T,Cat3 or above UTP,10Base-Tx,Cat5 UTP
Data Rate_ 10/100M
Forwarding Rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
LED Indicator: 10/100Mbps(Link/Act, speed),Power, enhance Indicator
Dimension: 141 x 98 x 42mm
Power Input: DC9V-58V
Power Consumption: Max1.5W
Environment
Operating Temperature_ -40 -85
Relative Humidity_ 10% - 90%(non-condensing)
Storage Temperature: -40 -85
Relative Humidity: 5%-90%(non-condensing)
Other function: Enhance Switch
Chipset Feature : 8 Port Embedded 10/100 PHY Switch Controller
Support 8 100BaseTX or 6 100Base TX + 2 FX
Support Auto MDI-MDIX Function
Power Management Tool (PWMT )
APS, Auto-Power saving while Link-off
IEEE 802.3az protocol based Power Saving
WOL+, light traffic Power Saving
PWD, force-off Power Saving
Support Auto Factory Test(AFT)
Single Power 3.3V Supply
Built in Vcore Regulator
Two Priority queues per Port
Support 802.1p & DiffServ based QoS
QoS
Port base
802.1p
IP DiffServ IPV4/IPV6
TCP/UDP Port Number
Pins Configure Ports priority (VIP port)
Support max forwarding packet length 1552/1536 bytes option
Support port mirror function
Support 1k MAC address ? Support broadcast storm protection
Support port trunking (LACP) ? Support 16 VLAN (IEEE Std 802.1q) ? Port-based/Tagged-based VLAN
Support insert, remove tag
Built-in 49.9ohm resistors for simplifying BOM
85nm Process
