8 Port Fast Ethernet PoE Injector | POE-8

Please check stock availability before placing order

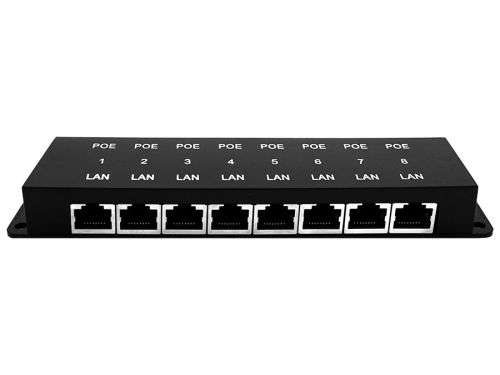

The POE-8 passive PoE injector supports 10/100 ethernet connectivity and has 16 RJ45 sockets in total, 8 of which are used for Data only and the other 8 used for Power and Data. The RJ45 Pins 1/2 & 3/6 are used for transmitting data and pins 4/5 & 7/8 are used for transmitting power. The DC input jack is 2.1mm and the outer diameter is 5.5mm. The total output power should be less than the input supply with the max output per port being 12-56VDC (30W)

PSU sold separately.

Specifications:

- Input : 12-56V DC 2.1MM
- Output: 12-56V PER PORT (30W Max)
- Data: 1/2 & 3/6
- Power: 4/5 V+ & 7/8 VData
- In: Connects PC/HUB/Switch
- Ethernet Cable: Cat.5 / Cat.5e / Cat.6
- Ethernet Data Rate: 10/100 TX Mbps
- Ethernet Cable Connector: RJ45
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -40°C~+70°C
- Operating Humidity: 10%~80% RH
- Storage Humidity: 5%~90% RH
