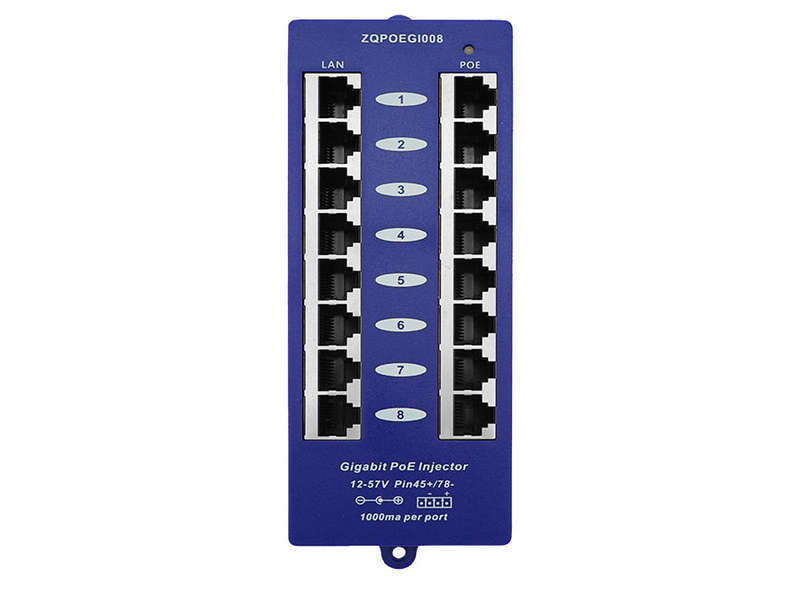

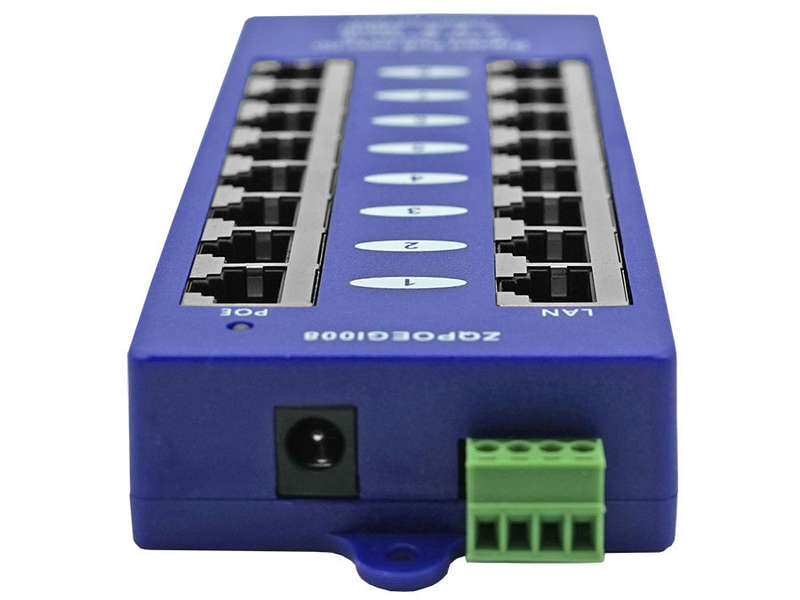

The POE-8G passive PoE injector supports Gigabit Ethernet connectivity and has 16 RJ45 sockets in total, 8 of which are used for Data only and the other 8 used for Power and Data. The RJ45 Pins 1/2 & 3/6 are used for transmitting data and pins 4/5 & 7/8 are used for transmitting power. The DC input jack is 2.1mm and the outer diameter is 5.5mm. The total output power should be less than the input supply with the max output per port being 12-56VDC (30W)
PSU sold separately.
Specifications
Ethernet Ports: 16x 10/100/1000
Operating Temperature: 0°C to 40°C
PoE Mode: Mode B / Mid-span (4/5+, 7/8-)
PoE Output: PoE Pass-through (Power output determined by PSU)
Power Input: 12-57V Power Supply (Not Included)
Supported Voltage Range: 12-57V
