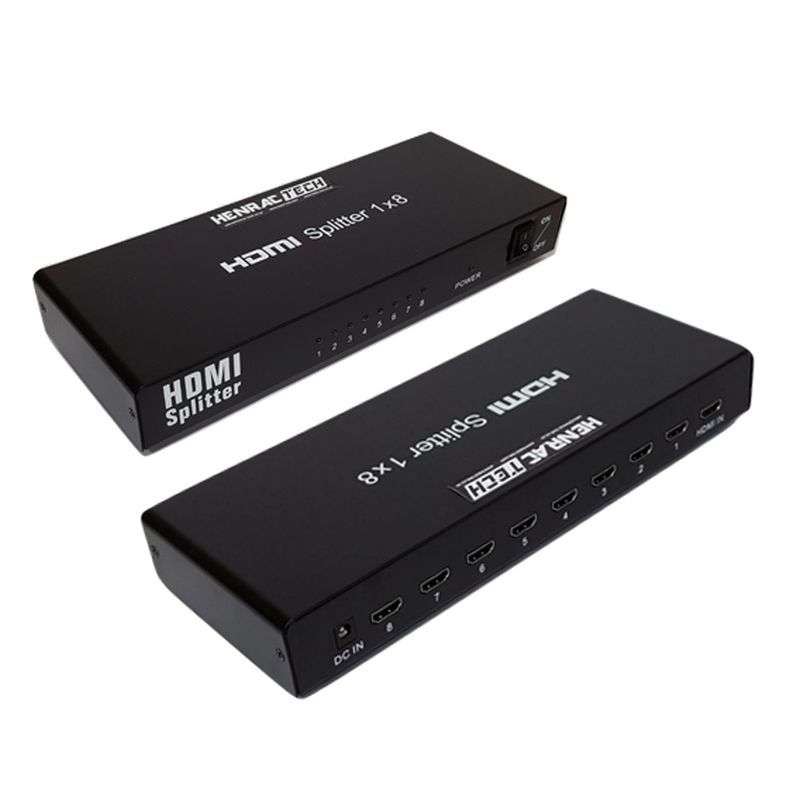

8 Port HDMI Splitter (1x In, 8x Out) | Full HD 1080p

8 Port HDMI Splitter (1x In, 8x Out), Henrac Tech. Supports All Resolutions up to Full HD (480p, 576p, 720p, 1080i, 1080p,).

Note these units are all brand new and tested but form part of our stock clearance, hence the great price and limited stock. The box may not look brand new. Standard warranty applies.

Purpose

When you need to connect a HDMI source device (such as a decoder, TV Box etc) to more than one TV. Outputs can be connected to any TV, Monitor, Projector or HDMI Extender. With this Splitter not all outputs need be connected if you only have a need for 2 way the other 2 output ports can remain as spare for future use.

This unit can also perform a 'inline HDMI booster repeater function' meaning max 15m cable input and 15m on the output (resolutions 1080p and below).

Note: HDMI Splitters are often used in conjunction with HDMI CAT Cable Extenders to for example extend a DSTV decoder to a bedroom or entertainment area. For this purpose we recommend the below extender which can control the decoder from any of the extended locations.

'HDMI Extender, Balun Pair, Single CAT Cable, 120m, Full HD'

Features

• Incorporates signal buffering, amplification capability and automatic identification function.
• HDMI booster long-distance transmission over 15 meters (expansion) by means of serial connection
• through the stacking method, can significantly increase the number of HDMI output ports.
• supports 480p, 576p, 720p, 1080i, 1080p resolutions
• fully support HDMI 1.4, support 3D, fully compatible with HDCP

Specifications

• Video Amplifier Bandwidth: 225 Mbps
• Input video signal level: 1.2 volts p-p
• Input DDC signal level: 5 volts p-p (TTL)
• Single connection signal range: 1080p
• Power supply: 5V DC 110V-240V, 50HZ
• Power consumption: 5 watts (maximum)

What's in the Box?
1x HDMI Splitter 8 way FHD
1x Power Supply (5V, 1A)

1x user Manual
