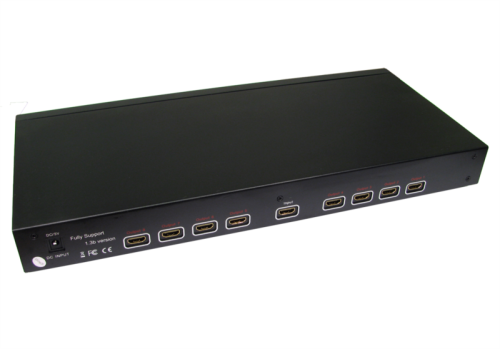

The HD-SP208AMP allows you to connect the output from a single High Definition source to eight displays. For example, a set top box, DVD player or game console to eight separate HDMI equipped displays.

Each splitter unit’s output can achieve a total distance transmission of a HDMI signal of 20 metres (5 metres before and 15 metres after splitter).  Although possible, it is not recommended to use a cable longer than 5 metres before splitter.

Specification

• Easy to Use: Install in seconds, no need of setting.
• Distribution: Eight identical HDMI outputs.
• HDCP 1.0/1.1 Compliant.
• HDMI 1.3b Compatible
• Supports 2.25Gbps/225MHz bandwidth
• Supports HDMI resolutions up to 1080P
• Cascadable up to three times
• FCC CE Certified.
• Devices with DVI output are not supported due to the lack of signal control.

Package Contents

• 8 Port amplified HDMI Splitter
• 1 x Power Supply
• 1 x Manual
