8 WAY SERIAL PORT SPLITTER

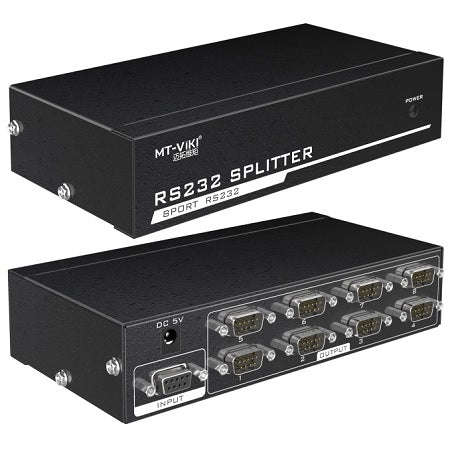

8 WAY SERIAL PORT SPLITTER - RS108

RS 232 SERIAL SPL ITTER

Application

RS232 Serial Splitter is widely used in a variety of small and medium- sized Multimedia Conference Room

The Central Control System

The Serial Splitter Product is Designed to solve the problem of such Engineering Applications

Users can use the Device will be an RS232 Interface Extended to 4 or 8 Port

Suitable for the need for RS232 Communication Port Expansion of the Engineering Application System

Pin Definition

Output Port Adopting DR9 Male

Pin is defined as: 3-Pin Transmit, 2-Pin Receive, 5-Pin Ground (That is, Analog Computer Serial Output Order)

Wiring

The Computer Serial Port through the straight-through Serial Cable Connected to the RS232 Splitter's Input

The Output Port is also directly Connected to the Device by the straight-through Serial Cable

(That is, the Serial Line 2 to 2,3 to 3 Connected Lines)

At this time the Product can be used as 1 in 4 Out or 1 in 8 Out

Specification

Product Name: Serial Port Splitter

Input Type: DR9 Female RS-232

Baud Rate: 300-115200bps

Test Low Temperature: -20C – 40C

Power Supply: DC5V

Model: MT-RS108

Output Port Type: DR9 Female RS-232

Communication Distance: 30M

Test Low Temperature: 0C -50C

Housing Material: Metal Iron Housing
