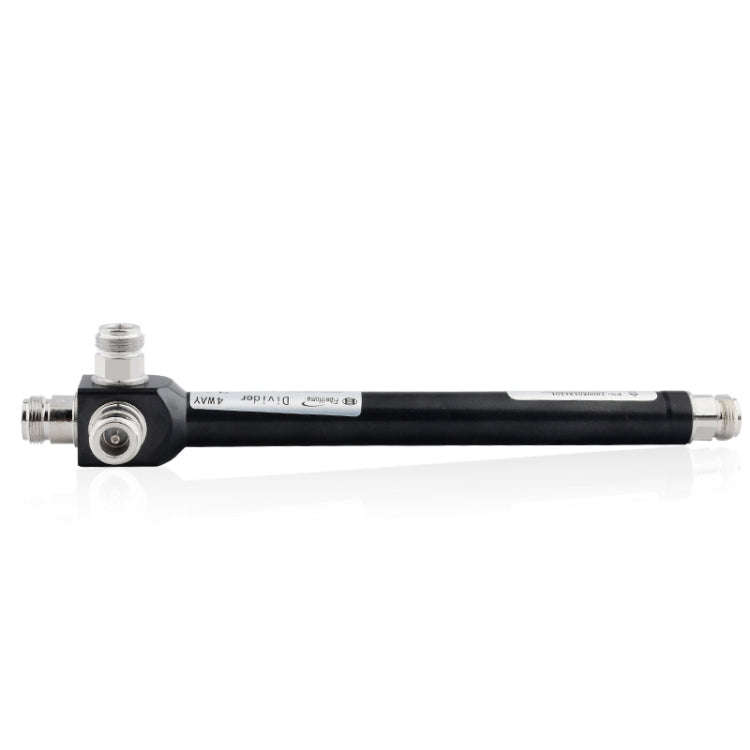

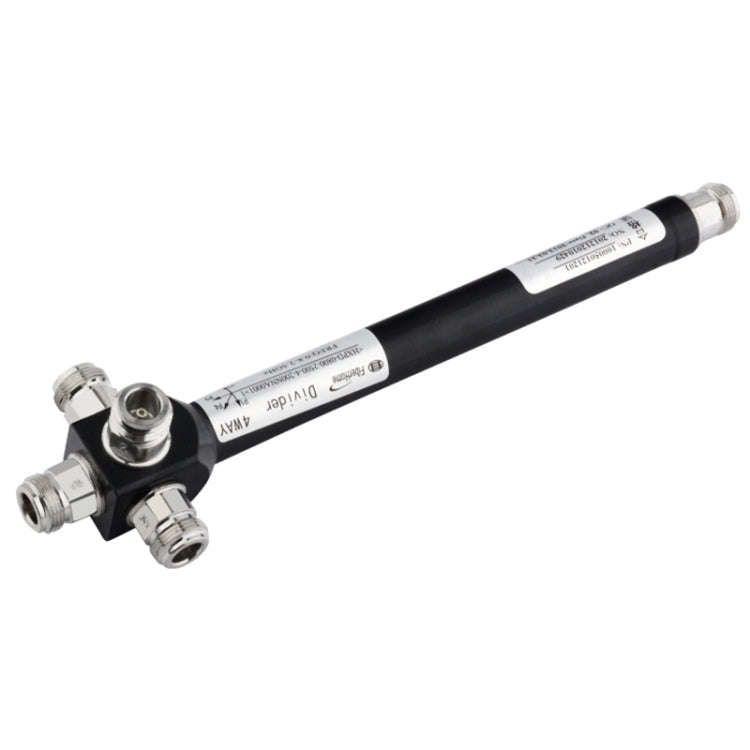

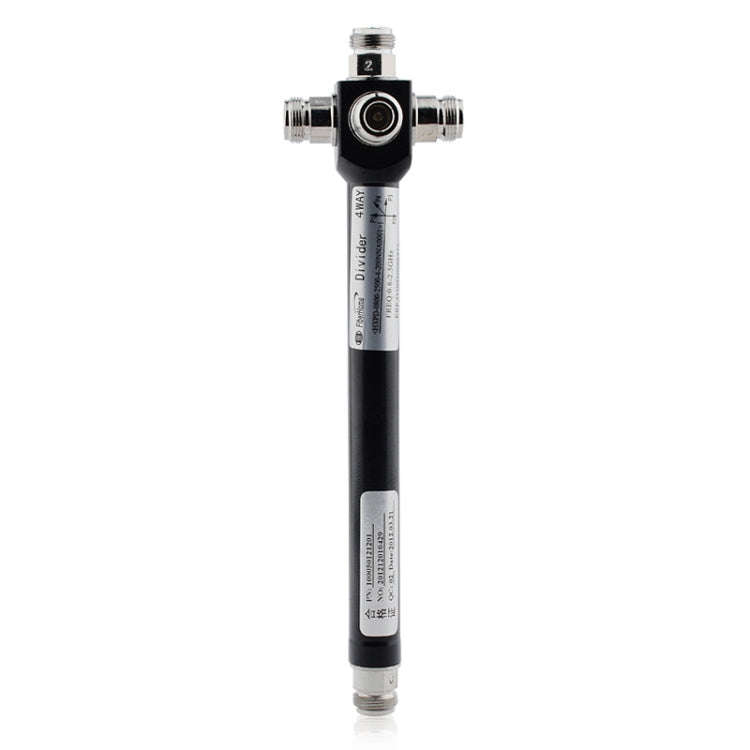

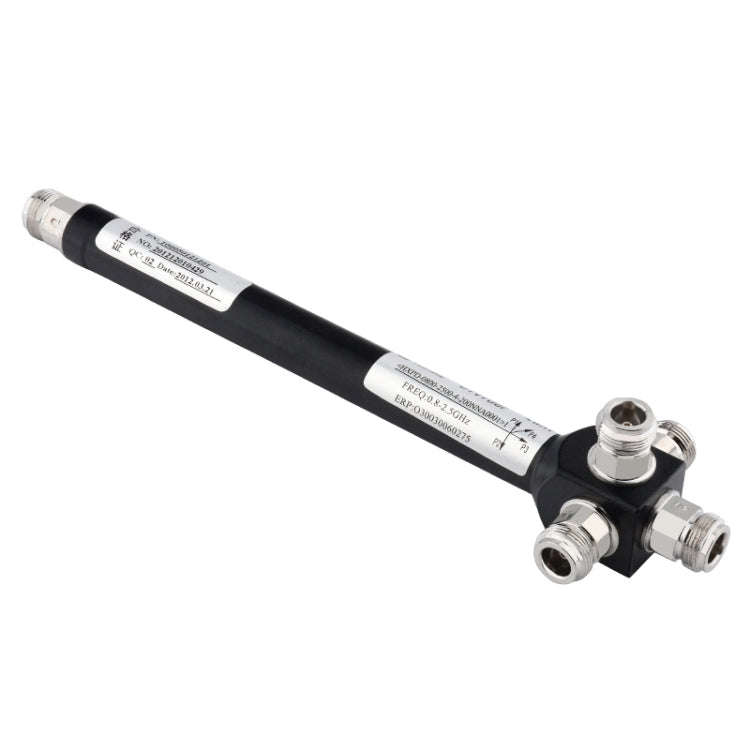

800-2500MHz 4 Way Cavity RF Power Splitter/Power Divider 800-2500MHz 4 Way Cavity RF Power Splitter/Power Divider 800-2500MHz 4 Way Cavity RF Power Splitter/Power Divider 800-2500MHz 4 Way Cavity RF Power Splitter/Power Divider 800-2500MHz 4 Way Cavity RF Power Splitter/Power Divider 800-2500MHz 4 Way Cavity RF Power Splitter/Power Divider 800-2500MHz 4 Way Cavity RF Power Splitter/Power Divider
800-2500MHz 4 Way Cavity RF Power Splitter/Power Divider 800-2500MHz 4 Way Cavity RF Power Splitter/Power Divider 800-2500MHz 4 Way Cavity RF Power Splitter/Power Divider 800-2500MHz 4 Way Cavity RF Power Splitter/Power Divider
800-2500MHz 4 Way Cavity RF Power Splitter/Power Divider
+3

800-2500MHz 4 Way Cavity RF Power Splitter/Power Divider

New 10 available
R238.24
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
S-SPB-0203
Bob Shop ID
637515604
1) Using micro strip structures, in-band flatness is good, high isolation, insertion loss is small, Standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system.

* Electrical Specifications:

1) Type: 4-way Cavity Power Divider

2) Frequency: 800 ~ 2500MHz

3) Insertion loss(distribution ratio)-db:<=6.5DB

4) Isolation (dB): <=27

5) Nominal Impedance: 50 Ohm

6) VSWR: 1:1.2

7) Max. Power(MAX)(W) :50

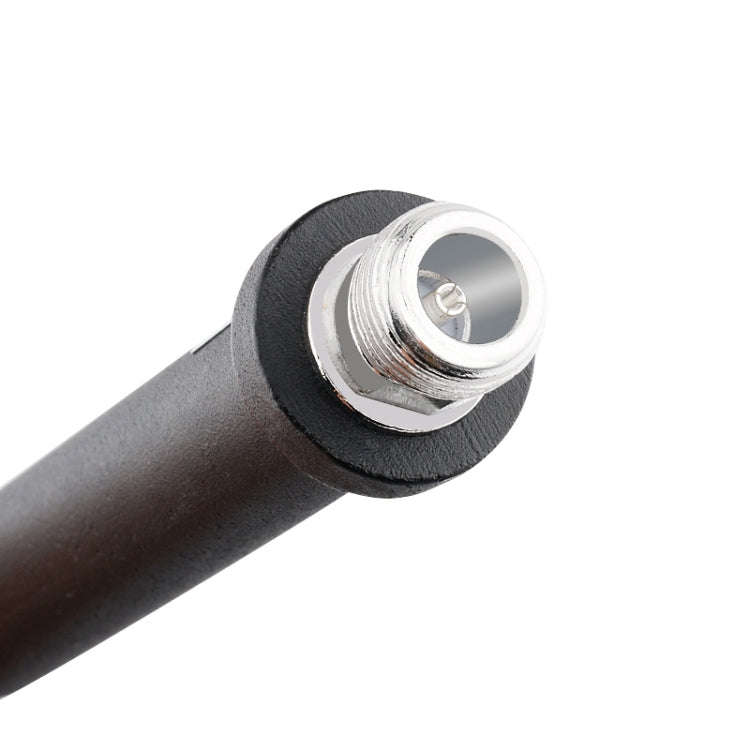

8) Connector: N female

* Mechanical Characteristics:

1) Environment temperature:-25~+55 Degree C

2) Relative humidity: 5~95%

3) Size: 235mm X 60mm x 43mm

4) Weight: 212g
