Features

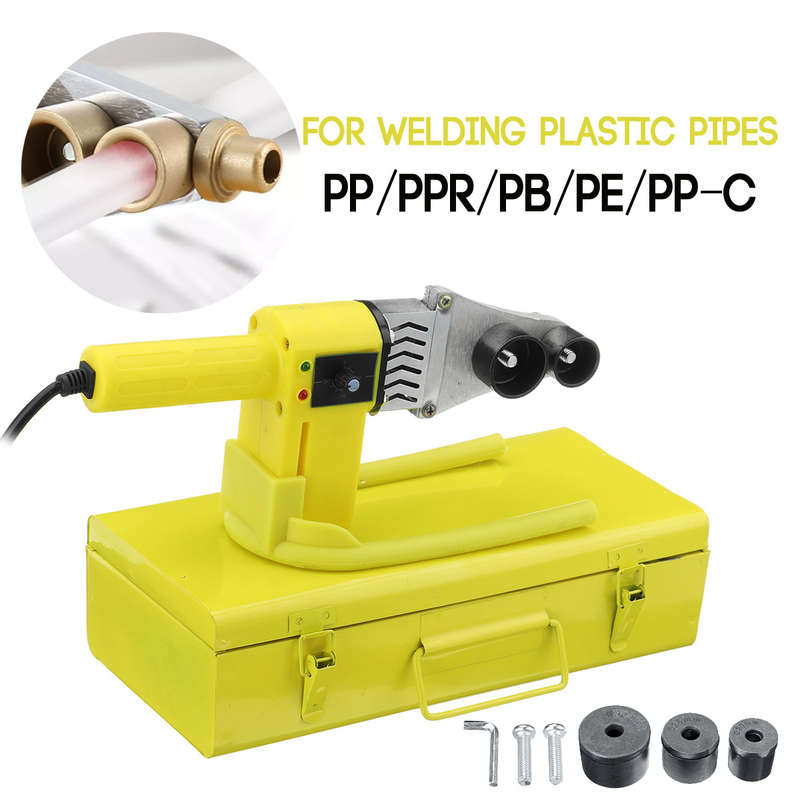

- For welding plastic pipes such as PP / PPR / PB / PE / PP-C pipe and etc.
- Designed for long time use.

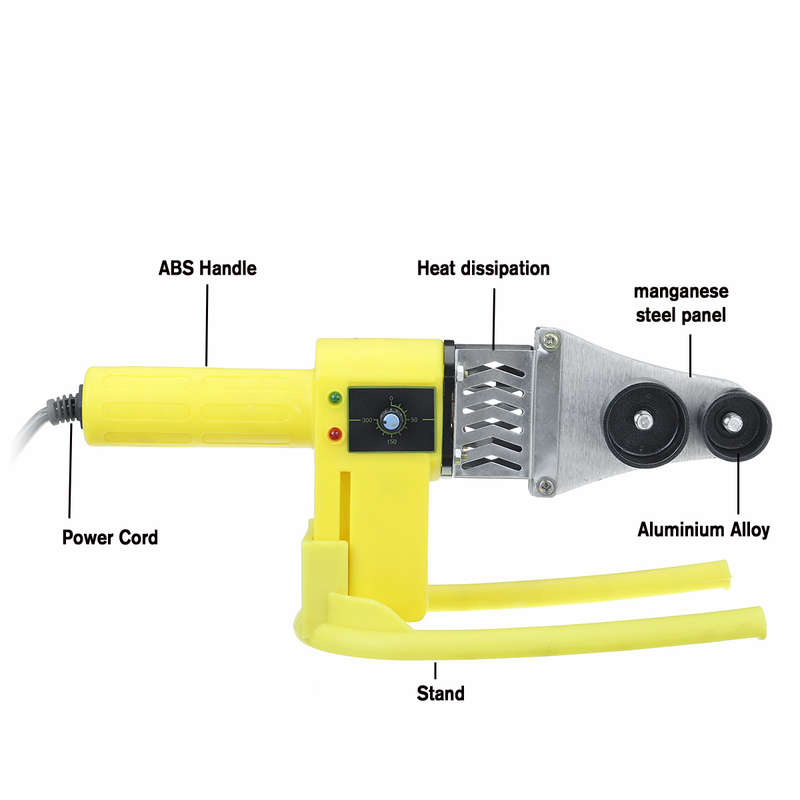

- Non-slip handle, comfortable to grab.
- Use for pipeline construction equipment.

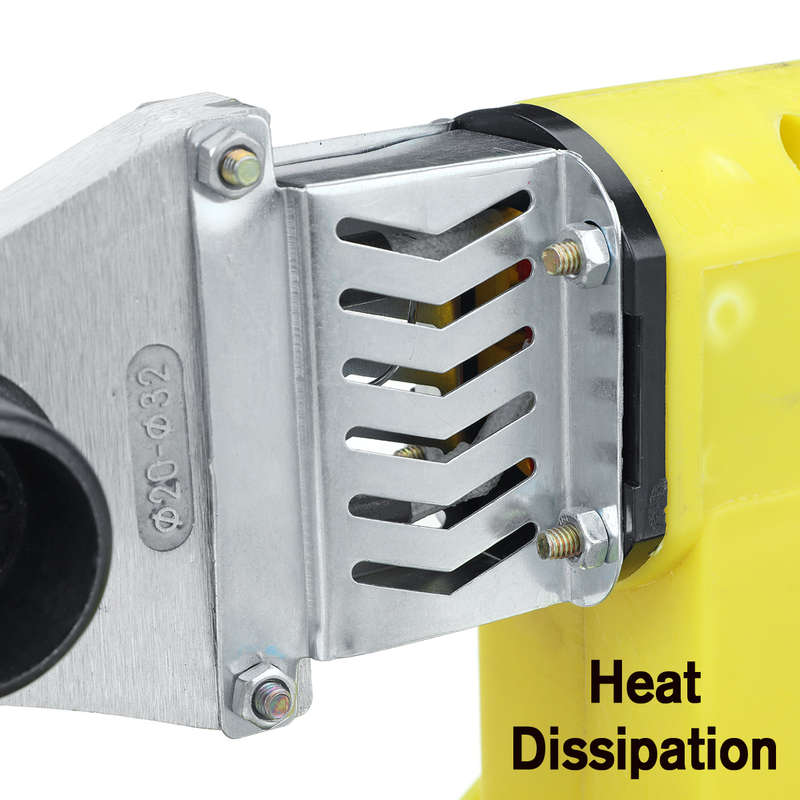

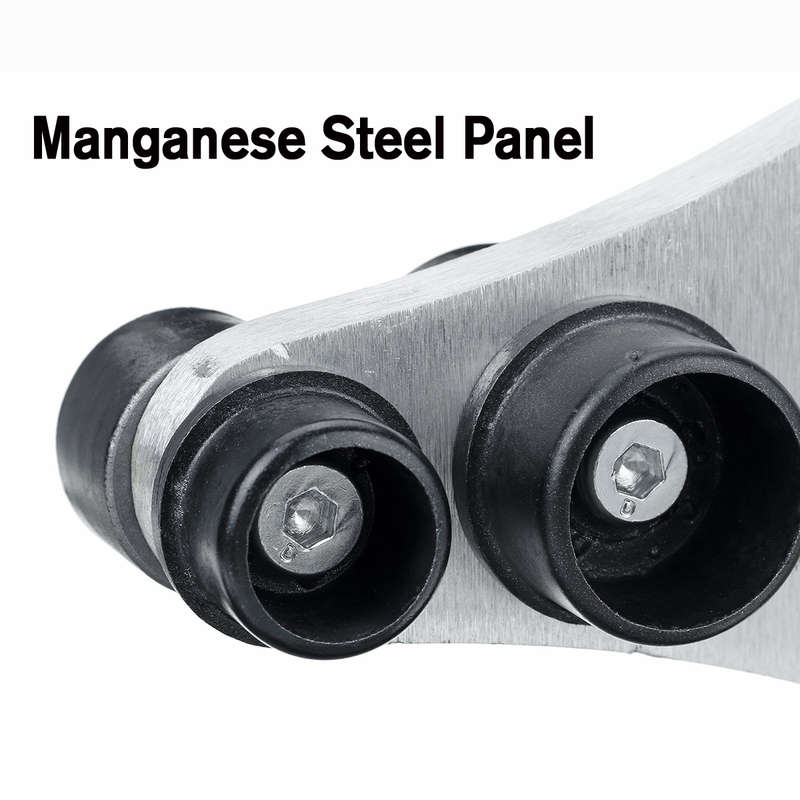

- Manganese steel panel, fast heat conduction.
- Thick gold paint touch head, hot melt fast heating.

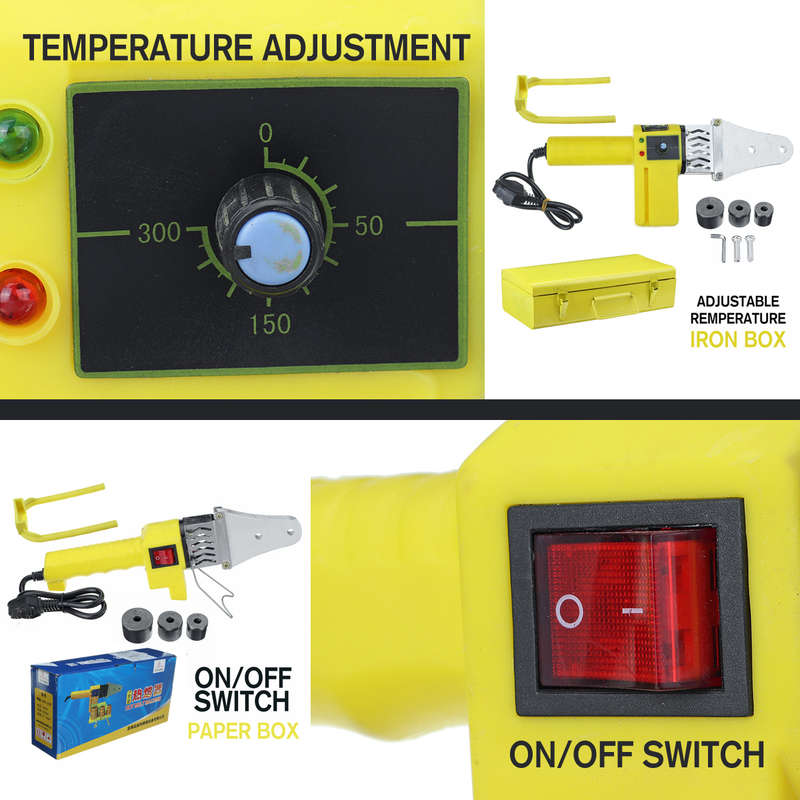

- Adjustment temperature.(For Only 1 type)
Specifications

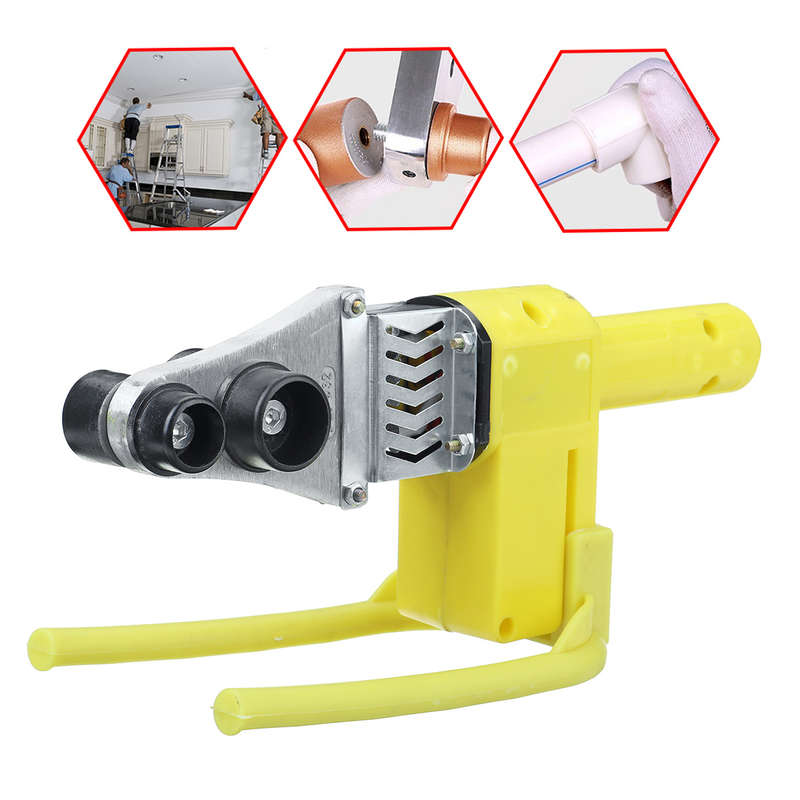

Name: Electric Welding Tool
Color: Yellow
Material: Aluminium alloy
Rated Power: 800W
Head: 20mm 25mm 32mm
Voltage ranges: AC 220V 50 ± 1hz
Heating head temperature: 300 ± 5 a
Safety indicators: insulation resistance of not less than 1M
Leakage current: a5mA (AC rms)
Type: A: WithPaper Box, B: WithIron Box

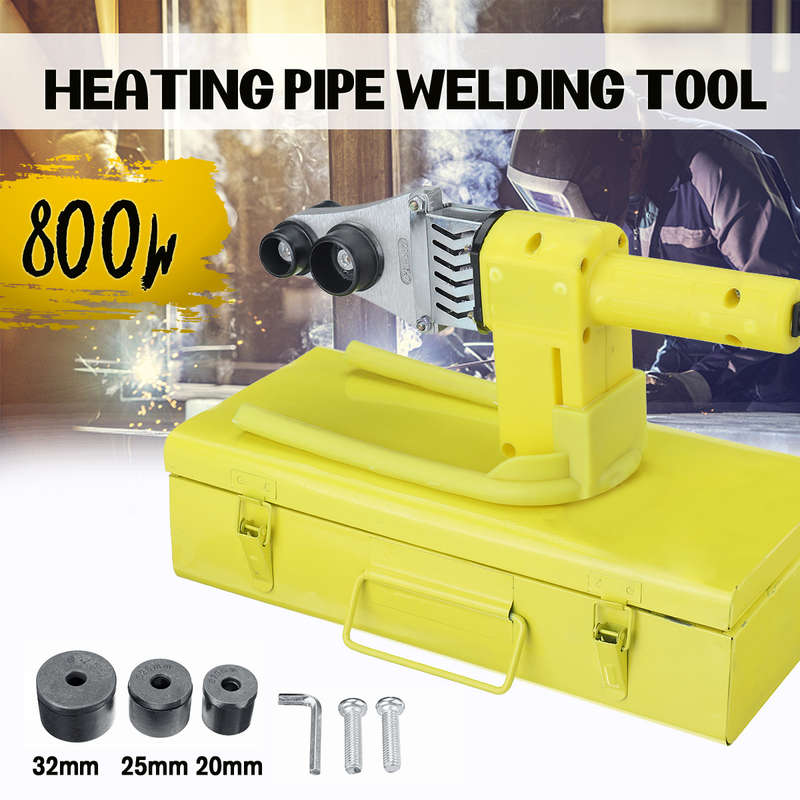

Package Included
1 x Pipe Welding Machine

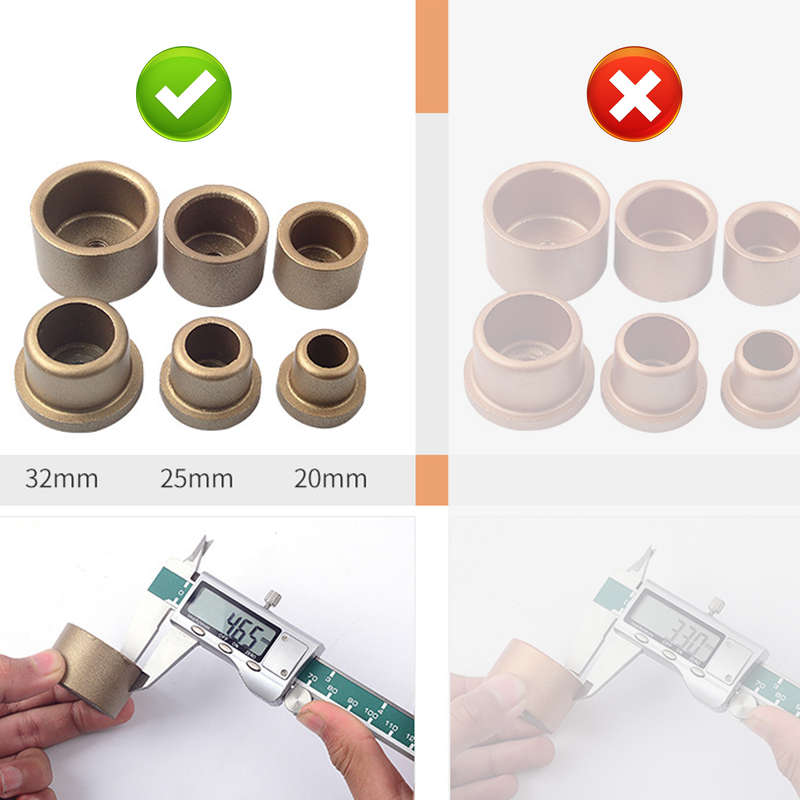

3 x 20mm 25mm 32mm Welding Heads
2 x Fasten Screw
1 x Inner Hexagon Spanner
1 x Support Shelf
1 x Iron Box/Paper Box
Instruction
1. Install the heatsink on the fixed welding device, place the welding device on the rack, install the corresponding heating die according to the required pipe specifications, and use the hexagon to tighten, usually small in the front end in the back.
2. Power on: power on (pay attention to the power must be with a ground protection line), the green indicator light, until the green light is off, the red light is on, indicating that the fuse into the automatic temperature control state, you can start operation. Note: In the automatic temperature control state, red light, green light will be alternately lit, indicating that the fuse is in a controlled state, does not affect the operation.
3. Welded pipe: pipe cutter with a straight cut off the pipe, the pipe and pipe at the same time without rotating into the fuse die, and in accordance with the requirements of the table to operate, to get to the heating time immediately after the pipe and pipe removed from the die at the same time , Quickly and without rotation directly into the required depth of uniform, so that the joints open into uniform flange.
