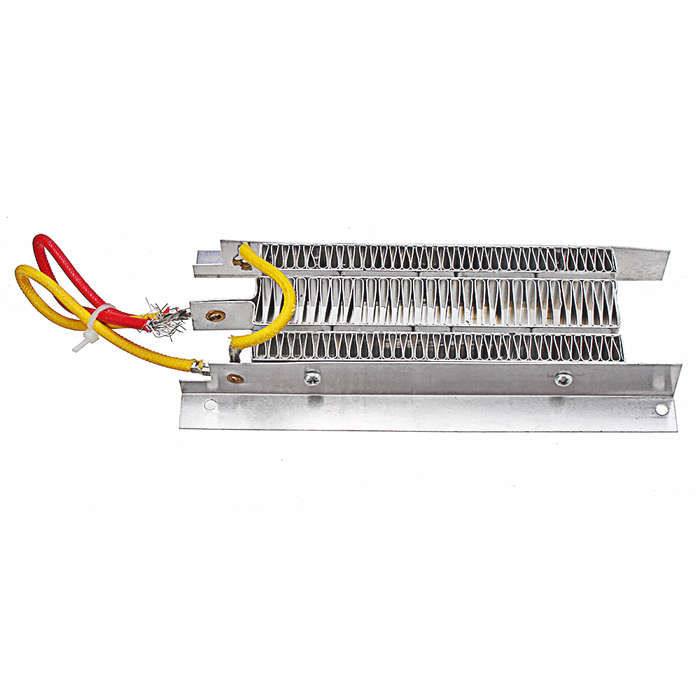

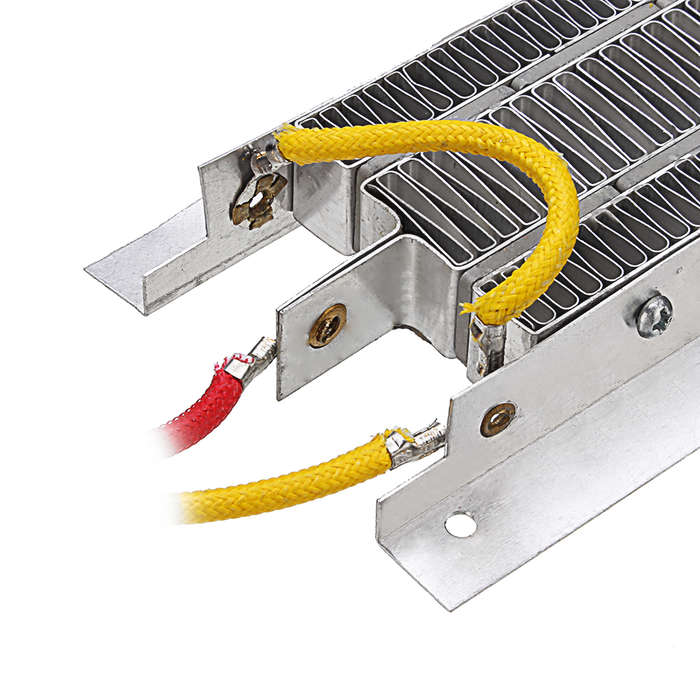

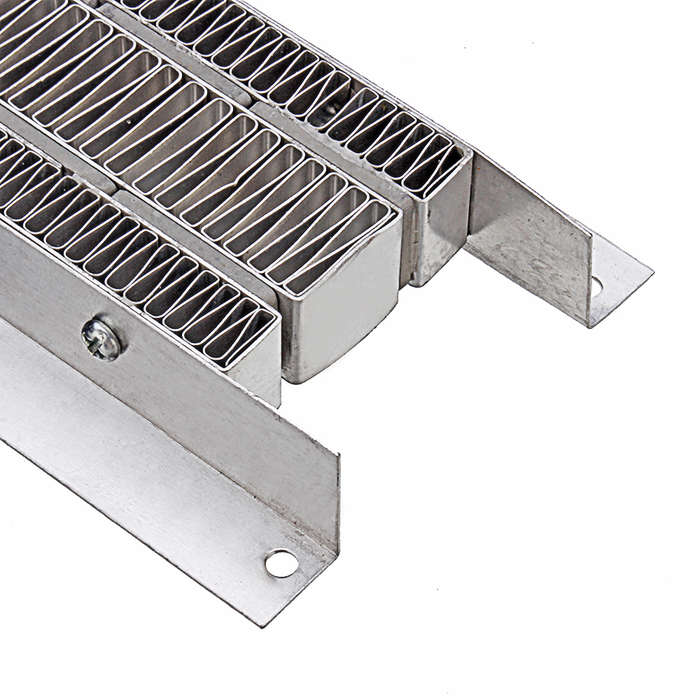

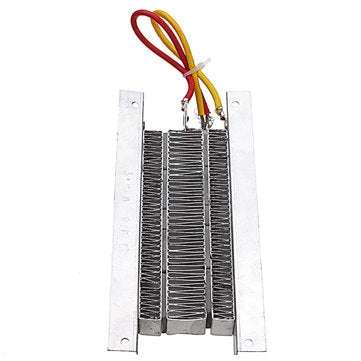

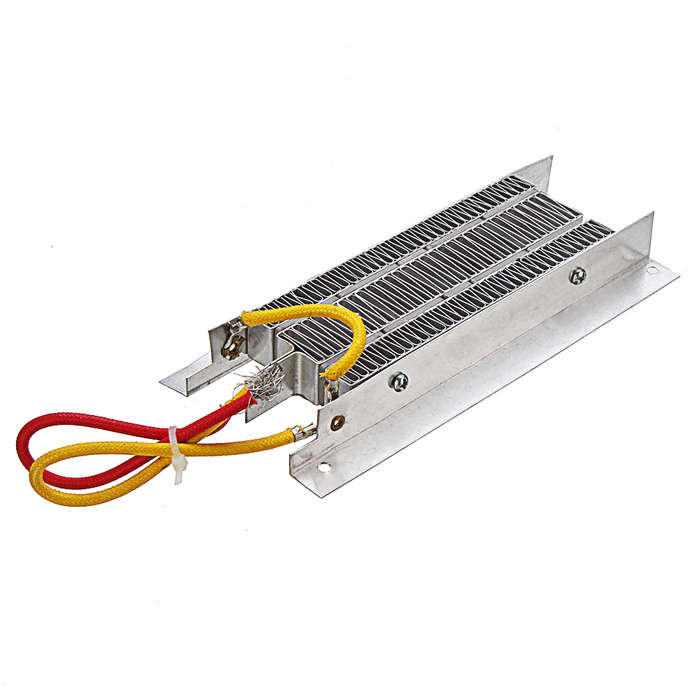

800W 36V PTC Air Heater Electric Ceramic Thermostatic Insulation PTC Heating Element Heater

Features:

- Safety, long service life,energy saving,surface insulation.
- Easy installation, automatic thermostat.
- Constant temperature heating, no open flame, high thermal conversion rate, affected by the supply voltage is minimal.
- Automatic energy-saving features, when the heater to the ambient temperature increases, the power will gradually reduce, only the rated power of 90%, 80%, or less.

Specifications:

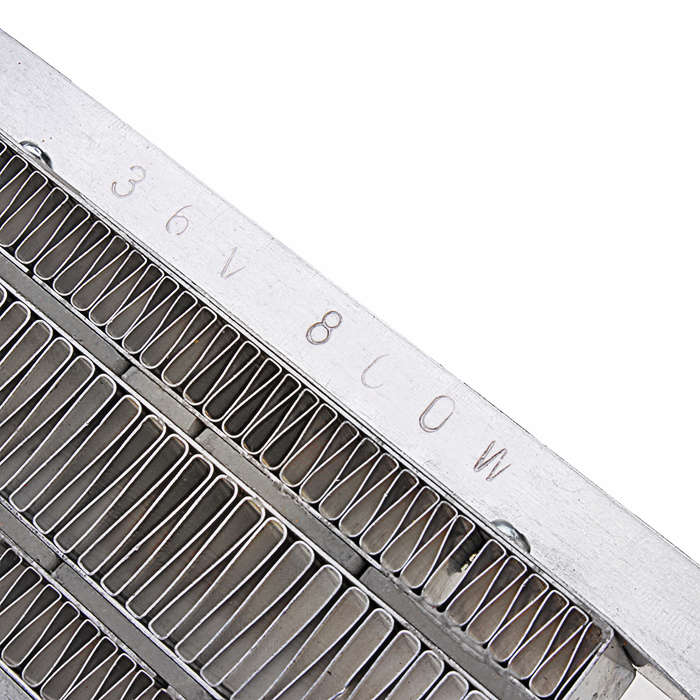

Model: 36V 800W
Color:Silver Tone
Rating Voltage: 36V
Rating Power: 800W
Heat Material: PTC Thermistor
Heat Methods: Heat Conduction
Mounting Hole Size: 3.5mm
Mounting Hole Center Distance:137mmx55mm
Size: 150x68x18mm
Ripple: 110mm

Application:

Air Conditioning Units, Air Curtain Machine, Drying Machine, Dryer, Heater,Cars, Need to provide warm air devices, etc.
Dissipation Power: (Because of the different users to use, and the characteristics of PTC itself and energy saving,
insulation type PTC heater product actual use most of the energy dissipation within 50% to 100% of the rated power.
Dry Power: about 15% of the rated power.

Packaged included:

1 x PTC Heating Element( Included Wire)
