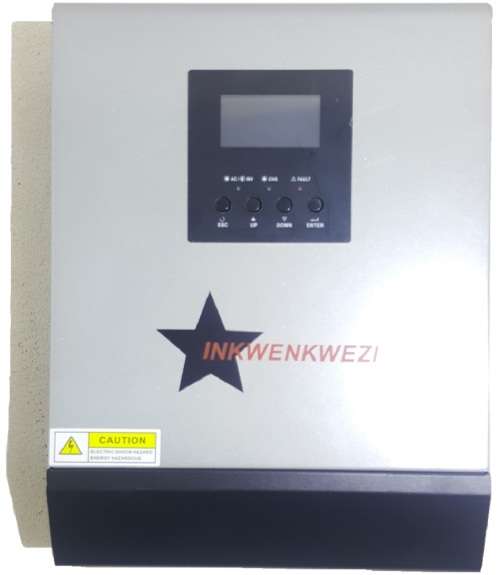

800W Inverter - DC to AC 1KVA 12V 800W Pure Sine Wave All-In-One Power Inverter

Pure Sine Wave Inverter with Built-In battery charger. Works with both AC and DC power to charge batteries and switch over the load.

Features:

• 800W Pure Sine wave inverter
• Easy to use design
• Compact design for travel and home use
• Capable of powering various devices and appliances(Please check power specifications of devices)

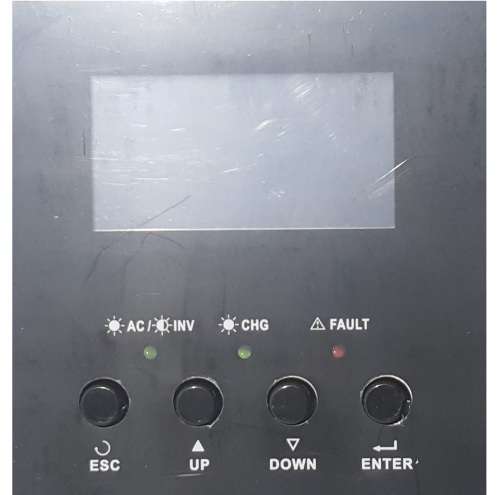

• LCD display for easy setup.
• LED indicators for easy monitoring.
• Configurable input voltage range for home appliances and personal computers.
• Configurable battery charging current.
• Compatible with Mains Voltage or Generator power.
• Auto Start setting when AC is off.

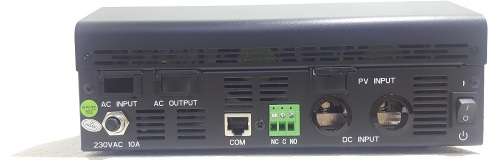

• AC input connector
• Overload / Over heating / Short Circuit Protection
• Smart Battery Charger design for optimized battery performance.
• Cold Start function.
• Please READ the User Manual For Wiring, Safety and Mounting Precautions!!!

NOTE: Please keep device in Well-Ventilated area!!!

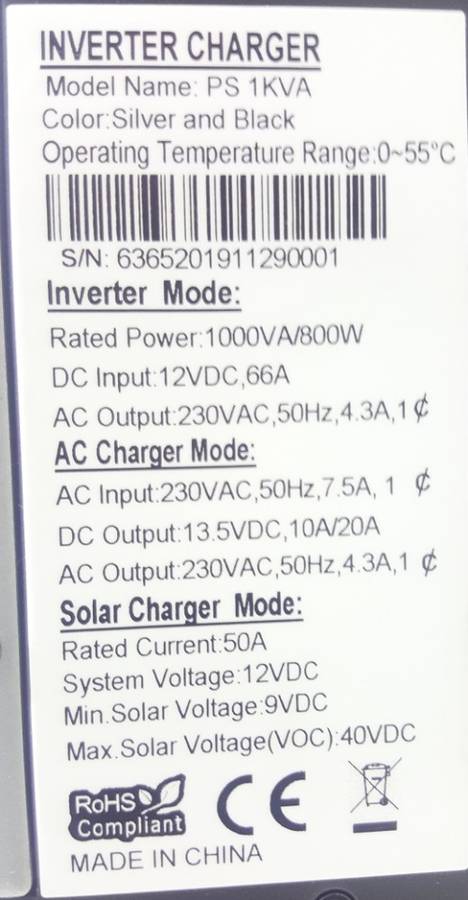

Specifications:

General Specifications:

• Model: 1KVA 12V
• Safety Certification: CE
• Operating Temperature Range: 0°C to 55°C
• Storage Temperature: -15°C ~ 60°C
• Dimentions: Weight(LxWxH): 31.6 x 9.5 x 24cm
• Net Weight: 5kg

Line Mode Specifications:

• Input Voltage Waveform: Sinusoidal(utility or generator)
• Nominal Input Voltage: AC 230V
• Low Loss Voltage: AC 170V +7V(UPS)

                                         AC 90V +7V(Appliances)

• Low Loss Return Voltage: AC 180V +7V(UPS)

                                                     AC 100V +7V(Appliances)

• High Loss Voltage: AC 280V +7V
• High Loss Return Voltage: AC 270V +7V
• Max AC Input Voltage: AC 300V
• Nominal Input Frequency: 50Hz / 60Hz (Auto Detection)
• Low Loss Frequency: 40+1Hz
• Low Loss Return Frequency: 42+1Hz
• High Loss Frequency: 65+1Hz
• High Loss Return Frequency: 63+1Hz
• Output Short Circuit Protection: Circuit Breaker
• Transfer Time: 10ms typical(UPS)

                                   20ms typical(Appliances)

Inverter Mode Specifications:

• Rated Output Power: 1KVA / 0.8KW(800W)
• Output Voltage Waveform: Pure Sine Wave
• Output Voltage Regulation: AC 230V +5%
• Output Frequencey: 50Hz
• Peak Efficiency: 90%
• Overload Protection: 5s @ >150% load ; 10s @ 110%~150% load
• Surge Capacity: 2* rated power for 5 seconds
• Nominal DC Input Voltage: DC 12V
• Cold Start Voltage: DC 11.5V
• Low DC Warning Voltage:

                           @ Load < 20%: DC 11.0V

                           @ 20% < Load < 50%: DC 10.7V

                           @ Load > 50%: DC 10.1V

• Low DC Warning Return Voltage:

                           @ Load < 20%: DC 11.5V

                           @ 20% < Load < 50%: DC 11.2V

                           @ Load > 50%: DC 10.6V

• Low DC Cut-off Voltage:

                           @ Load < 20%: DC 10.5V

                           @ 20% < Load < 50%: DC 10.2V

                           @ Load > 50%: DC 9.6V

• High DC Recovery Voltage: DC 14.5V
• High DC Cut-off Voltage: DC 15.5V
• No Load Power Consumption: <15W
• Power Saving Mode Consumption: <5W

Charge Mode Specifications:

• Charging Algorithm: 3-Step

Utility Charging Mode:

• AC Charging Current: 10 / 20Amp
• Bulk Charging Voltage:

                                 Flooded Battery: 14.6

                                AGM / Gel Battery: 14.1

• Floating Charging Voltage: DC 13.5V

Solar Charging Mode:

• Charging Current(PWM): 50Amp
• System DC Voltage: DC 12V
• Operating Voltage: DC 15V~18V
• Max. PV Array Open Circuit Voltage: DC 40V
• Standby Power Consumption: 1W
• DC Voltage Accuracy: +/- 0.3%

Joint Utility and Solar Charging:

• Max Charging Current: 50Amp
• Default Charging Current: 50Amp

In Box:

• 1 x Inverter
• 1 x Cables
• 1 x User Guide(Please READ!!!)

Please NOTE: Images of the exact unit!!! NON-Branded!!!
