Feature:
1. The PCB adopts high-end 8-layer 4oZ thickened copper skin, the application of high-end resin plugged hole PCB production process, double pad design, stronger overcurrent capacity and good heat dissipation.
2. The MOS adopts imported 85V high current resistant mos, which has a long life and strong load capacity.
3. Adopt industrial-grade LDO, high temperature resistance.
4. Adopt high-quality Japanese Murata capacitors, with strong filtering performance.
5. Programmable magic LED light.
Specification:
Brand: HAKRC

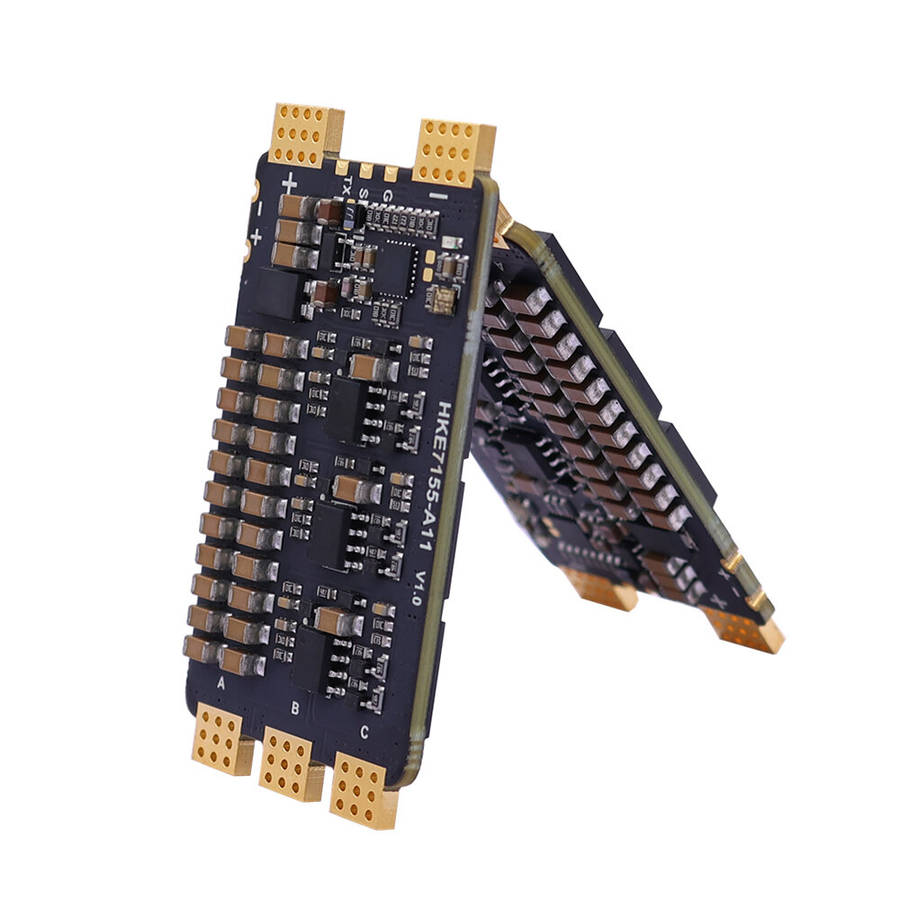

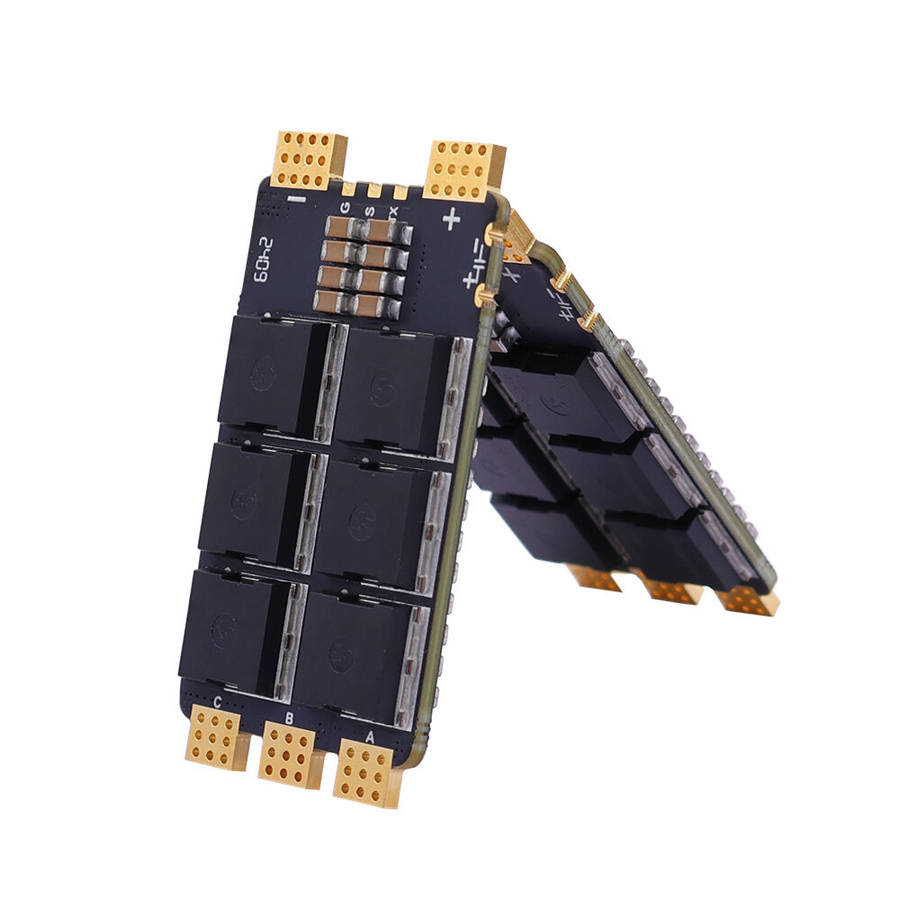

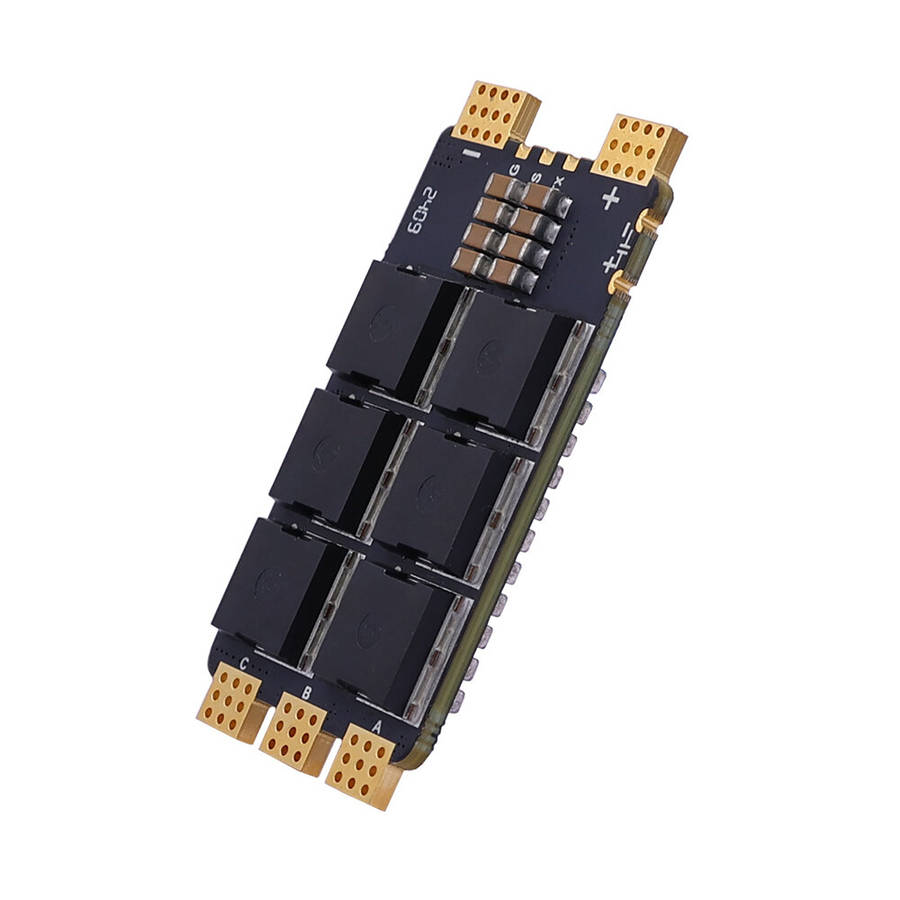

Item Name: 7155 80A ESC
Electric Adjustment Firmware: HAKRC_G071-2023_Multi_32_100.Hex
Protocol Support: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600
Input Voltage: 6S-12S Lipo
Continuous Current: 80A
Peak Current: 100A
Size: 55* 28mm
Product Weight: 21g
Package included:
1 x HAK
