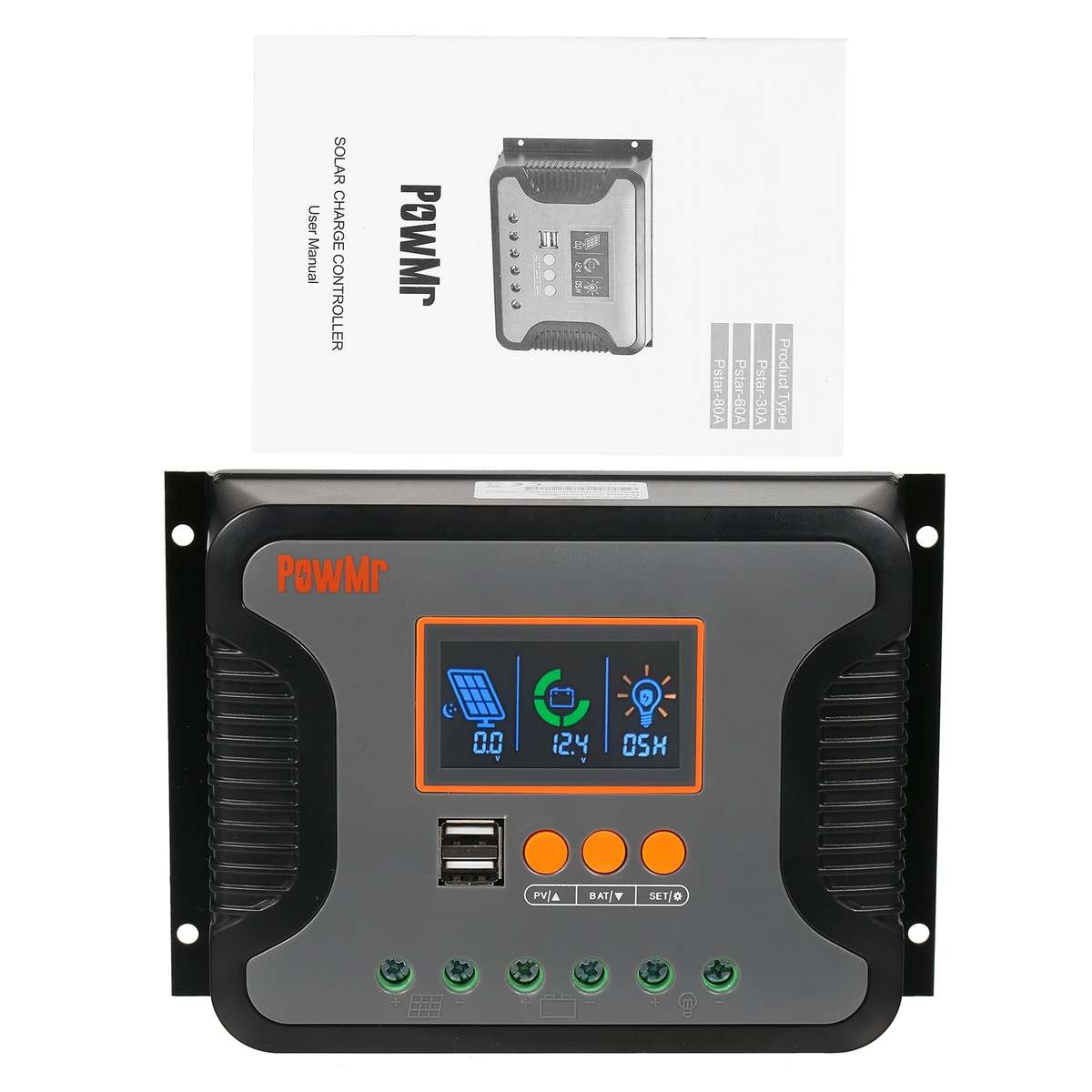

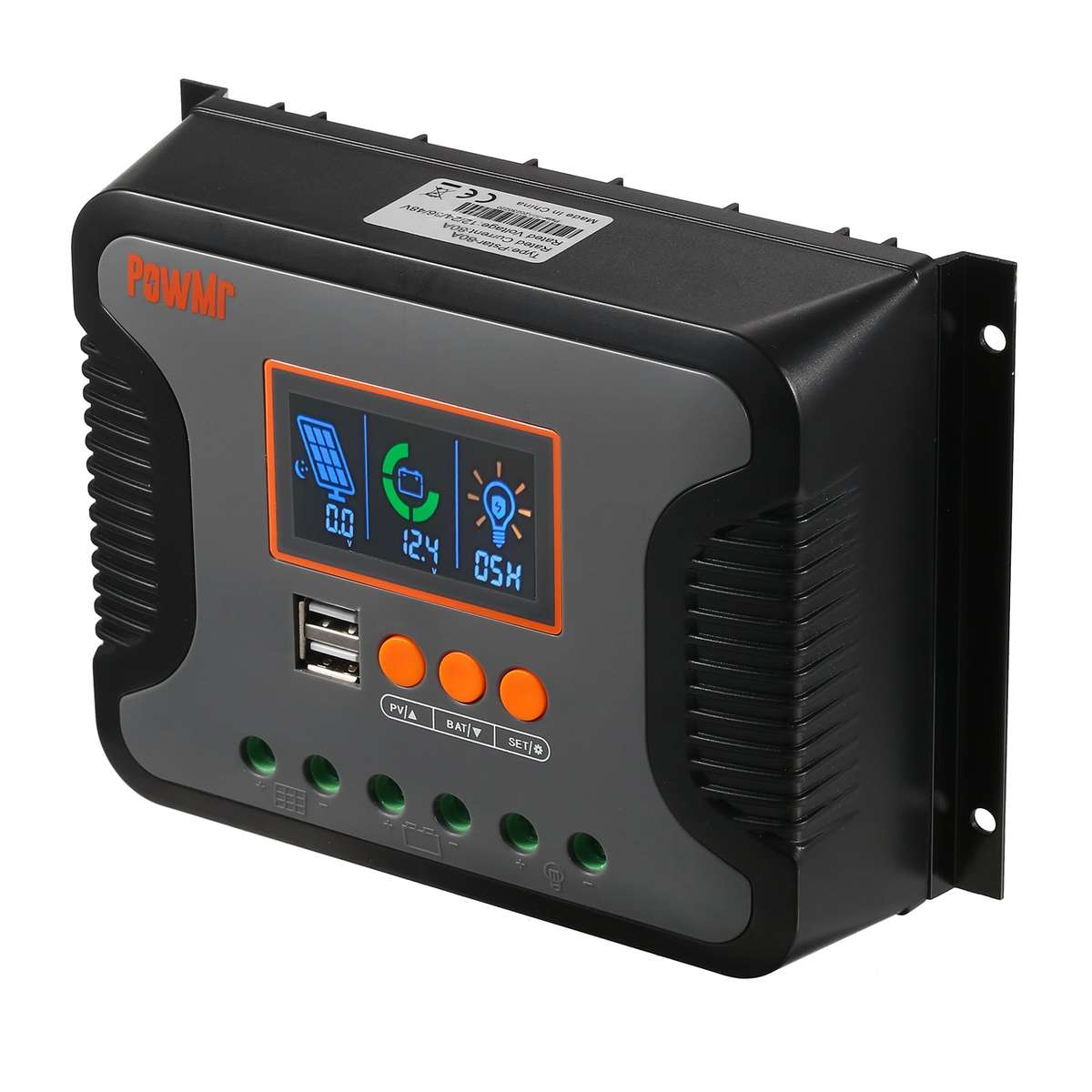

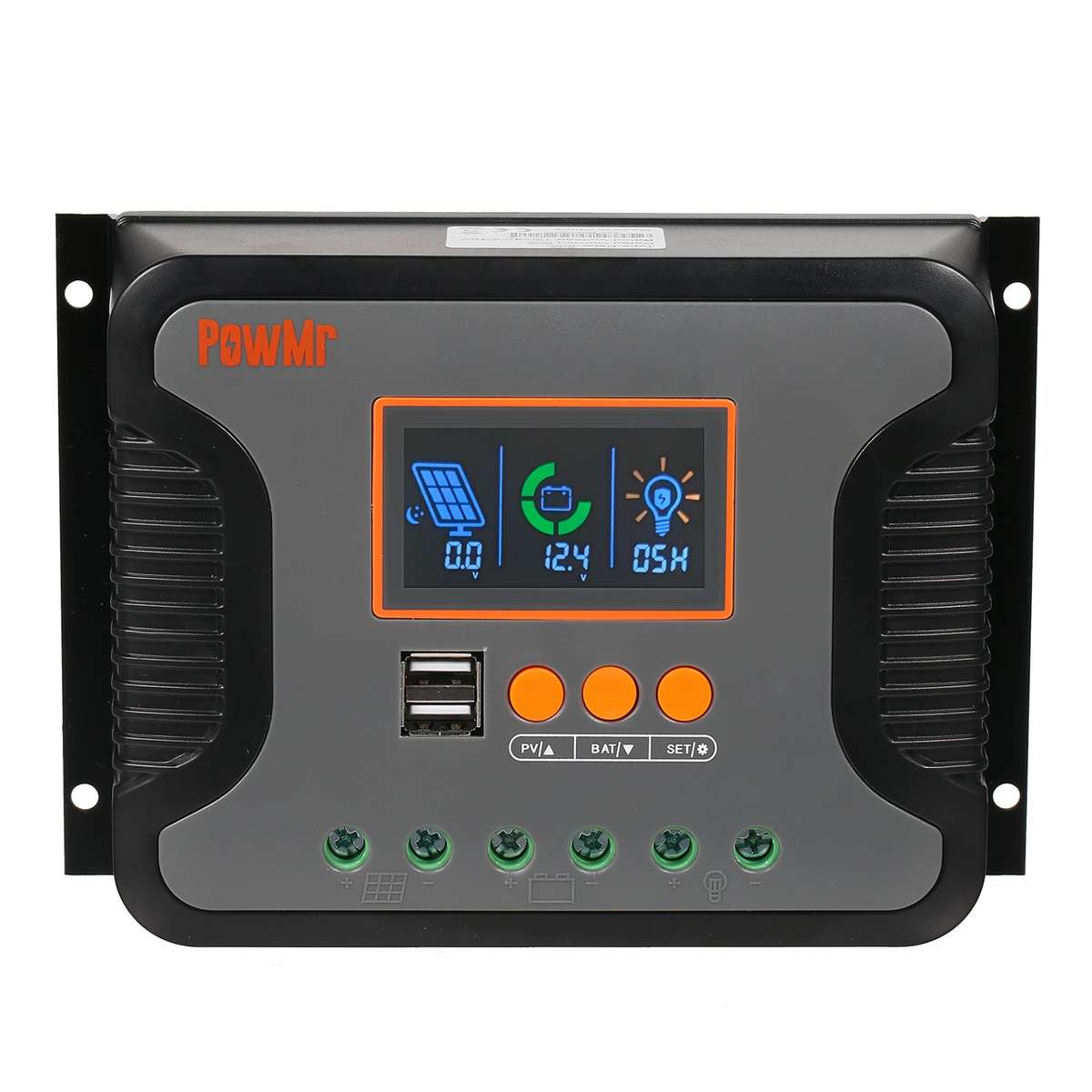

80A Solar Power Controller PWM Battery Charging Controller 12V-48V Lithium Battery Solar Charg

Features:
Integrated Charge Presets: Integrated charge presets combined with adaptive charge logic are well suited for most common battery types, such as LiFeP04, Gel and flooded lead-acid.
Flexible Application: Automatic identification of 12V/24V/36V/48V system voltage.
Multi-stage Charge Algorithm: The multi-stage charge algorithm is specifically engineered to optimise each recharge cycle and charge maintenance over extended periods.
Adaptive Boost Charge: Adaptive boost charge monitors the battery's response during initial charging and intelligently determines the appropriate boost charge duration for each individual charge cycle. This ensures that the battery is fully recharged regardless of the discharge level or capacity and avoids excessive time at the elevated boost charging voltage (that can accelerate battery aging).
Protection Against Overheating: When the equipment temperature exceeds 85ￂﾰC, the control automatically stops charging. Resume charging when the equipment temperature is 75 ￂﾰC.
Safety Assurance: Output short circuit protection, discharging protection, protection against reverse polarity connection.
Silent Operation: Totally silent operation since there is no cooling fan or moving parts, cooling is via natural convection.
Lithium Battery Compatible: Compatible with Li-ion (LiFePO.) batteries; when the battery type parameter is set to Lithium battery the charge cycle settings are altered to suit.
Warning: Do not charge Li-ion batteries if the battery temperature is below 0ￂﾰC.

Compatible with lithium-ion and lead-acid battery, support user-defined batteries.
Automatic identification of 12V/24V/36V/48V system voltage.
A variety of protection functions to ensure the normal operation of the device and extend the battery life.
Natural air cooling heat dissipation, to achieve totally silent operation.

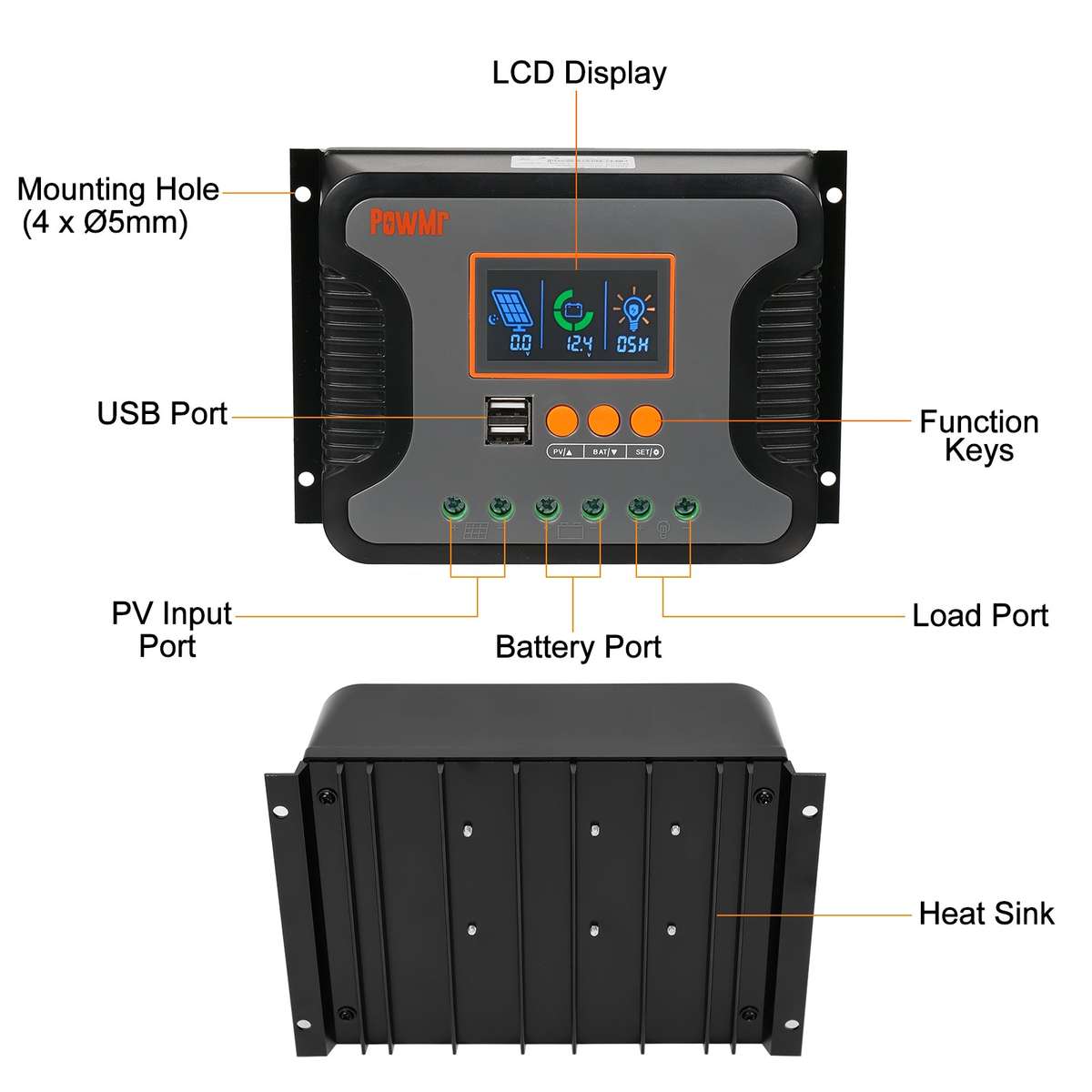

The 2.4-inch LCD screen enables real-time monitoring and parameter configuration.
Small size, light weight, easy and quick installation.
Built-in 2 USB ports with output of 5V and 2A.
User friendly setup, fast and easy commissioning via front panel LCD.

Specifications:
Model: Pstar-30A / Pstar-60A / Pstar-80A (Optional)

Pstar-30A
Rated Charging Current: 30A
Rated Output Current: 20A
Max. Input Power for 12V System: ￢ﾉﾤ360W
Max. Input Power for 24V System: ￢ﾉﾤ720W
Max. Input Power for 36V System: ￢ﾉﾤ1080W
Max. Input Power for 48V System: ￢ﾉﾤ1440W
Item Size: 187 * 94 * 49mm / 7.36 * 3.70 * 1.93in

Pstar-60A
Rated Charging Current: 60A
Rated Output Current: 35A
Max. Input Power for 12V System: ￢ﾉﾤ720W
Max. Input Power for 24V System: ￢ﾉﾤ1440W
Max. Input Power for 36V System: ￢ﾉﾤ2160W
Max. Input Power for 48V System: ￢ﾉﾤ2880W

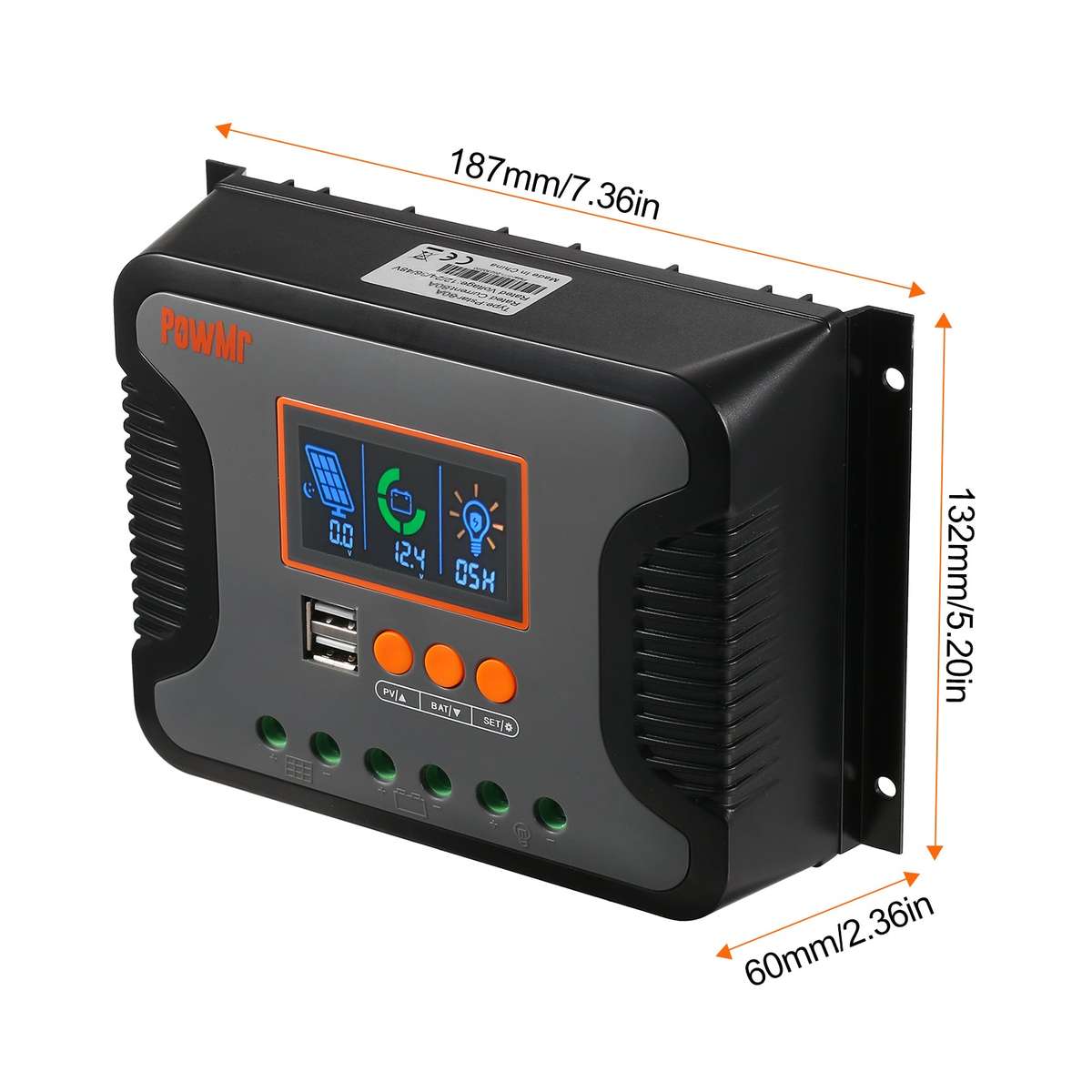

Item Size: 187 * 132 * 60mm / 7.36 * 5.20 * 2.36in

Pstar-80A
Rated Charging Current: 80A
Rated Output Current: 50A
Max. Input Power for 12V System: ￢ﾉﾤ960W
Max. Input Power for 24V System: ￢ﾉﾤ1920W
Max. Input Power for 36V System: ￢ﾉﾤ2880W
Max. Input Power for 48V System: ￢ﾉﾤ3840W
Item Size: 187 * 132 * 60mm / 7.36 * 5.20 * 2.36in

PV INPUT:
Max. Open Voltage of PV Module: 100V
PV Operation Voltage Range: >System voltage and ￢ﾉﾤ100V

CHARGING MODE:
Charging Technology: PWM
Charge Algorithm: 3-stages
Sel-consumption: ￢ﾉﾤ20mA
Nominal System Voltage: 12V/24V/36V/48V (Auto detection)

USB Interface: 5V/2A*2
Material: Metal
Protection Class: IP30
Operating Environment: -20~55￢ﾄﾃ, ￢ﾉﾤ90%(non-condensing)
Item Weight: 607g / 21.42oz
Package Weight: 714g / 25.19oz
Package Size: 21 * 14.5 * 7.5cm / 8.27 * 5.71 * 2.95in
