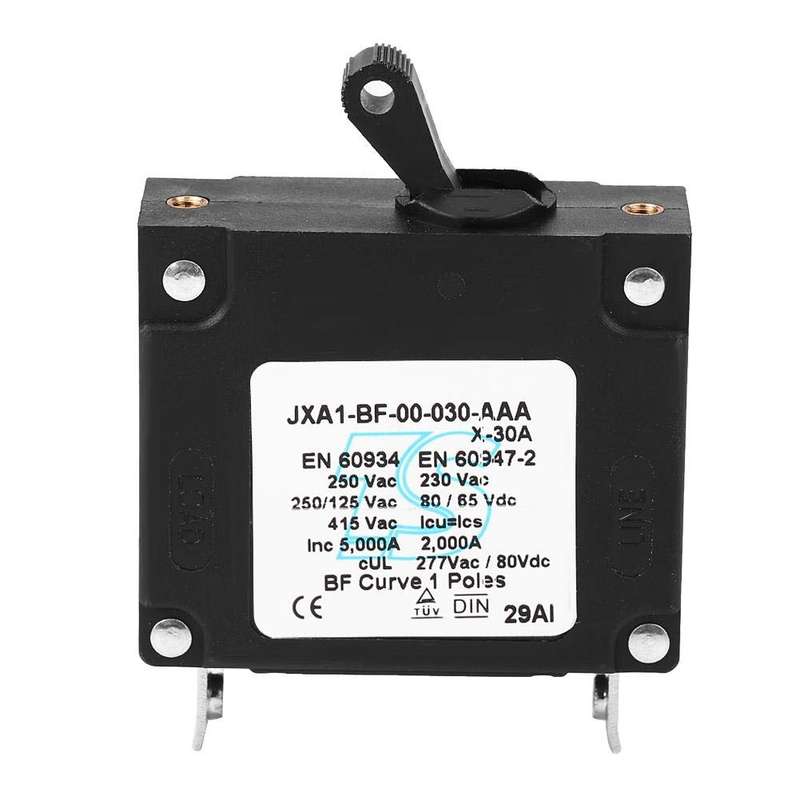

80V DC Overload Hydraulic Reset Circuit Breaker, Rated Current: 30A

TBD0605540704

1. Material: bakelite
2. Rated current: 15A/20A/25A/30A
3. Working voltage: 125/250 480VAC; 65/80 VDC
4. Scope of application: battery chargers, audio, cars, trucks, buses, ships, RV trailers, motors, etc.
5. Strong durability, not easy to age, reusable
6. Small size, does not take up space, can be used after connecting the wire
7. The shell is made of Bakelite, which is thermosetting and can avoid the deformation of the plastic shell caused by arcing of current
8. When the circuit is short-circuited and the circuit breaker is tripped, the reset handle can be manually pushed back after eliminating the circuit abnormality. Compared with fuses (such as fuses), the circuit breaker can be reused and the switch can be manually pushed down to cut off the circuit according to your application requirements
9. Size: 51x44x19mm
