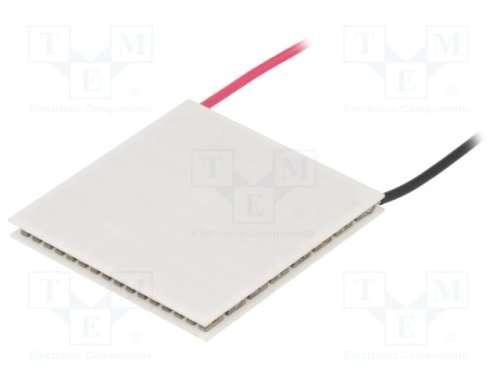

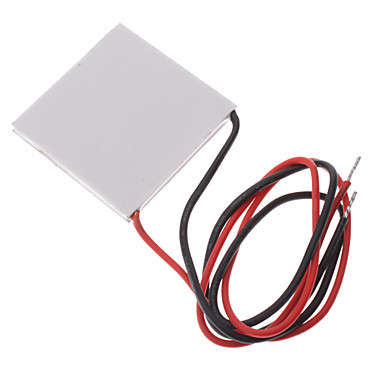

84W Semiconductor
Thermoelectric Cooler Heater Peltier (White)..!
Product Information
Key Features
Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler.These devices must be used in conjunction with a heat sink to avoid burned
One side is cooling (printed side) and another side is heating (clear side) when working.
Please radiating the heating side, avoid using under no-radiating condition over 2s
Coated with thermal grease when install the device
Specifications
Color: White
For: Semiconductors, DIY
Material: Plastic + Ceramics
Module Type: Peltier
Rated voltage: 12V
Max. Operating Voltage: 15.4V
Max. Operating Current: 7.5A
Body Dimensions: 40 x 40 x 3.6mm
Max. Heat Pump Capacity: 84W
Material: Al2O3

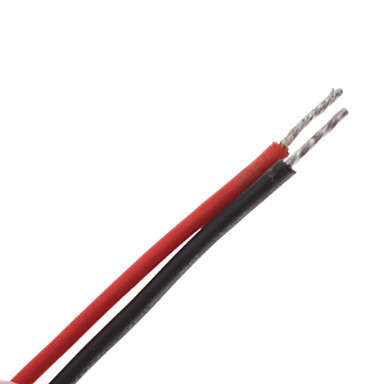

Wire Size: 16AWG
Cable Length: 150mm
Contact Material: BiSn
Max. Temperature Difference: 68'C
Operating Temperature: 138'C max.
Resistance: 1.4 Ohm
Wire Insulation Material: Teflon
Gross Weight: 0.02kg
Package Contents
1x Peltier
Click HERE for product documentation
