84X48 LCD DISPLAY MODULE

WITH WHITE BACKLIGHT FOR ARDUINO, AVR, PIC OR STM32


Product information

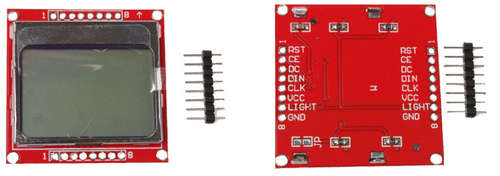

This display module uses the commonly available 84x48 Nokia 5110 LCD. It is capable of displaying 4 lines of text or monochrome graphics. It uses serial interface to communicate with the microcontroller greatly reducing the number of microcontroller pins used. Eight signal lines including VCC and GND are used. Transfer rates of up to 4Mbps enable full speed data without a waiting time. The display also has a low current requirement. The normal working current is less than 200uA and the display has a power-down feature.

Specifications
Power supply voltage: 2.7 - 3.3V max
Logic Input level: 2.7 - 3.3V max
Backlight supply voltage: 3.3V max
Module size: 43.6 x 43.1mm

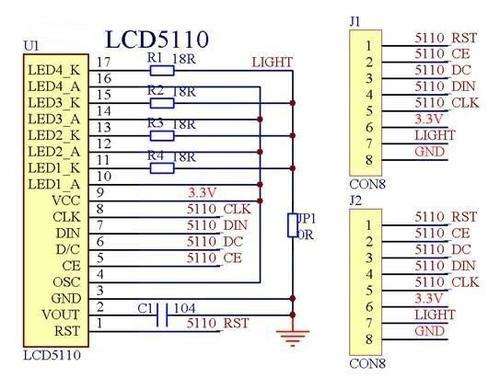

Pin connections:
1. RST - reset
2. CE - chip selection
3. DC - data/commands choice
4. DIN - serial data line
5. CLK - serial Clock Speed
6. 3.3V - VCC
7. LIGHT - backlight control terminal
8. GND - negative

Package includes
1 x 84x48 LCD Display Module with White backlight
