85KG.cm Motor Aluminum Alloy High Precision High Torque Programmable 360 Magnetic Encoder RS485 Serv

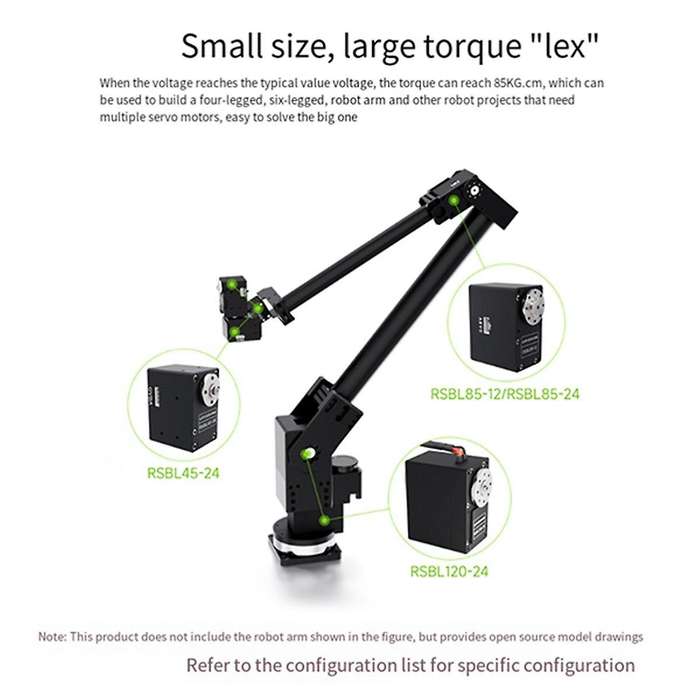

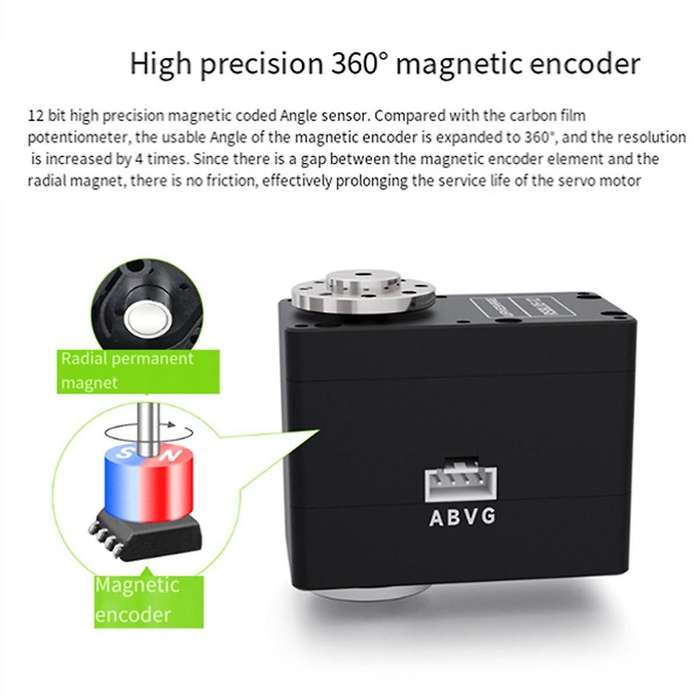

1. 85kg.Cmrs485 Metal Servo Motor, Metal Shell Brushless Motor, 360 Magnetic Encoding Servo Motor2. Sturdy and Structural Design, All-Aluminum Alloy Shell + Cnc Precision Manufacturing, Improves The Heat Resistance, Dimensional Stability, Rigidity and Mechanical Performance Of The Servo Motor Shell3. Brushless Motor, Steel Gearbox, Equipped with High-Quality Brushless Motor and Steel Gearbox to The Strength and Durability Of Servo Motor Power Transmission4. High-Precision 360 Magnetic Encoder, Using 12-Bit High-Precision Magnetic Encoding Angle Sensor. Compared with Carbon Film Potentiometers, The Usable Angle Of Magnetic Encoders Is Expanded to 360, and The Resolution Is Increased By 4 Times. Since There Is A Space Between The Magnetic Encoder Elements and The Radial Magnet, There Is No Friction, Which Effectively Extends The Service Life Of The Servo Motor.5. When The Voltage Reaches The Typical Voltage, The Locked-Rotor Torque Can Reach 85kg.Cm, Which Can Be Used to Build Four-Legged, Six-Legged, Robotic Arms and Other Robot Projects That Require Multiple Servo Motors, Easily Handling Large Robots.Product model:B:RSBL85-24Rotation angle:360(0-4095)Position sensor resolution:0.088 (36014096)Mechanism limit angle:NoneGear form:high-precision steel (reduction ratio 1:254)Encoder type:360 magnetic encoderID range:0-253Baud rate:38400bps-1Mbps (default 1Mbps)Feedback:Position (Position); Load (Load); Speed (Speed); Input Voltage (Input Voltage); Operating Current (Current): Operating Temperature (Temperature)Stalled rotor torque:85KG.cm@24VWorking voltage:9-24V (typical value 24V)Air cutting speed:0.154sec\/60degree 65RPMNo-load current:250mAStalled rotor current:5.6AKt constant:25KG.cm\/ANote:The picture is a high-definition rendering. Different Batches May Have Differences In Product Appearance, Color, and Printed Characters, Which Will Not Affect The Use.Colour:As ShownMaterial:PC+ABSPackage Contents:1 * Servo Motor2 * Metal Bracket1 * Connecting Cable1 Set * Screw Installation Only the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
