Description:
The instrument adopts the cross coil to drive the pointer, the durability is good, and the seismic performance is good.
Protection grade is IP67, the whole body is completely waterproof.
Excellent antifogging function.
With polarity reverse protection function.
Stainless steel bezel with curved glass.
The moving magnet gauge need to connect to extra resistors for 8V-16V working voltage.
Specification:

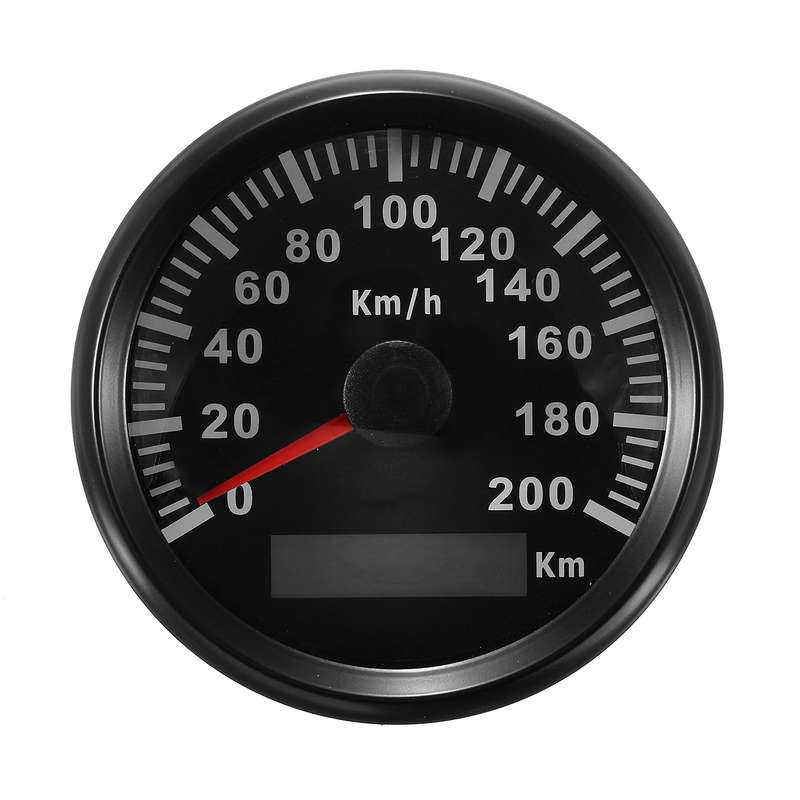

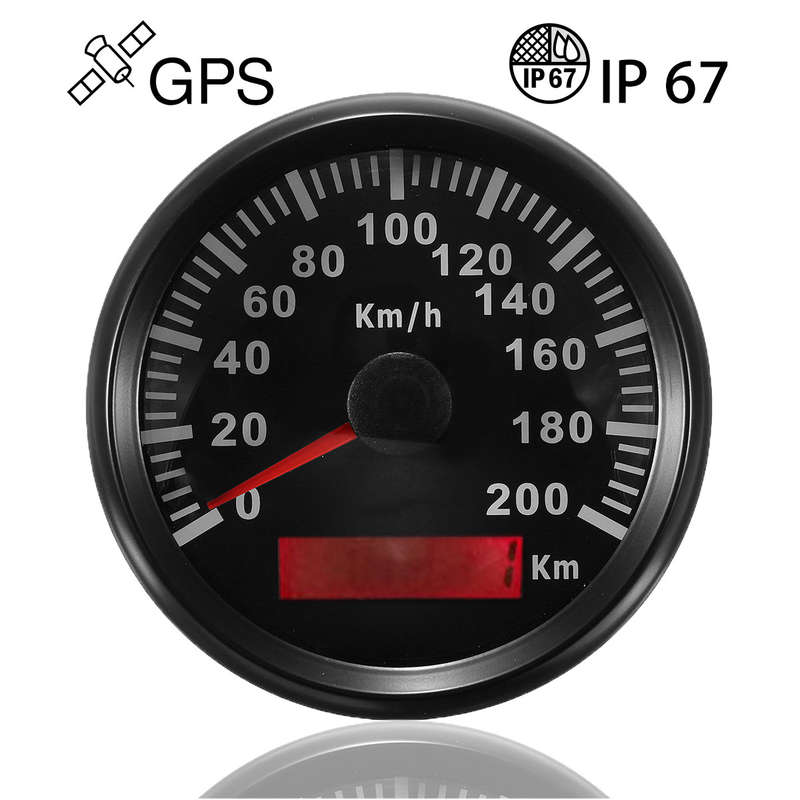

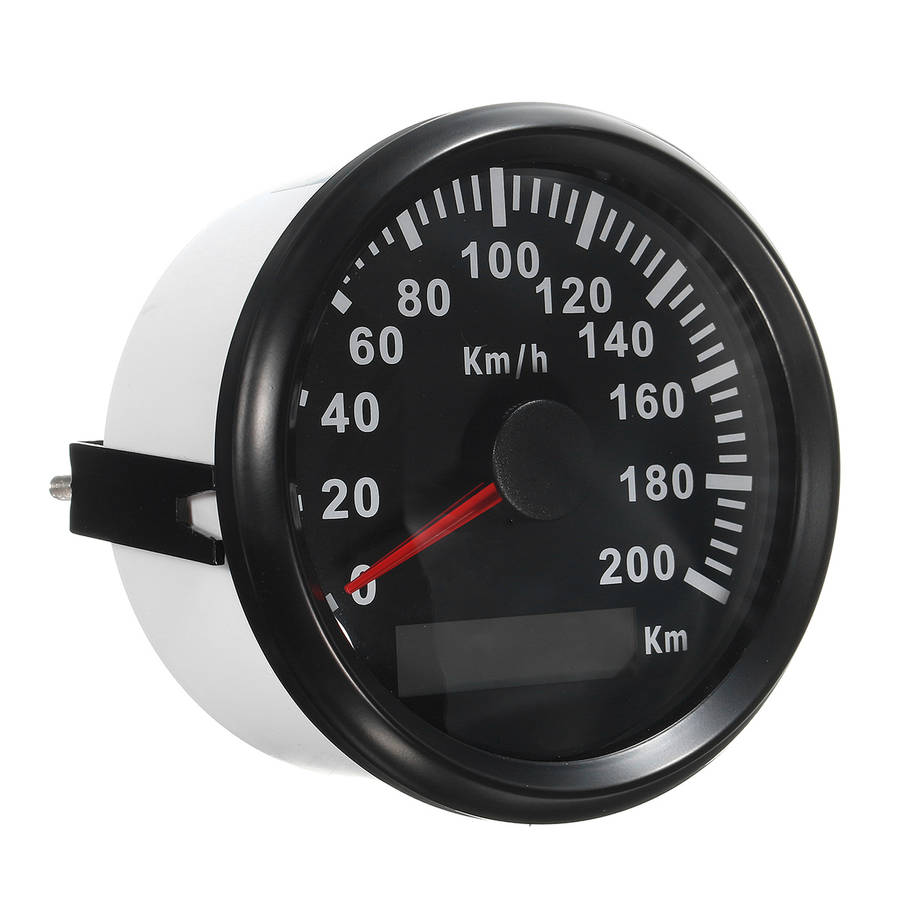

Name :GPS Speedometer
Model:568801
Material: PVC + Stainless steel + Glass
Panel color:Black
Fixing dimension: 85mm
Cable length:3.9m
Working voltage:9~32VDC
Working current: ¿100mA
Operating temperature: -30°~75°
Storage temperature:-40°~85°
Levels of protection: IP67
Installation Instructions:
1.Opening a hole in the panel (your cabin board and dashboard) with a diameter of 85mm,Insert meter into the hole,The panel corresponding to the instrument panel is marked with a convex table,and open a small notch in this location,To ensure that there is at least 85 mm (3 3/8) of the instrument panel at the back of the instrument.

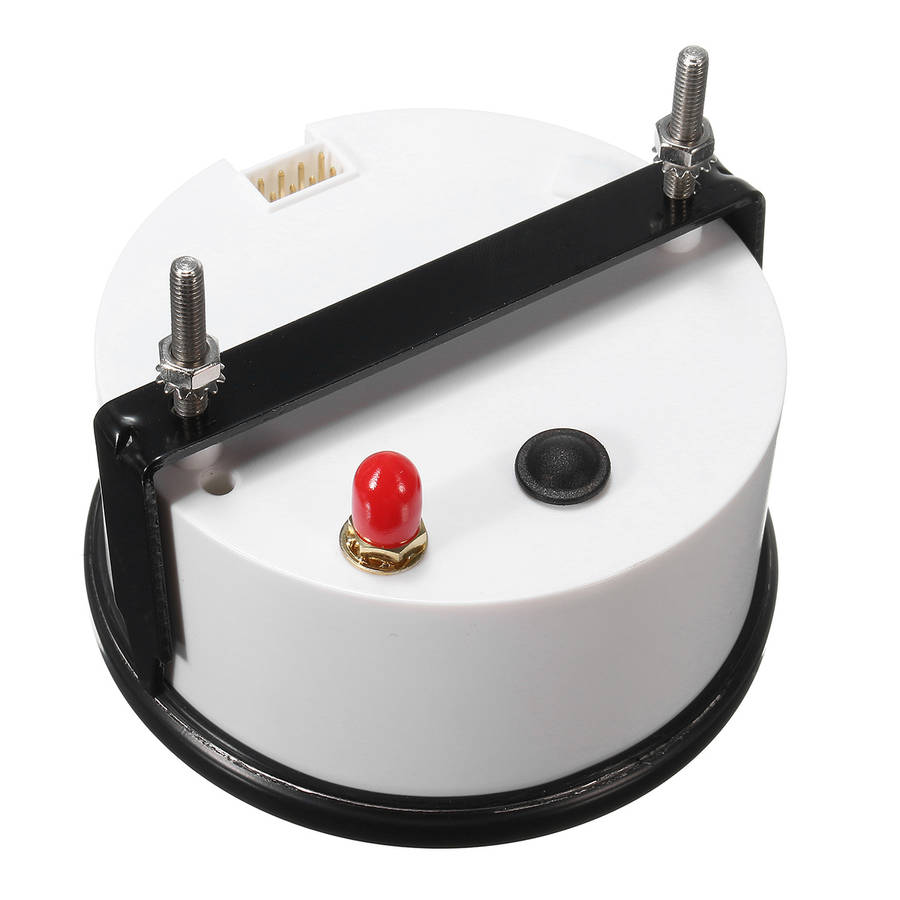

2.After the instrument is mounted in the panel,Screw down with a fixed ring.
3.Connect the wire,the instrument housing is directly connected to the 12/24v power supply.

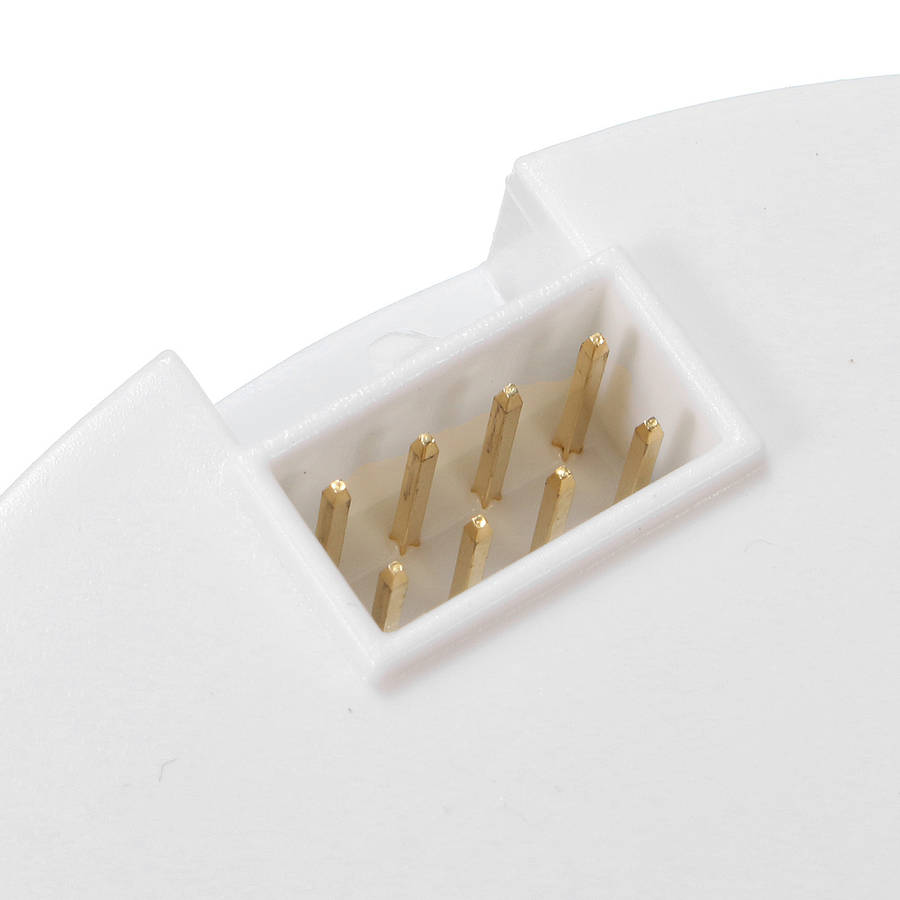

4.Insert wire harness,Firmly locked in the table.
Note:
1.Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
2.Please allow little differs due to manual measurement.

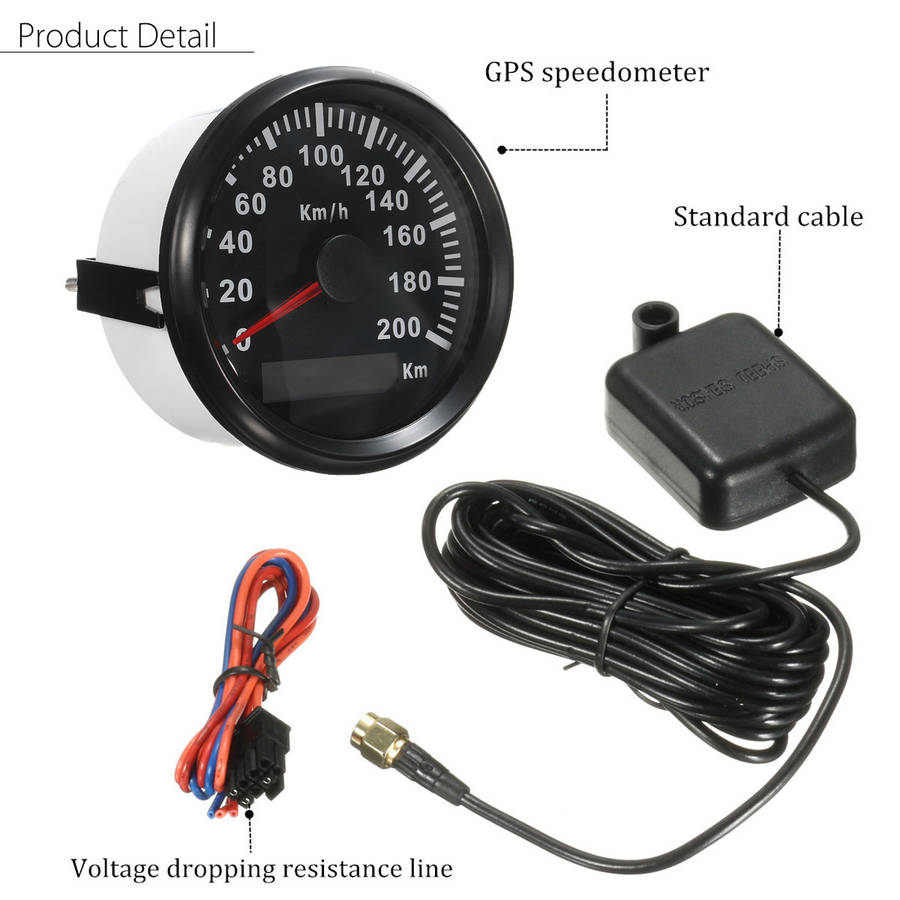

Package Included:
1 X GPS Speedometer

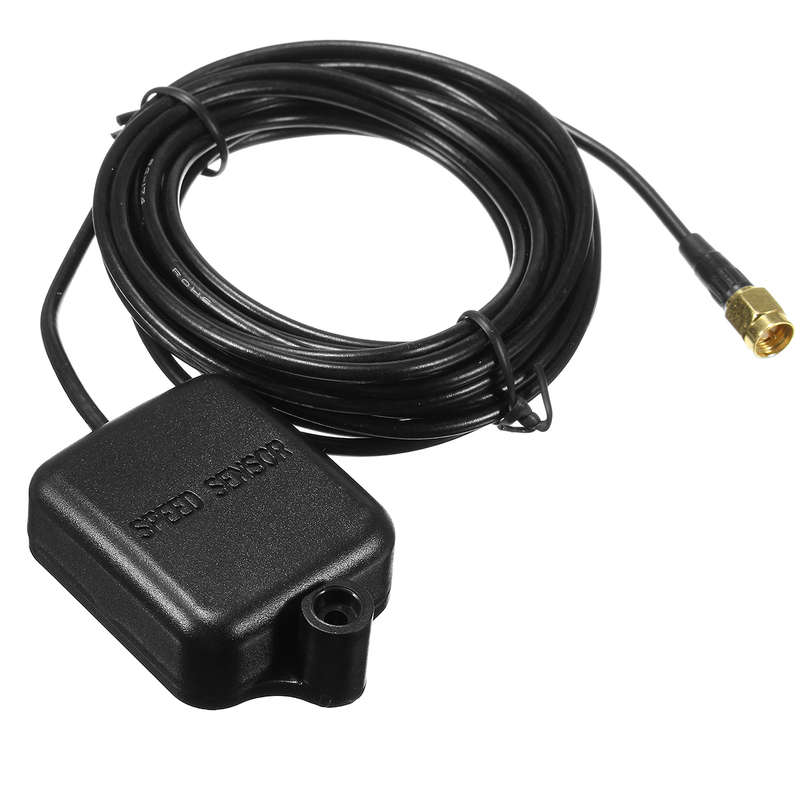

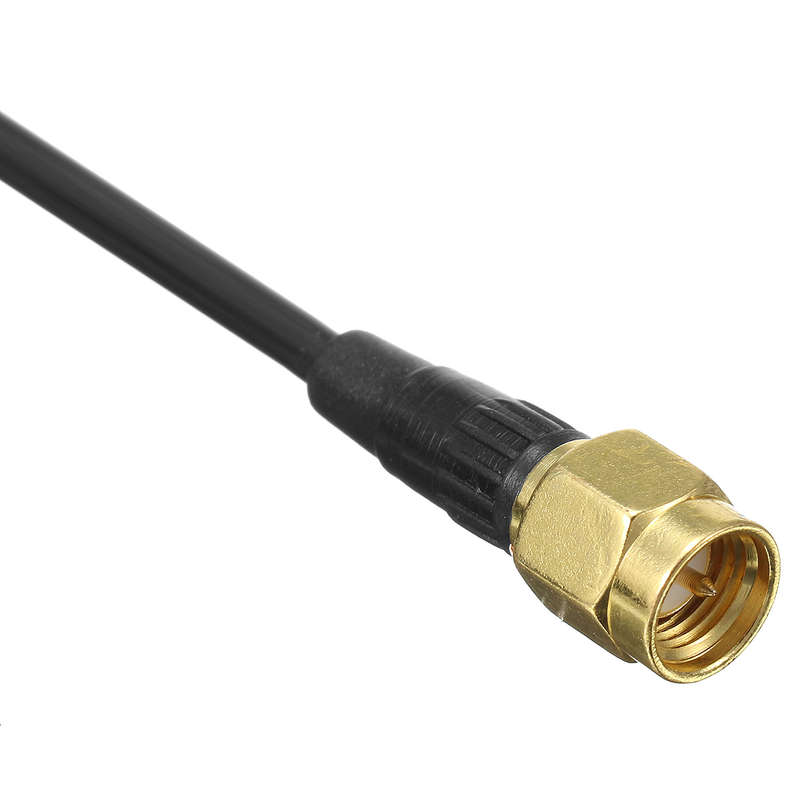

1 X Standard Cable

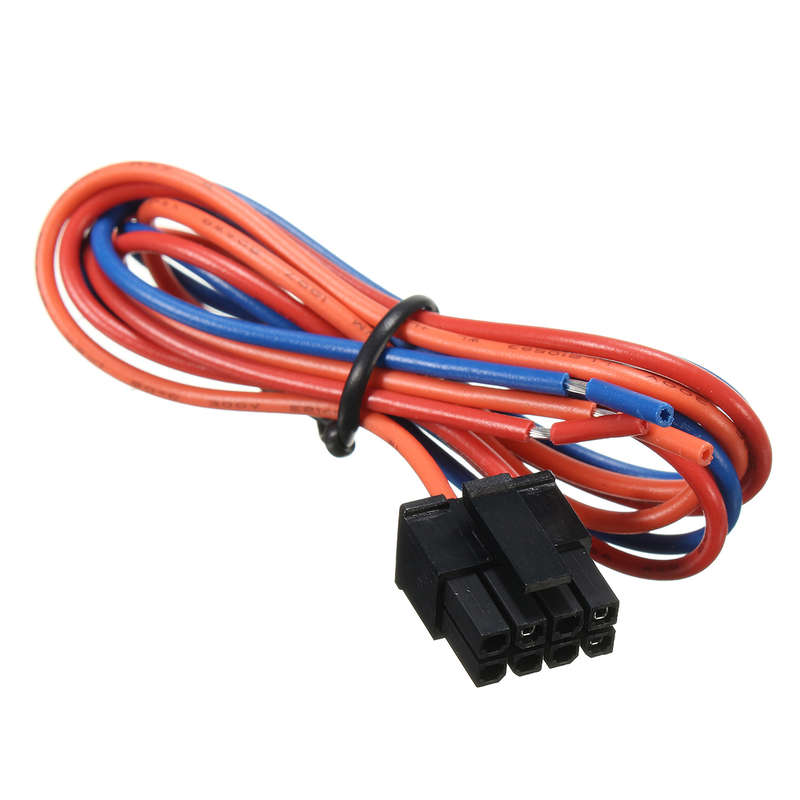

1 X Voltage Dropping Resistance Line
1 X Manual
