Specifications:
MCU: ESP32-S3FN16R8 Dual-core LX7 microprocessor
Wireless Connectivity: 2.4 GHz Wi-Fi & Bluetooth 5 (LE)
Development Support: Arduinos, PlatformIO-IDE, MicroPython
Memory: Flash: 16MB, PSRAM: 8MB
Power: Battery ADC PIN: IO04
Display: 2.8-inch ST7789 SPI Interface IPS LCD, 320 x 240 resolution, full viewing angle
LoRa Transceiver (Optional): SX1262 LoRa, Transmit Power: +22dBm, Frequency Options: 433/868/915 MHz
Onboard Functions: Trackball, Microphone, Speaker
Ports & Add-ons: TF Card slot, Reset/Mic buttons, Grove Seat
Features:
1. Multi-functional Design for IoT Development
Integrated with Wi-Fi, Bluetooth 5 LE, and optional LoRa communication, this board is ideal for creating IoT projects requiring wireless data transmission and remote communication adaptability.
2. High-performance ESP32-S3 Chip
Equipped with a dual-core LX7 microprocessor and generous memory resources (16MB Flash, 8MB PSRAM), the T-Deck ensures smooth operation for demanding applications.
3. Vivid 2.8-inch IPS Display
The ST7789 SPI Interface IPS LCD offers vibrant visuals, with a resolution of 320 x 240 and a full viewing angle convenient for user interaction or real-time data monitoring.
4. Enhanced Interaction with Trackball and Keyboard
The onboard trackball and compact QWERTY keyboard provide precise navigation and efficient control for developers and end-users operating complex settings.
5. LoRa Connectivity for Long-range Communication
With an optional SX1262 LoRa transceiver module, the development board supports low-power wide-area communication up to 915 MHz, making it suitable for remote sensor integrations.

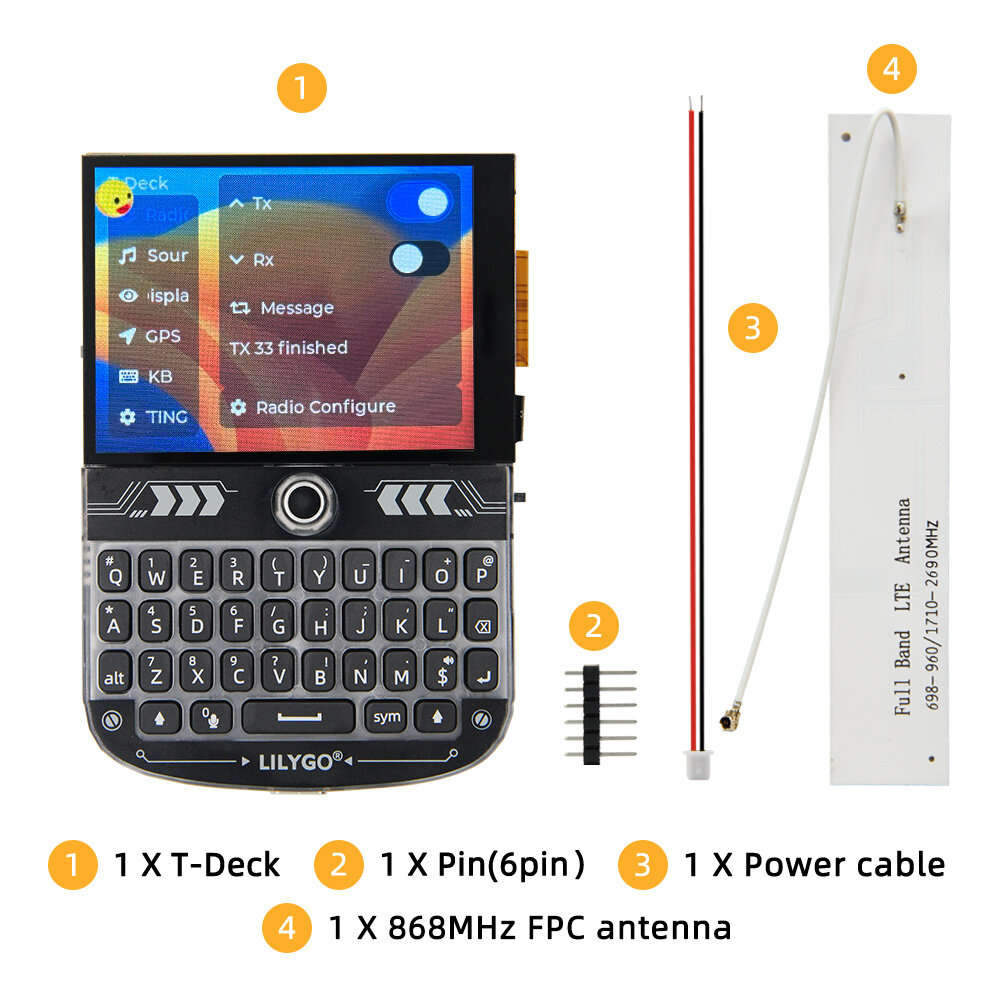

Package Included:
1 x T-Deck Development Board
1 x Pin (6-pin connector)
1 x Power cable
