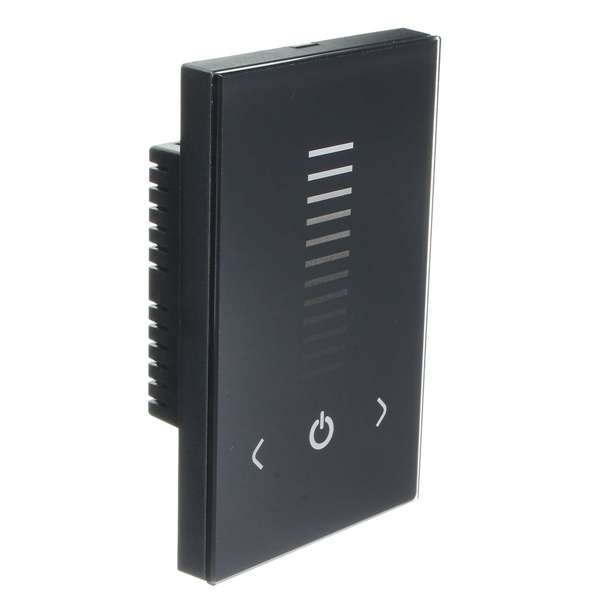

8A Touch Panel Controller Dimmer Wall Switch 12-24V For LED Strip Light Lamp (COLOR.: BLACK)

SELECTED OPTION:
COLOR.: BLACK

Feature:

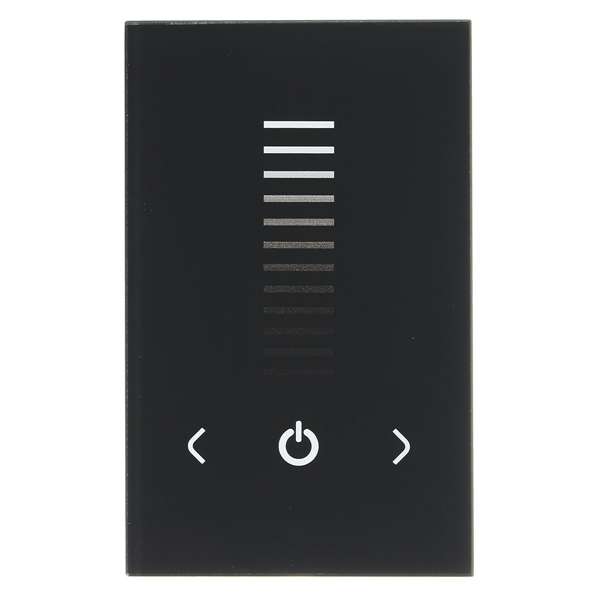

Touch panel is made of glass, fashion, smooth and against scratches

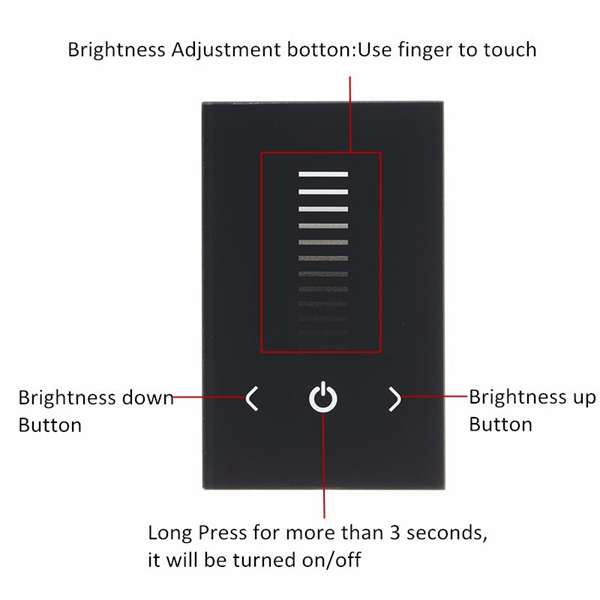

Quickly increase/reduce 255 levels static state brightness
Has the wiring convenient, use the advantages of simple.
Compatible with most 12V-24V single color LED light strips
Adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake.
Specification:
Color: White/Black
Working temperature:-20~60a
Power supply voltage: DC 12-24V
Output: 1 channel
Connect way: common anode
Output current:<8A
Output power: 12V:<96W, 24V:<192W
Static power consumption:<1W
Net weight:199g

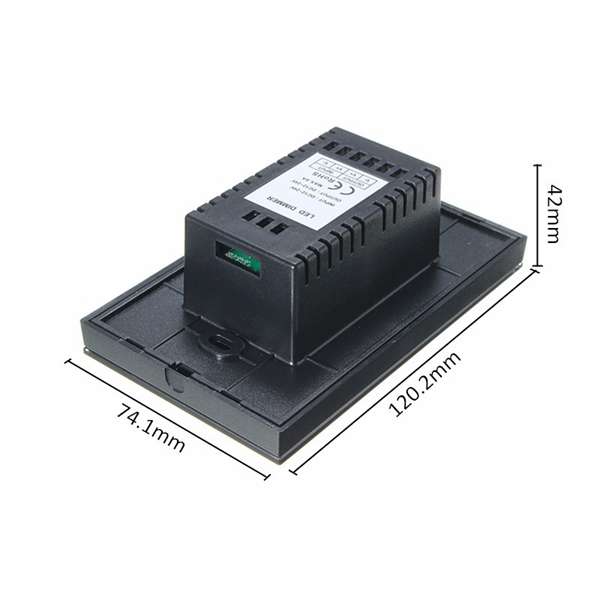

External dimension: approx 120.2*74.1*42mm

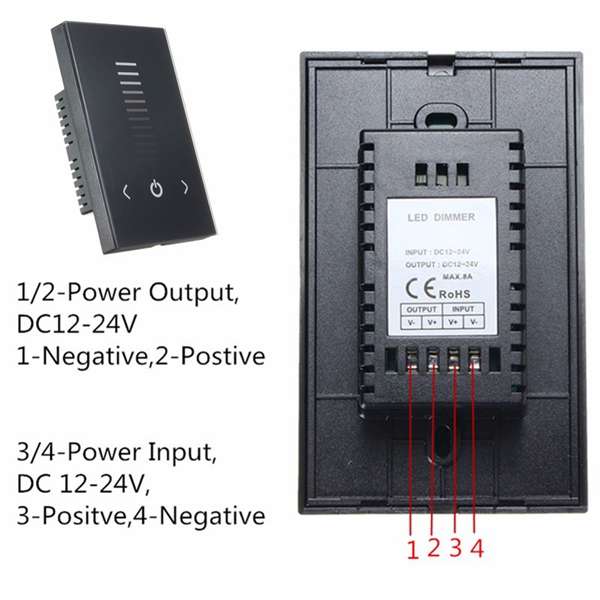

Interface Instruction:
Input: power input pins, input voltage range is 12-24V
Output: power output pins, output voltage is 12-24V, output maximum current is 8A;

Package included:
1 x Touch Pannel Controller
1 x User Mannul
