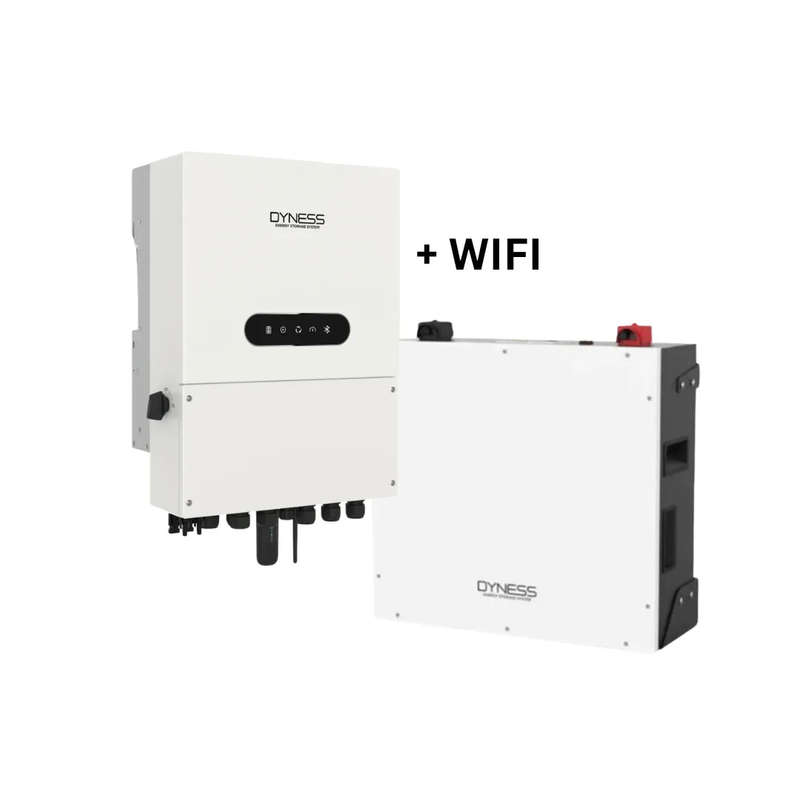

8KVA Dyness Hybrid Inverter (Single Phase) + 5.12kWh Dyness Lithium Ion Battery BX51100

8KVA Dyness Hybrid Inverter (Single Phase) + 5.12kWh Dyness Lithium Ion Battery BX51100

ONLINE DEAL ONLY ! CAN BE ORDERED FOR IN STORE COLLECTION.

Dyness Products

Dyness 8KW Single Phase LV Hybrid Inverter + Wifi

The DYNE 5.0/6.0/8.0L-1P-A series is designed for residential hybrid systems. The inverter can work with Dyness low-voltage lithium-ion battery DL5.0X/DL5.0C/ Powerbox Pro to maximize self-consumption and provide backup power if the grid fails and there is not enough PV power to cover load demand.

Product Features:

• Generator connectivity with multiple input methods and automatic generator On/Off control
• Automatic UPS switching(<4ms)
• Supports peak shaving control in both "self-use" and "generator" mode
• Up to 135A(5.0/6.0K) and 190A(8.0K) max charge/discharge current
• 6 customizable charge/discharge time settings
• 10-second 200% surge power backup overload capability
• Supports 1ph and 3ph flexible connection with max 36kW (5.0/6.0K) and 48kW(8.0K) in parallel

Specifications:

• Input DC (PV side):
  • Recommended max. PV power: 12.8 kW
  • Max. input voltage: 600 V
  • Rated voltage: 300 V
  • Start-up voltage: 90 520 V
  • Max. input current: 32A/20A
  • Max. short circuit current: 36A/30A

• Battery:

  • Battery type: Li-ion
  • Max. charge/discharge power: 8 kW
  • Max. charge/discharge current: 190 A
• Output AC (Grid side):
  • Rated output power: 8 kW
  • Max. output current: 40 A
  • Max. input current: 50 A

• General

  • Dimensions(W*H*D): 405*560*215 mm
  • Weight: 27kg
  • Ingress protection: IP66

Battery Specs

COMBO INCLUDES
