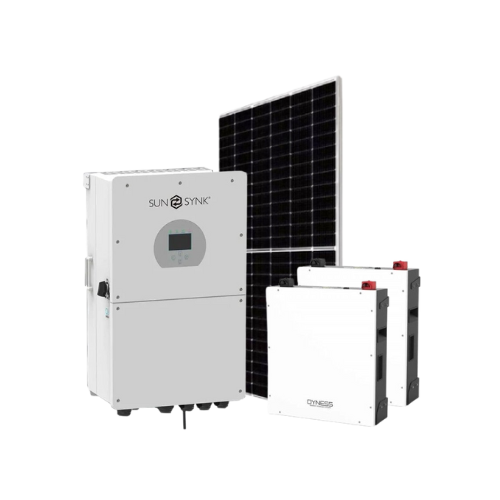

8kva Sunsynk & 2 x 5.1kw Dyness with 12 x 550w Canadian solar panels Combo

's break down the potential savings and generation capacity of your solar system compared to Eskom's rate of R4.18 per kWh

Solar System Savings

- A typical 5kW solar system can save you around R2,090 per month, assuming an average daily electricity consumption of 500 kWh and an Eskom tariff of R4.18 per kWh.

- Over a year, this translates to a saving of approximately R25,080.

- With solar power, you can expect to save up to 80% on your electricity bill, depending on your usage patterns and system efficiency

Generation Capacity

- A 5kW solar system can generate around 500-600 kWh of electricity per month, depending on factors like sunlight hours and panel efficiency.

- An 8kW system, you can generate even more electricity, potentially saving you around R2,490 per month or R29,880 per year

Comparison to Eskom

- Eskom's tariffs are expected to rise significantly over the next few years, with some estimates suggesting an increase to R5.23 per kWh. In contrast, solar power can provide a stable and predictable source of energy

- By investing in solar power, you can reduce your reliance on Eskom's grid and protect yourself from future tariff hikes.

Key Benefits

- Reduced Electricity Bills  Generate your own electricity and save money on utility bills

- Energy Independence : Become less reliant on the national grid and enjoy a stable energy supply

- *Environmental Benefits : Harness clean and renewable energy to reduce your carbon footprint

- *Increased Property Value  Solar panels can boost your property's value and appeal to potential buyers

Keep in mind that the actual savings and generation capacity of your solar system will depend on various factors, including your energy usage patterns,

Battery Input Data

Battery Type: Lead-acid or Li-lon

Battery Voltage Range (V): 40-60V

Max. Charging Current (A): 190A

Max. Discharging Current (A): 190A

Charging curve: 3 Stages/Equalization

External Temperature Sensor: Optional

Charging Strategy for Lithium Battery: Self-adaption to BMS

AC Output Data

Rated AC Output and UPS Power (W): 8000W

Max AC Output Power (W): 8800W

Peak Power(off-grid): 2 times of rated power, 10 S.

AC Output Rated Current(A): 33.4A/35A

Max.AC Output Current(A): 36.7A/38.5A.

Max Continuous AC Pass-through(A): 50A.

Output Frequency and Voltage: 50/60Hz; 120/240Vac(split phase), 208Vac(2/3 phase), 230Vac(single phase)

Grid Type: THD<3%(Linear load<1.5%).

Current Harmonic Distortion: THD<3% (Linear load<1.5%).

Efficiency

Max. Efficiency: 97.60%

Euro Efficiency: 97.00%

MPPT Efficiency: 99.9

Certifications and Standards

Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727

Safety Regulation: IEC62109-1, IEC62109-2

EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B

This system can power the following appliances:

3x LED Tv

50 led Lights

Decorder

Cell Phones

Wifi Router

2 x Fridge

Chest Freezer

Computers

Fan

Kettle

Microwave

The following appliances can also be used , but it is advisable to use them during the day when the sun is peak as

Iron

Pool Pump

Washing Machine

3 x air conditioner or borehole pump

1x geyser on a timer

At night on an approximate load excluding ( iron ,kettle, microwave, pool & washing machine, air conditioners, borehole pump) , the battery will last around 8 to 12 hrs

Dyness 5.12kWh Block Lithium-ion Battery

BX51100 lithium iron phosphate battery system is a standard battery system unit, customers can choose a certain number of BX51100 according to their needs, by connecting parallel to form a larger capacity battery pack, to meet the users long-term power supply needs. The product is especially suitable for energy storage applications with high operating temperatures, limited installation space, long power backup time, and long service life.

Dyness 5.12kWh BX51100 Lithium-ion Battery, model BX51100 LFP Module pack comes with a BMS battery management system that protects against overcharging, over-discharging and short circuits. The Dyness BX51100 5.12kwh lithium battery delivers continuous output power for improved performance and dependability.

The Dyness 5.12kwh BX51100 lithium battery, our newest energy storage solution for renewable energy systems. BX51100 Dyness 5.12kwh is the perfect power backup.

Less battery self-discharge, then recharging period can be up to 10 months during the

No memory effect so that battery can be charged and discharged slowly.

With a wide range of temperatures for the working environment, -20 ~ +55, circulation span and discharging performance are well under high temperature.

Less volume, lighter weight.

Canadian Solar 550Watt Mono Solar Panel

Canadian Solars Mono PERC Modules take the best of 2 technologies and combine them into one. Mono-crystalline cells are manufactured from high-quality silicon crystals which have better performance in lower light, longer lifespan, and higher efficiency rates.

Traditional solar cell technology incorporates an emitter layer on the front surface and a black coating on the rear side of the panel. The latest method, Passivated Emitter and Rear Cell (PERC) uses dielectric passivation film on the rear surface of the solar cells. The newer method, Mono PERC, can absorb sunlight on the front surface. As well as reflected light on the surface. This increased absorption allows for more of the suns energy to be harnessed.

Module power

Module power up to 550W

Module efficiency up to 21.5 %

Up to 4.5 % lower LCOE

Up to 5.6 % lower system cost

Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation

Compatible with mainstream trackers, cost-effective product for utility power plant

Better shading tolerance
