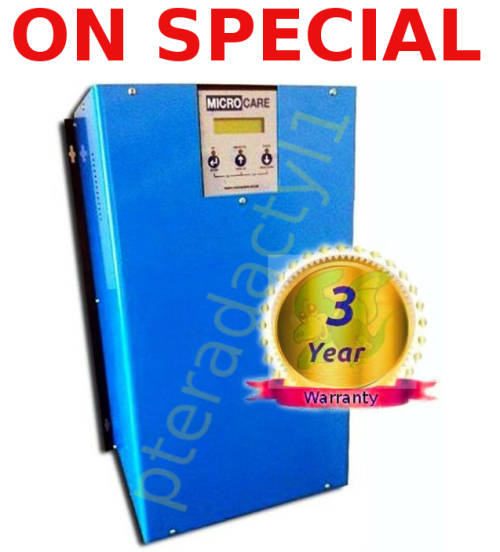

8kw 48v Pure (True) Sine Wave Inverter with charger (UPS) Bi-Directional by MICROCARE

8kw 48v Pure (True) Sine Wave Inverter with charger (UPS) "Bi-Directional"

This is a Single Phase inverter.

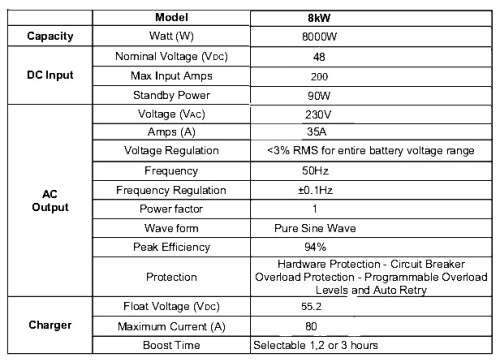

Quick specs Output AC volts 230V, Output AC Amps 35A, Charger amps 80A

Note: If you are going to want to use this unit later on with any of the Microcare peripherals eg: the battery monitor please order the model with the communication card which costs an additional R550.00. If the comms card is fitted only later on it can only be done at the supplier and you will have to return the inverter to them for the fitment.

Batteries are not included with this item.

Precautions:

The Inverter is a wall mount model and must not be installed near water or in damp environments or be exposed to direct sunlight or near a heat source. Ventilation openings of the inverter's casing must not be blocked. Unit must not be exposed to corrosive gases.

The inverter AC output must be connected to an earthed DB panel. Battery Cables must not be less than 35mm² and as short as possible.

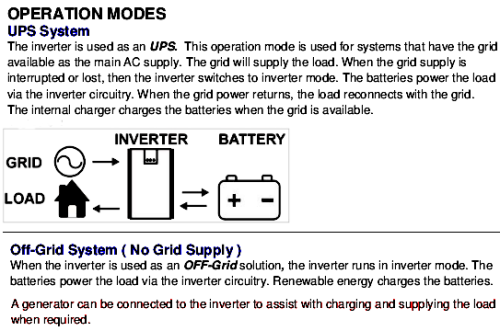

If a 220vac supply is connected to the inverter and it is to be used as a UPS,the inverter can only supply its rated power i.e.: 5kw

PACKAGE CONTENT:

8kw inverter 48V  & a User Manual.

Order Lead Time: From receipt of your payment approx 5 - 7 working days before order will be ready for shipping.

For other SOLAR items please see my listings Electronics, other electronics.
