Details:
1. Material: ABS+metal frame
2. Weight: about 600g/set
3. Size: about 18x12x9 cm/set
4. Power supply voltage: 12V

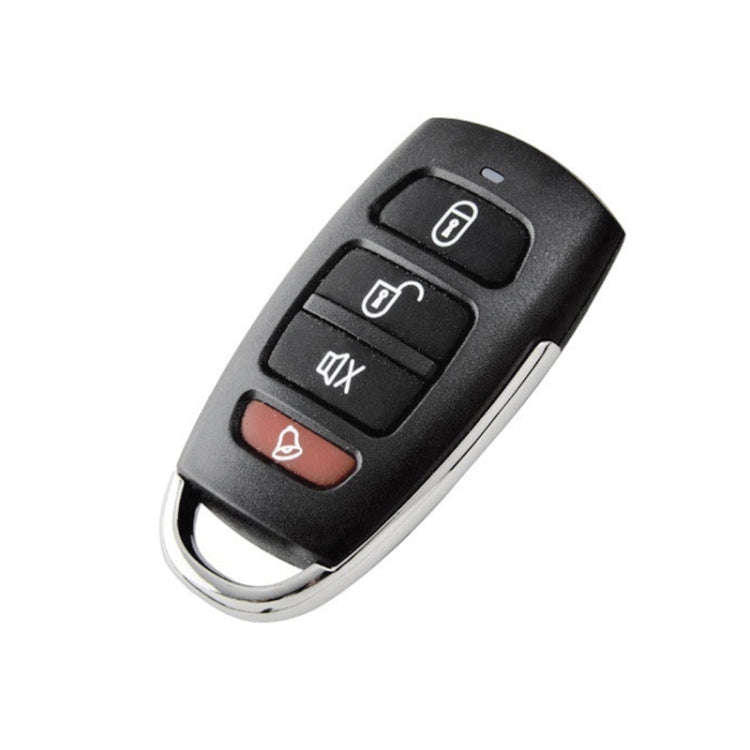

5. Remote control power supply: with 2 CR2016 6V button batteries
6. Operating frequency of the remote control: 433MHZ
7. Applicable models: common for 12V models
8. Features: dual remote control configuration, waterproof and moisture-proof, no screw position direct buckle, industrial-grade chip, stable performance, simple installation, convenient use, environmentally friendly material, durable

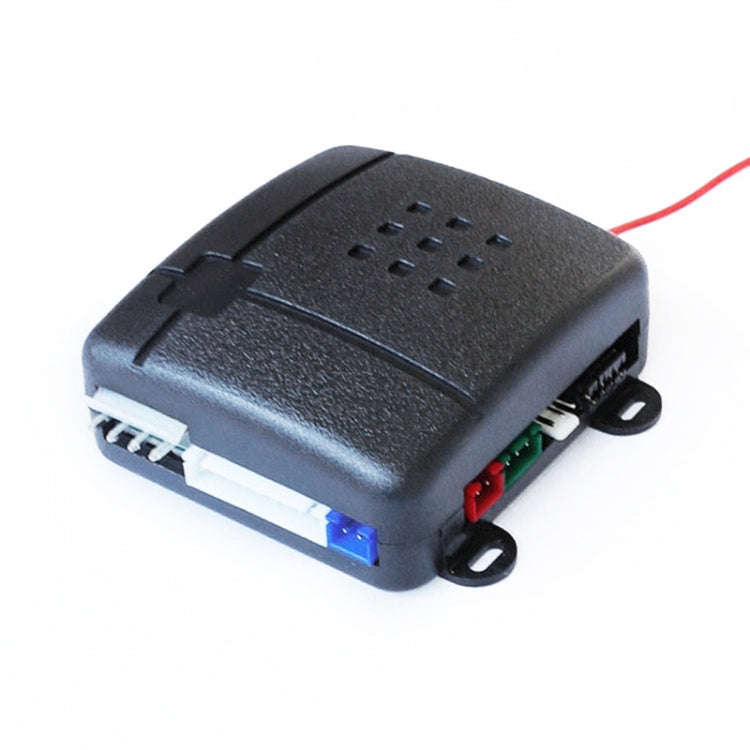

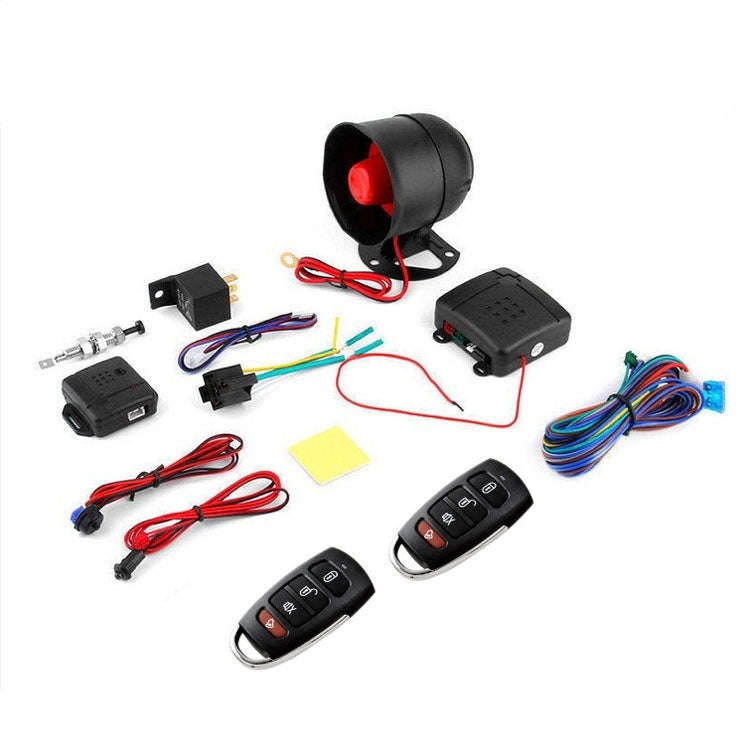

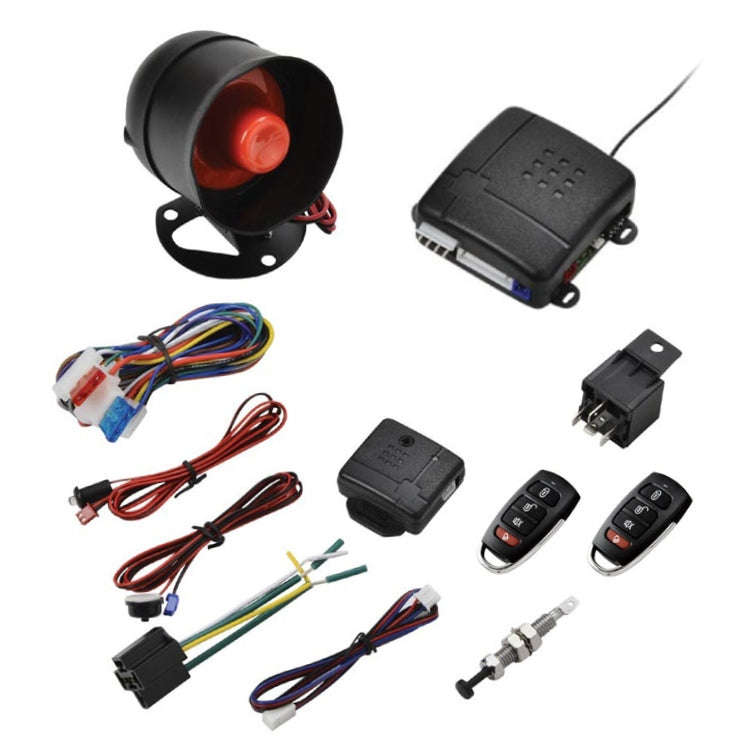

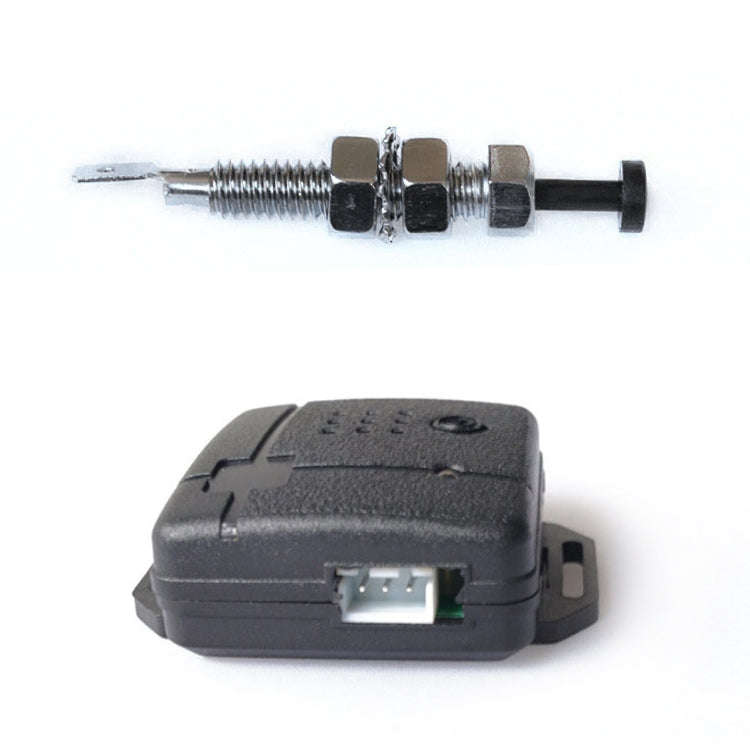

9. Contains: host connection line, LED indicator, host, 2 remote controls, manual, vibrator, vibrator wire, vibrator bottom sticker, flameout relay and wire set, long screw switch, emergency release line
Remote control operation function:
1. Side door anti-robbing: open the ACC, if you open and then close the main driving door, the LED flashes and the car light flashes twice, indicating that the function is activated. If the sound is set, the horn will beep twice. Turn on the anti-robbing function. Line to side door negative
2. Remote control anti-grab: turn on ACC, press the sound button for 3 seconds, the light flashes twice, the horn and the negative horn beeps twice, and the LED flashes quickly, indicating that the function is on. If the sound is on, the horn beeps twice and the function is programmable
3. Ignition anti-robbing: If this function is enabled, every time you turn on ACC, the system will automatically activate the anti-robbing function, without opening the door, press the remote control, after activation, the LED will flash and the car lights will flash twice. If the sound is turned on, the horn will beep 2 sounds, function can be set
4. On-site anti-robbing: flashing, the car lights flashing twice, if the sound is turned on, the horn will sound twice, the function can be set, so the optional remote control will stop the car after 60 seconds away from the car
5. Enter anti-robbing: the system enters anti-robbing mode, and the car lights flash twice. If the function 13 is also activated, the horn will beep twice, and the LED will start to flash slowly. After 30 seconds, the car lights flash and the horn shouts for 15 seconds. After that, if function 14 is turned on and the sound is turned on, the current interrupter (relay) will immediately turn on and send a bad working signal to the engine. After 15 seconds, the current interrupter will activate again, shut off the engine, lock the door, and the horn will keep beating
6. Exit anti-robbing: turn off the anti-robbing system before the horn keeps beeping, or press the emergency contact button once within 60 seconds of the anti-robbing trigger, and then release it. After the horn starts to call, or 60 seconds after the anti-robbing is triggered, turn on the ACC, press the emergency contact and the security code the same number of times (factory default is 1 time), and then wait 3 seconds to confirm whether it is correct
7. Emergency alarm: when the system is armed, the ACC, the side door is opened, or the vibration is re-triggered, the horn is called for a long time, and the direction and the horn are flashing for 30 seconds. If it is still open after 30 seconds, the sound and light alarm will continue. you can use the arm and release keys to pause
8. Mute disarm: press button 3 once, then button 2 once, it will disarm in the mute state, the direction light flashes, unlock, no sound
