9 Port HDMI Video Splicer Processor | Video Wall Controller spreads image to up to 9 displays

This 9 Port Splicing Processor, supports 1 HDMI or DVI input and 9 HDMI outputs which are spread across multiple screens, it is used to divide a complete HD image signal into various blocks and assign it to different video display units (such as projectors, hdtv's, PC Monitors etc.) and splice one image across multiple displays.

This device is commonly used with a 2x2, 2x3, 3x2, 3x3 or any combination layout as per below diagrams for HDTV's or Projector setups in call centers, boardrooms, auditoriums, kiosks with menu displays, sports bars or other entertainment areas to provide a larger display by combining more displays or projectors into the configuration.

The Total resolution of this unit is 4K 3840 x 2160 when using 4 displays 1080p@60hz = 1920 x 1080 x 4 outputs = 3840 x 2160 total Output display Resolution spread across 4 displays. If Spread across 9 displays (in 3x3 setup) total resolution will be 5760 x 3240.

Specifications:

• 1 HDMI input - From PC / Laptop, Gaming Consoles, Media Player, DSTV Explora etc
• Supports 9 HDMI outputs which can be spread across multiple screens with slicing options below
• Supports input : FullHD 1080p, 1920x1080P,24/30/50/60HZ and lower resolutions
• Supports output resolutions 1920x1080P
• Supports multiple splicing modes

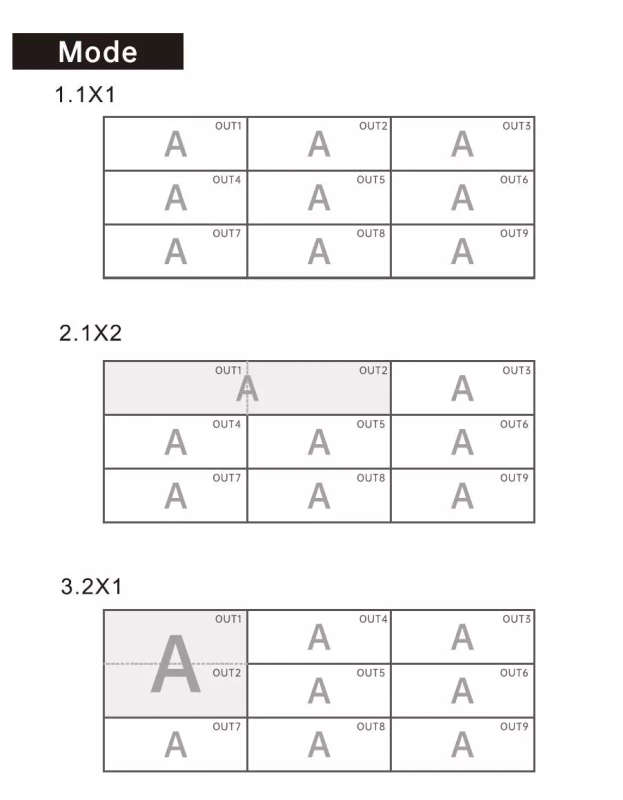

Example Display Splicing Layouts below:

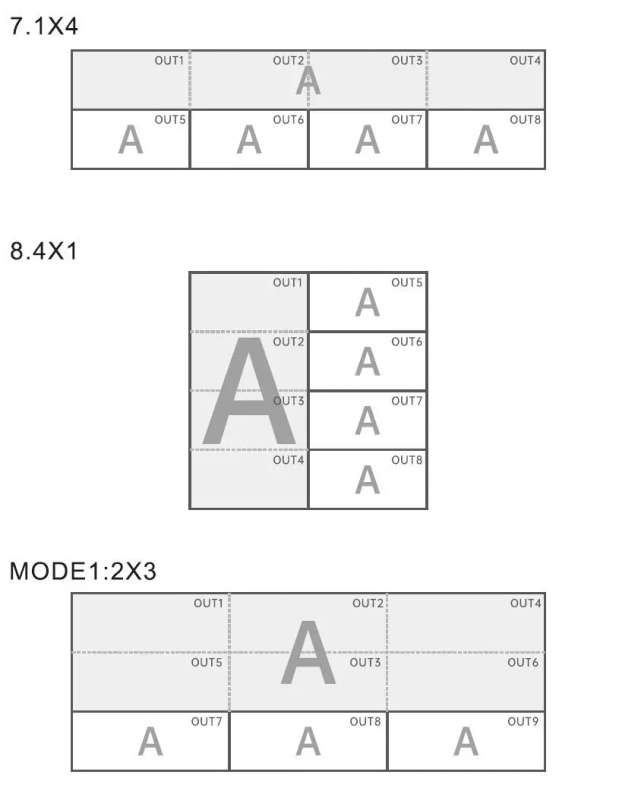

Other selectable Splicing Modes:

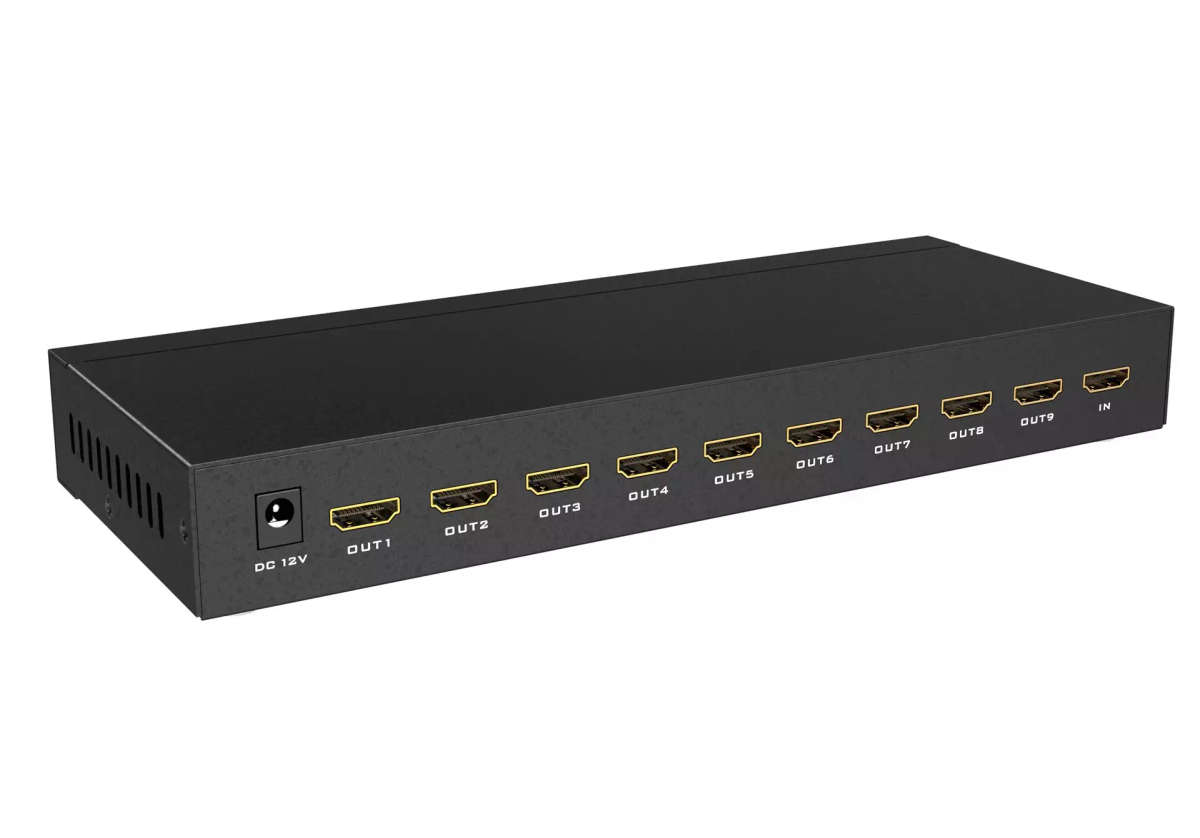

Device Ports:

Overview and Usage

This Video wall controller has a nine screen splicing processor, which can provide up to nine sliced pictures to different displays and split functions from a single device / player. Adopting an unique embedded hardware design, it accepts a HDMI Input and after splitting and amplifying the digital signal, it outputs HDMI in real-time without distortion to all displays. The video controller is hardware controlled, and it does not need a PC or any software to operate.

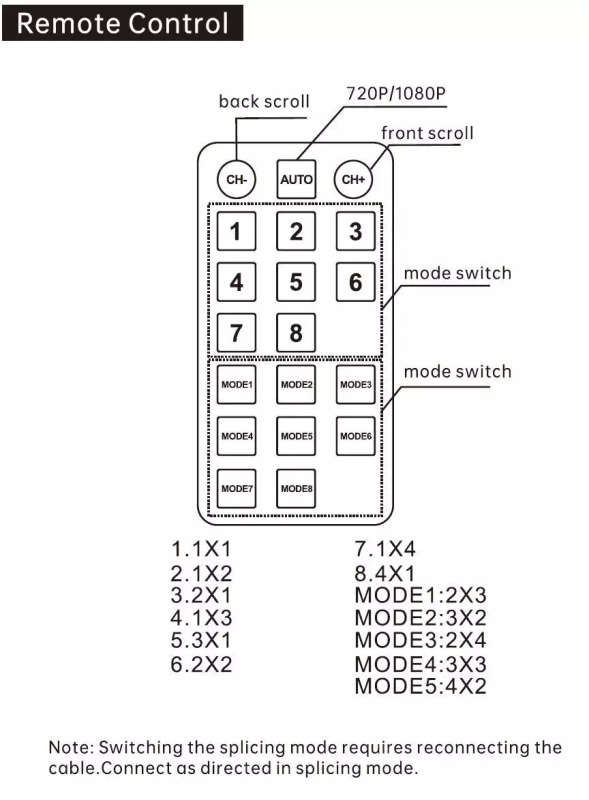

Device Remote Control Functions:
