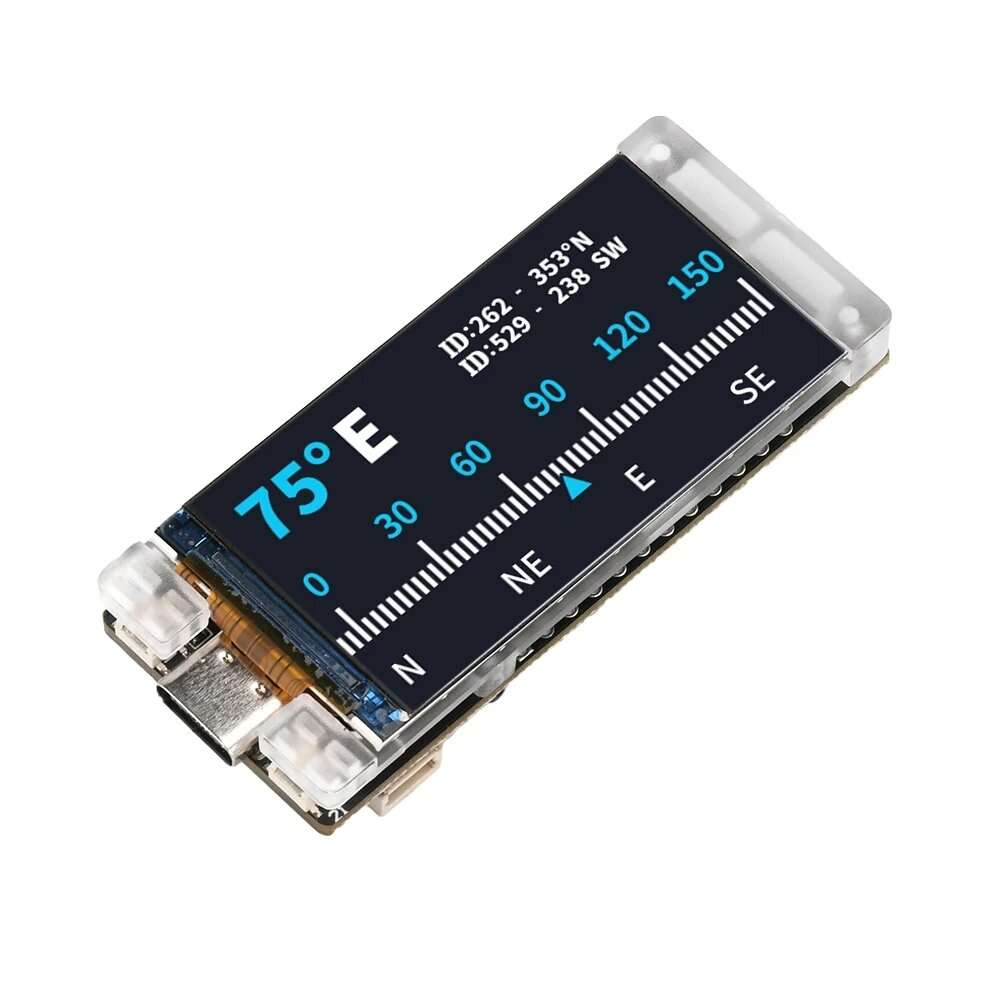

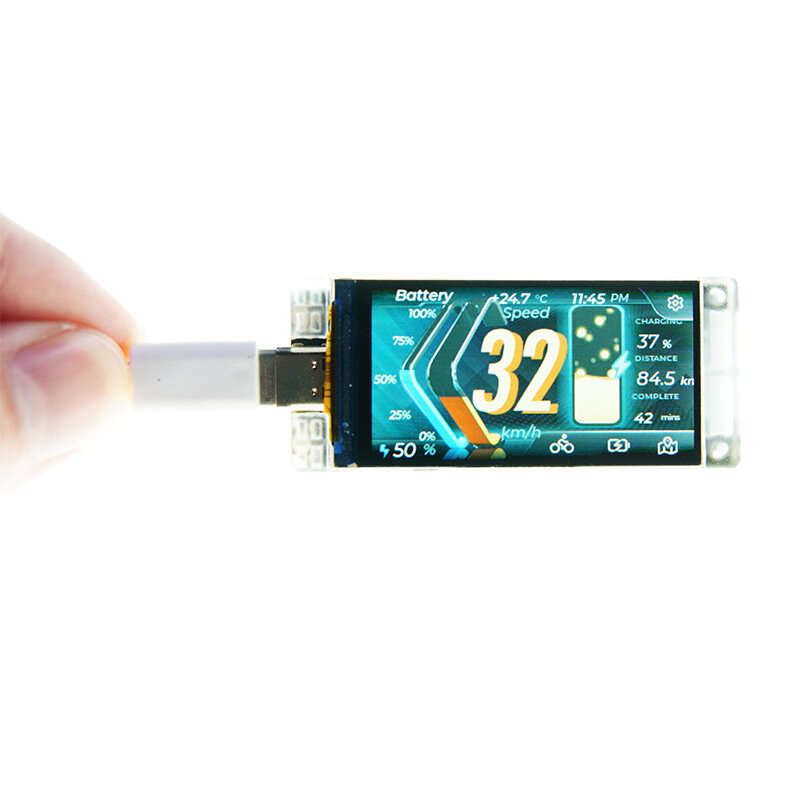

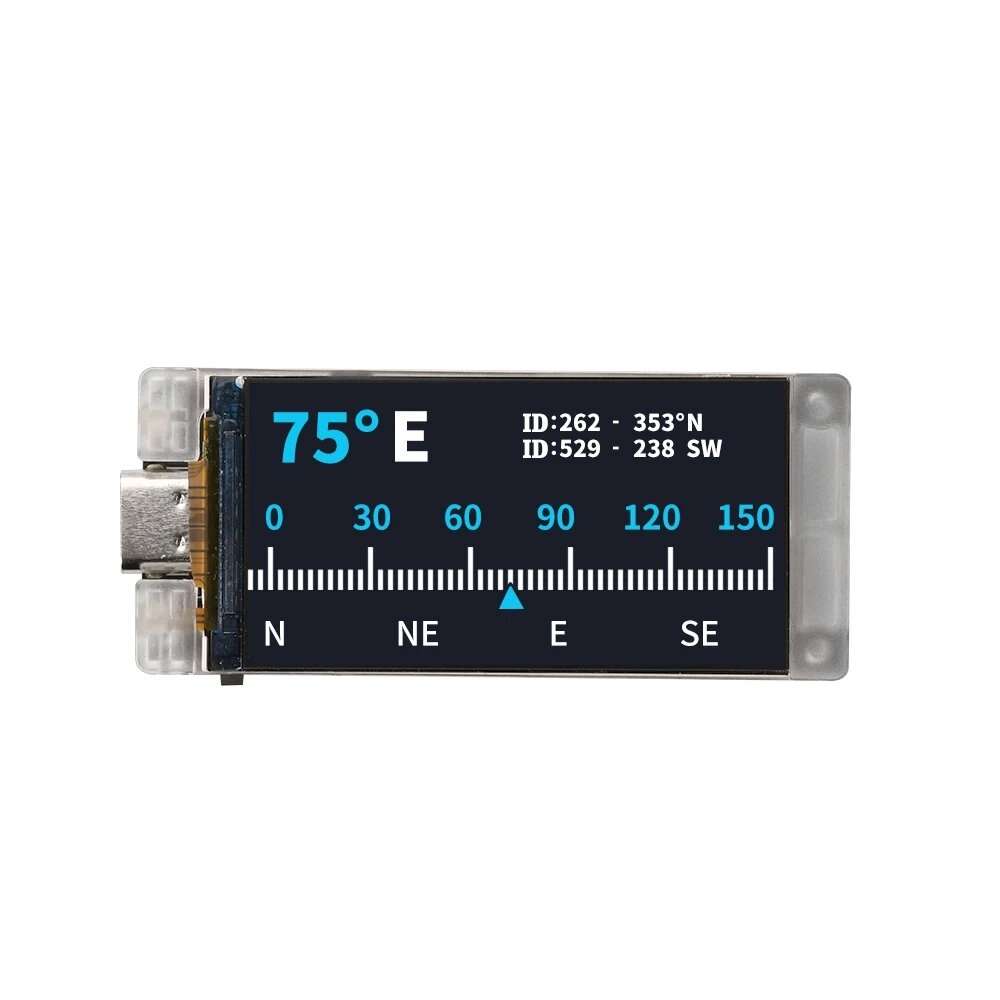

902-928 MHz - HELTEC ESP32-S3-R8 Support Bluetooth WiFi with 1.9 Inch TFT Display HT-VMT190 Module S

Features:

1. Adopting ESP32-S3R8 main control chip, supporting WiFi and Bluetooth.

2. The LoRa module is optional and compatible with Mashstick.

3. Low power consumption, deep sleep 18uA.

4. Powerful display function, onboard 1.9-inch TFT-LCD display screen, including 170 (RGB) X320 dots, can display up to 262K colors.

5. High contrast, high reflectivity, and ultra wide viewing angle.

6. The SH1.25 sensor interface is perfectly compatible with the QuickLink series sensors.

7. Compatible with open-source software and hardware platforms, we provide an example development framework and library.

8. Supports USB/lithium battery power supply, with the option to choose between 3.3-4.2V lithium battery power supply or USB charging. The advantage of using USB and lithium battery power together is that it can enhance power supply reliability, improve battery life, adapt to various scenarios, optimize charging management, and improve device compatibility.

9. The combination of TFT-1.9-inch screen display and LORA wireless technology ensures high-quality screen display effects, stable long-distance data transmission, and meets the low-power operation requirements of devices.

Specification:

Main control chip: ESP32-S3R8

LoRa chip: SX-1262

Frequency (optional): 433MHz, 470~510MHz, 863~870MHz, 902~928MHz

Power supply interface: lithium battery interface; Type-C interface

Bluetooth LE: Bluetooth 5, Bluetooth mesh

Storage:

384KB ROM

512KB SRAM;

16KB RTC SRAM;

8MB SiPFlash

Supply voltage: 3-5V

Storage temperature: -30~70

Working temperature: -20~60

Optimal storage humidity: 0-65%

Display module: N190-1732TPWG01-C30

Screen type: Color TFT

Screen size: 1.9 inches

Display color: 262K

Display area: 22.7 (H) x42.72 (V) mm ²

Display resolution: 170RGBx320

Hardware resources: 7 * ADC1+6 * ADC2; 11*Touch; 3*UART; 2*I2C; 2*SPI;

Interface: Type-C USB;

2 * 1.25 lithium battery interface;

LoRa ANTIPEX1.0

Wi-Fi ANTIPEX1.0

2 * 12 * 2.54 plug pins;

SH1.0-4P sensor interface.

Dimensions: 60x25.4x10.2mm

Package include:

1 x Development board

2 x Needle arrangement

2 x Terminal wire

1 x Antenna
