Specifications:

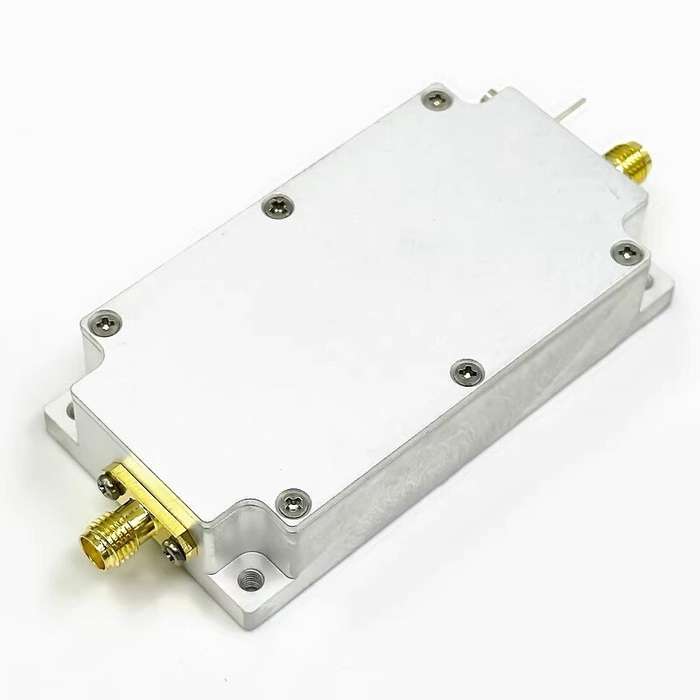

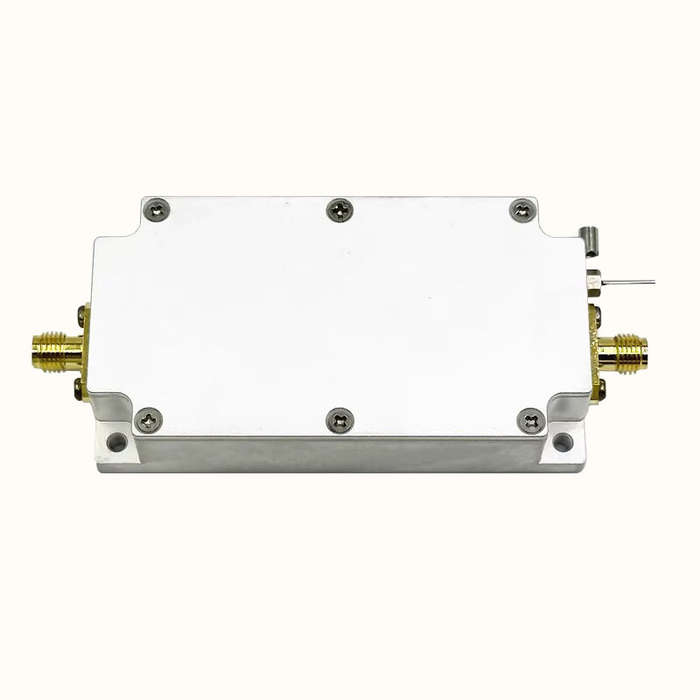

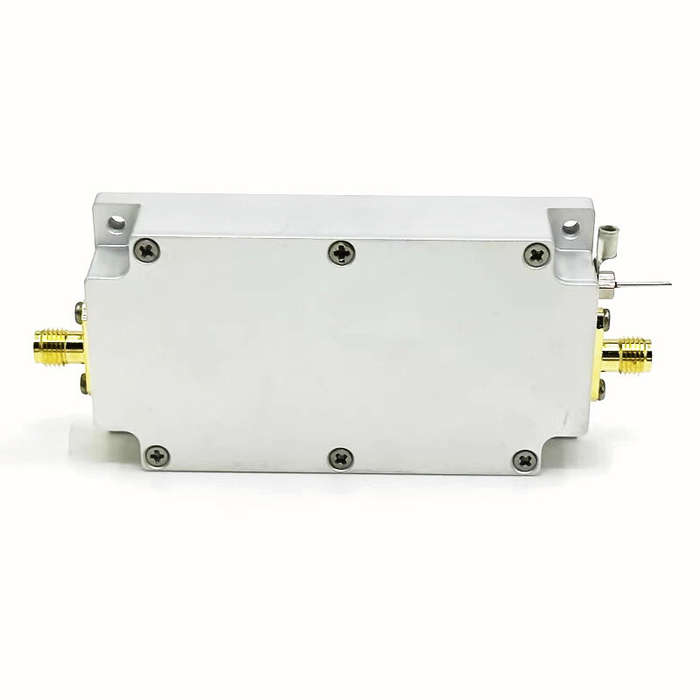

Model: 915MHz RF Power Amplifier
Working Frequency: 820-970MHz (860MHz, 915MHz)
Output Power:
13W (41dBm@24V, RFin=5dBm (3mW))
15W (42dBm@28V, RFin=5dBm (3mW))
20W (43dBm@28V, RFin=7dBm (5mW))
Working Voltage: 20-28V (24V recommended)
Working Current: 1.7A (depending on the supply voltage)
System Impedance: 50 ohms
Overall Size: 76x40x16.5mm (without joint)
Connector Type: SMA female head (outer screw inner hole)
Note: Additional heat sink r
