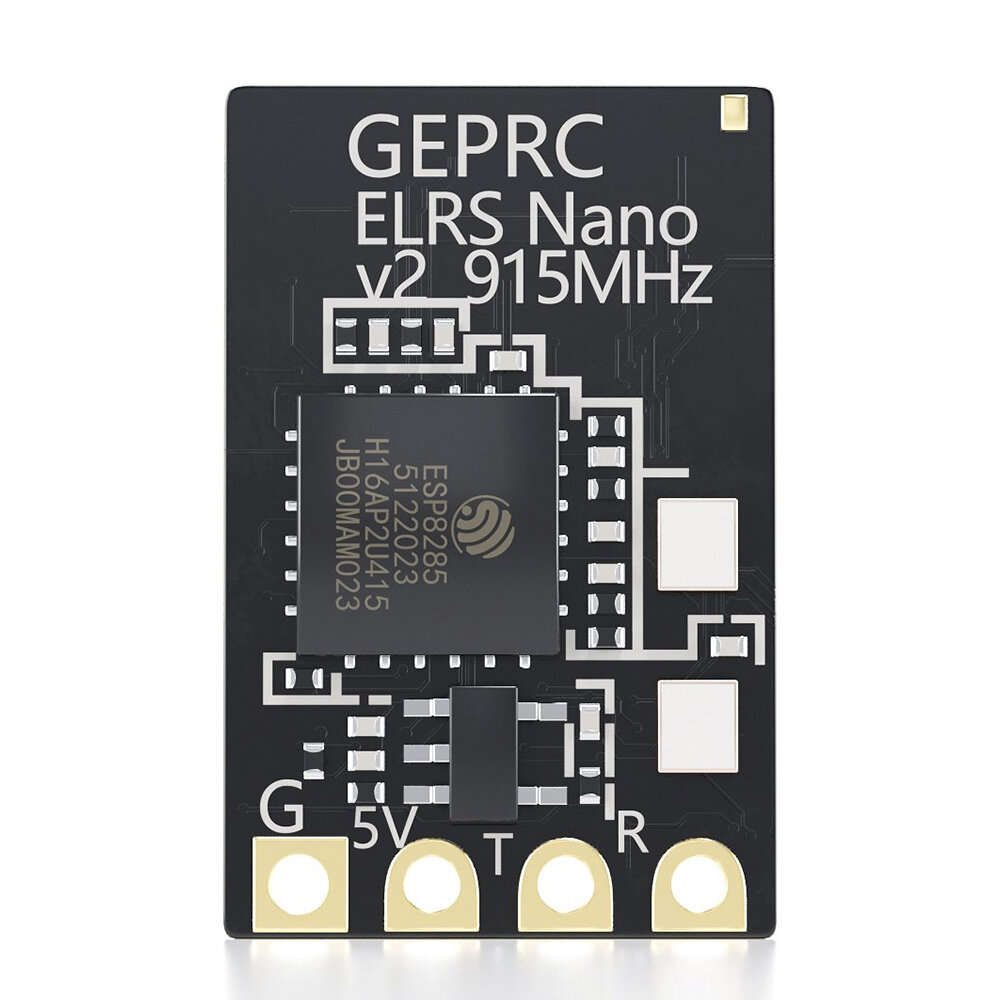

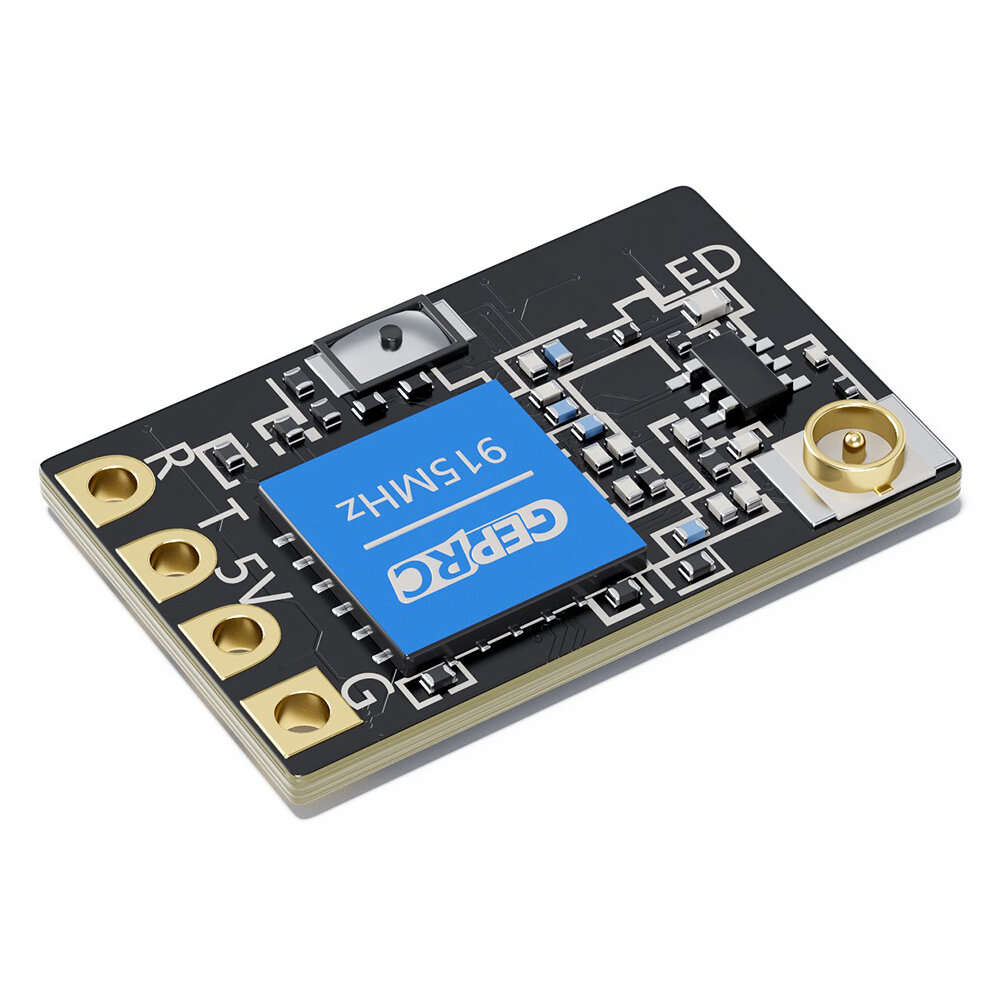

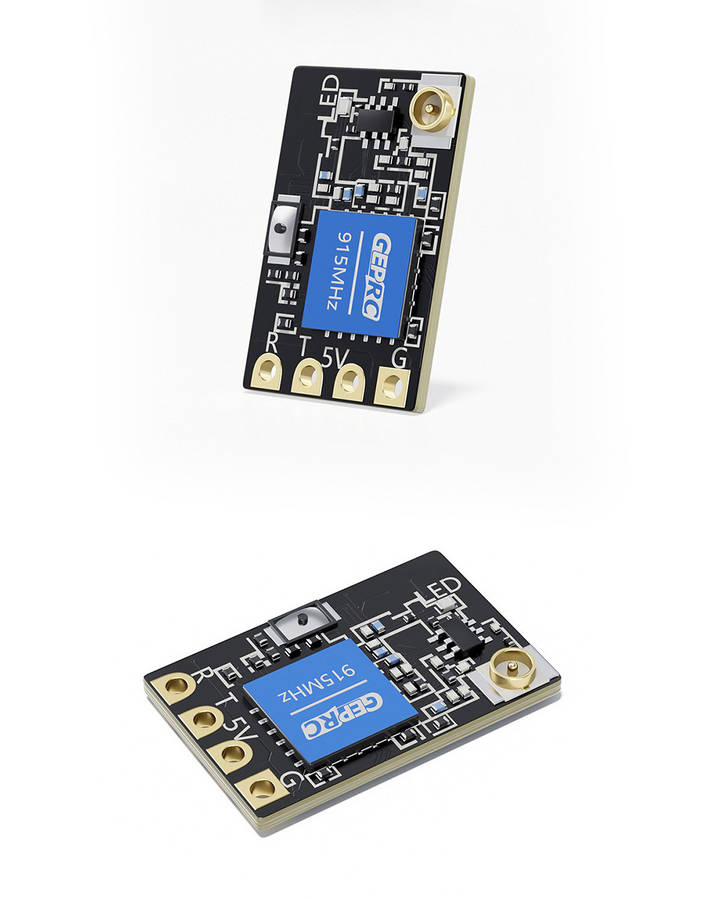

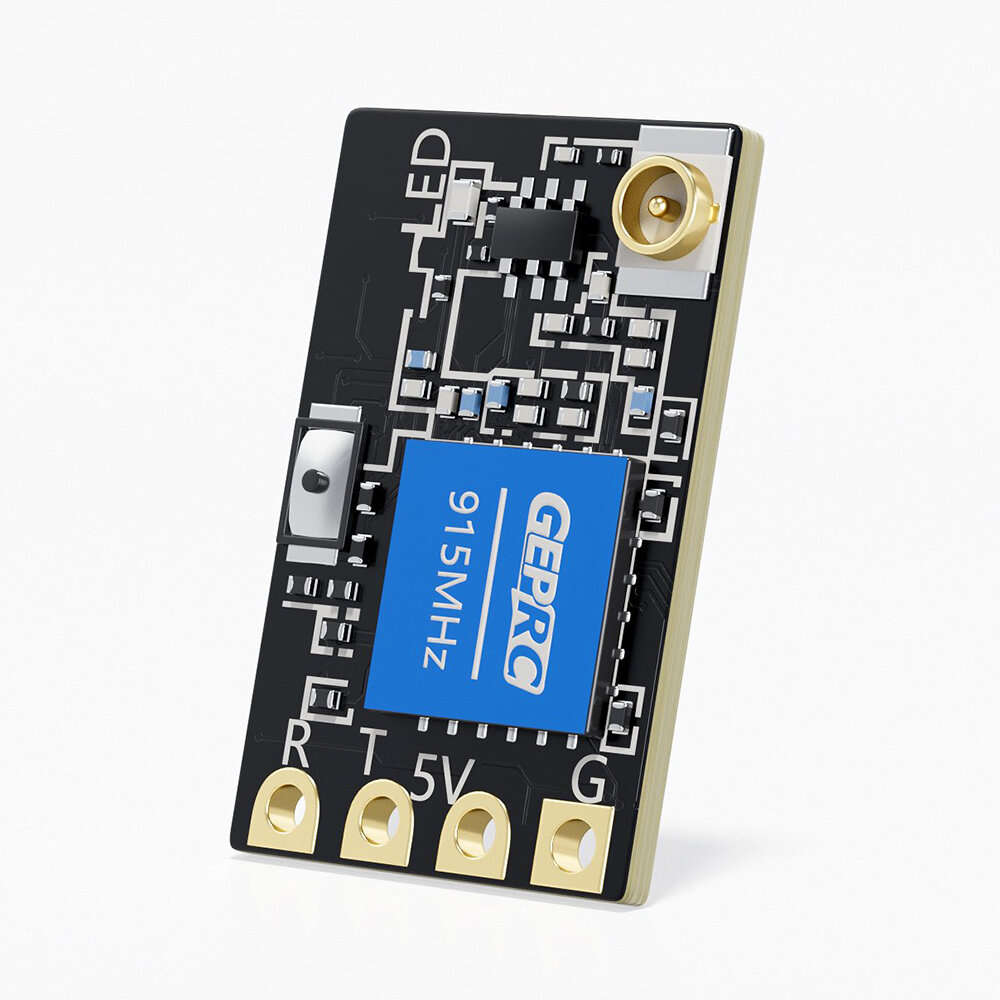

GEPRC ELRS Nano 915MHz V2 Open Source Long Range TCXO RX RC Receiver for FPV RC Racing Drones
Summary:
GEPRC ELRS Nano 915M V2 Receiver is a new generation receiver system based on ExpressLRS open source project. ExpressLRS features long range operation, low latency, and low price.

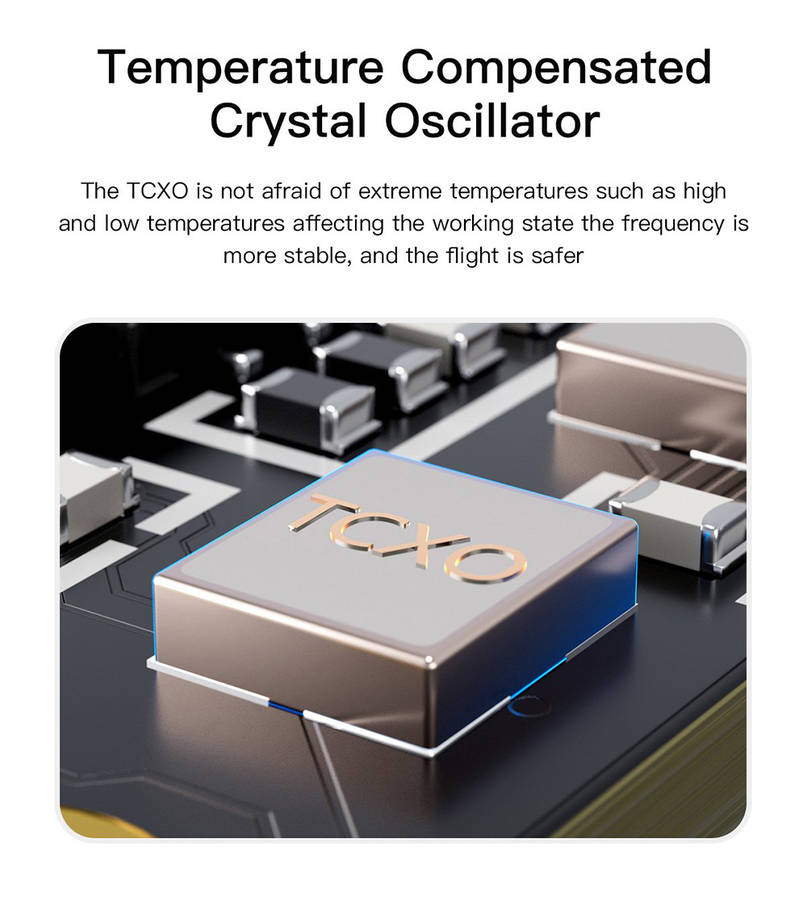

The ELRS Nano 915M V2 Receiver uses a TCXO temperature compensated crystal oscillator to avoid frequency shift caused by temperature changes;the telemetry power is up to 50mW; Built-in WIFI antenna, firmware upgrade operation through WIFI.
Feature:
* 17x11mm Small size
* 0.7g weight
* WIFI Upgrade firmware
* ELRS open source project, remote control
* Maximum refresh rate of 200Hz
* The use of temperature-compensated crystal oscillator (TCXO), no fear of high or low temperature impact, more stable performance, even if long hours of work is not easy to cause loss of control
* Up to 50mW telemetry power
Specifications:
Brand: Geprc
Size: 17x11mm
Weight: 0.7g (RX only)
Chips: ESP8285, SX1276
Crystal Oscillator: TCXO
Frequency Band: 915MHz FCC /868MHz EU
Refresh Rate: 25Hz-200Hz
Input Voltage: 5V
Antenna Connector: ipex1
TLM Power: 50mW
FirmwareGEPRC Nano 900MHz RX
Package Included:
1 x ELRS Nano 915M V2 Receiver
1 x Antenna
1 x Heat shrink tube
4 x Silicone cable
1 x Pin (4pin)
1 x Instruction manual
