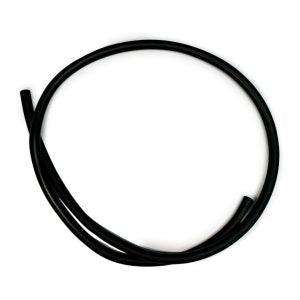

95mm2 3/0 AWG Battery Cable 20CM Black

95mm2 3/0 AWG Battery Cable 20CM Black

DC Battery Cables for battery to battery or battery to inverter connections. Hydraulically crimped and insulated ring terminal lugs to minimise resistance and reduce the risk of a fire hazard.
These cables have pure copper cores compared to aluminium cores that do not have an efficient CCC (Current Carrying Capacity).While aluminium core cables are more popular on solar panel connections due to safety reasons and allow the cable to burn off internally and prevent fires, copper cables are in favor of battery connections to minimize voltage loss and current restrictions.Therefore it is critically important to have battery cables professionally crimped and adequately sized for the application.
Colour: Black
One End Lug: No Ring Lugs
Other End Lug: No Pin Lugs
Strand Diameter: 0.3mm
Cable Size AWG: 3/0 AWG
Nominal Size MM2: 95mm2
Nominal External Diamter: 19mm
Cable Type: DC Battery Cable
Max Continious Current: 380 Amps
Max Starting Current: 695 Amps
Insulation/Wall Thickness: 2.6mm
Max Resistance Mohm/km: 0.206
Conductor Type: Flexible annealded copper SABS 1411 Part 1 Class 5 resistance
Operating Temperature: up to 70 C
Stock Location: In Stock at Livestainable
