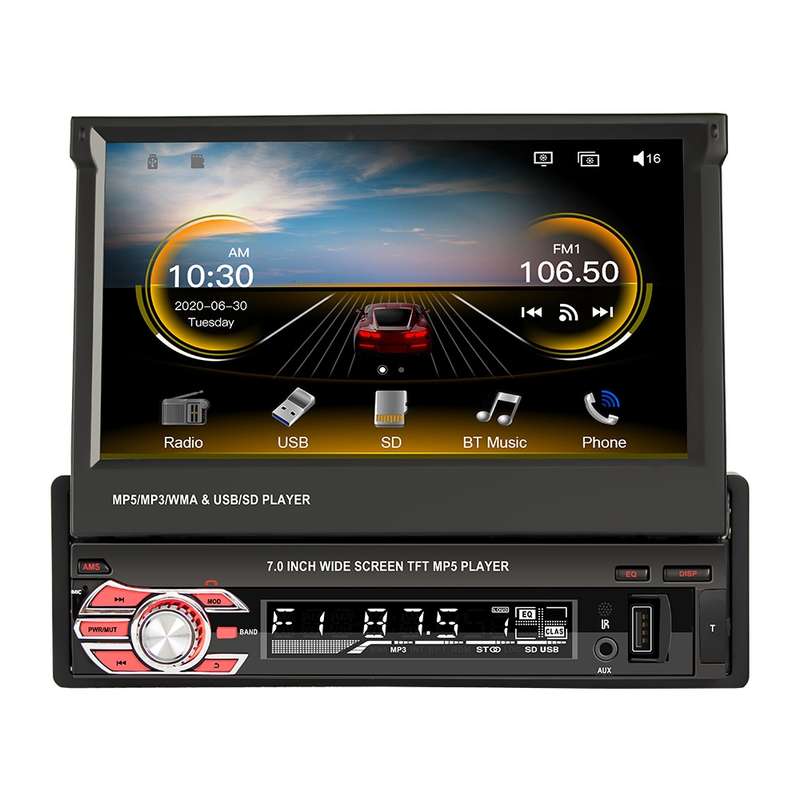

9601C HD 7 inch Universal Car Manually Retractable Screen MP5 Player with Carplay, Support FM & Bluetooth & TF Card
EDA0020877

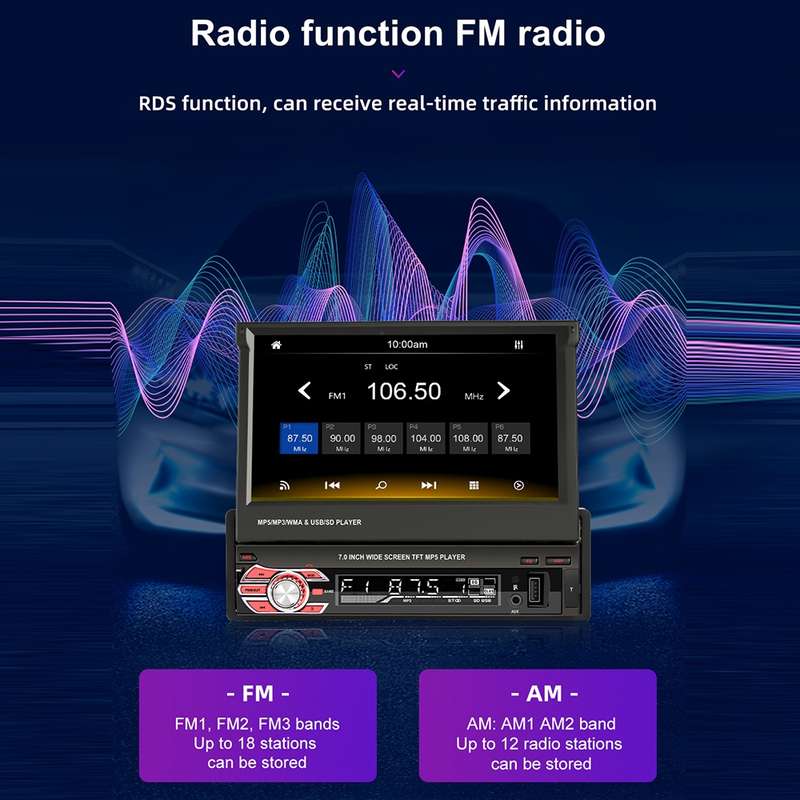

1. Radio function FM radio: supports FM1, FM2, FM3 three bands, can store up to 18 radio stations, AM:AM1 AM2, can store up to 12 radio stations. RDS function, can receive real-time traffic information.

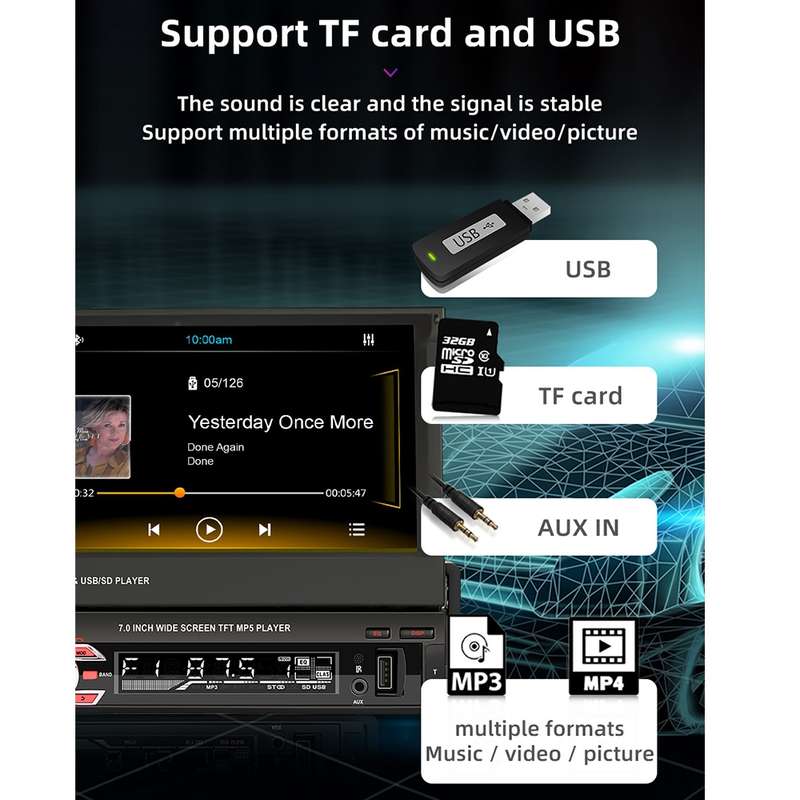

2. Card reader, U disk (audio/video/picture)
3. AUX function, click into the AUX mode of the machine, and use the AUX audio cable to plug both ends (one end into the machine AUX jack and the other end into the phone earphone jack) when the phone is playing music, then the phone can be played.
4. Bluetooth function, first turn on the phone's Bluetooth, then use Bluetooth to search for CAR-BT or bt-mp3, etc., after searching, click to connect, enter 0000, and some can be used without a password. Enter the Bluetooth mode on the machine, and then open the phone player to play songs, you can play the phone music.

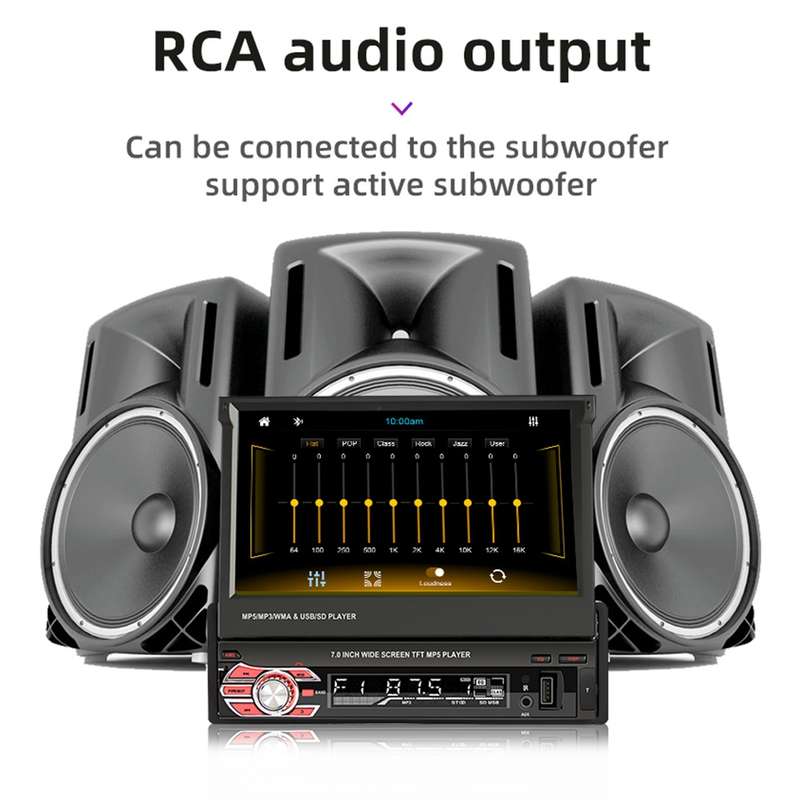

5. RCA audio output can be connected to a subwoofer, support active subwoofer

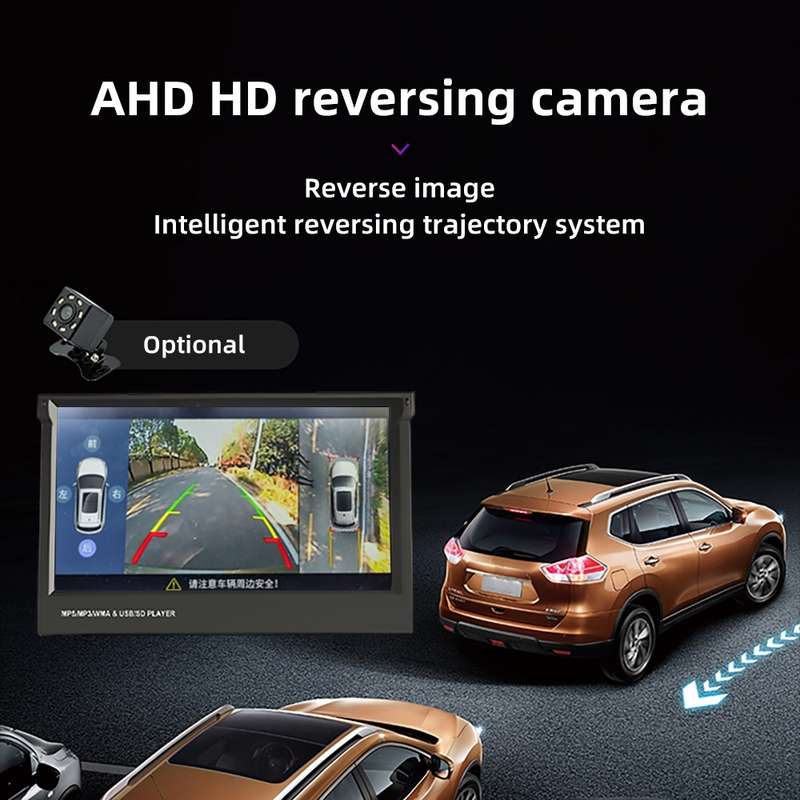

6. Support AHD HD reversing camera input
7. Video input
8. Video output (simultaneous display): support video output to an external monitor, dual screens simultaneously display
9. Original car steering wheel learning function: This function needs to first connect the machine to the original car's square control line, and then click on the machine setting-square control setting to learn

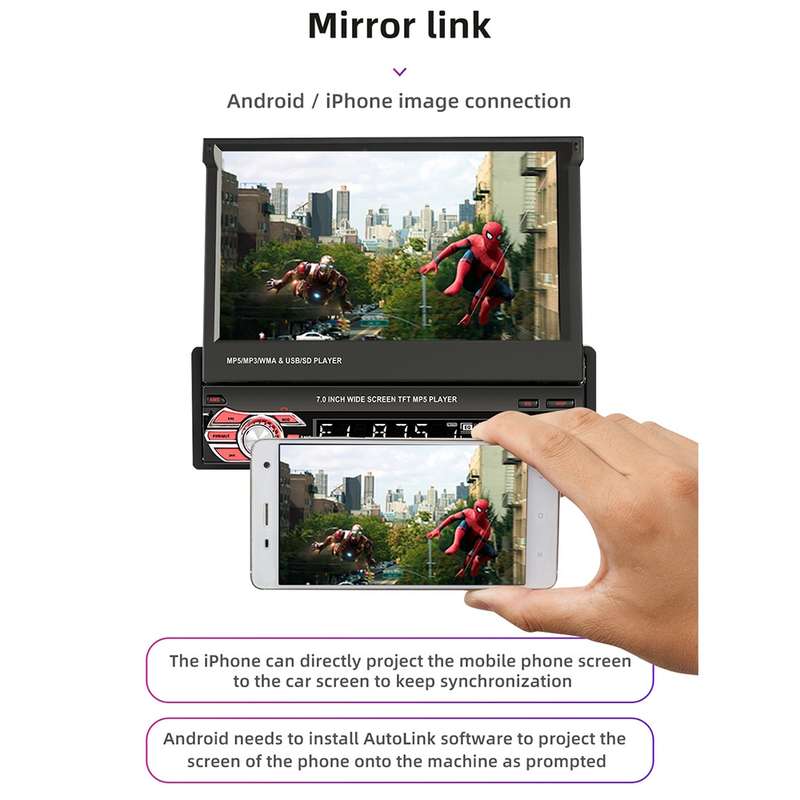

10. Mobile phone interconnection (supports Android and iOS phones)

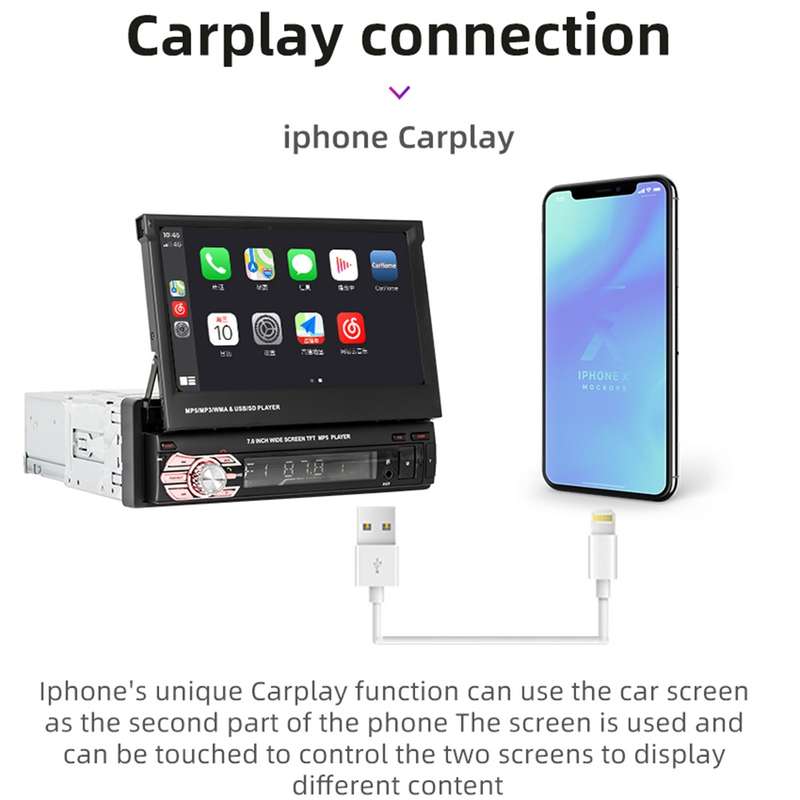

11. Support iOS mobile phone wired Carplay function
12. Support Android AUTO function

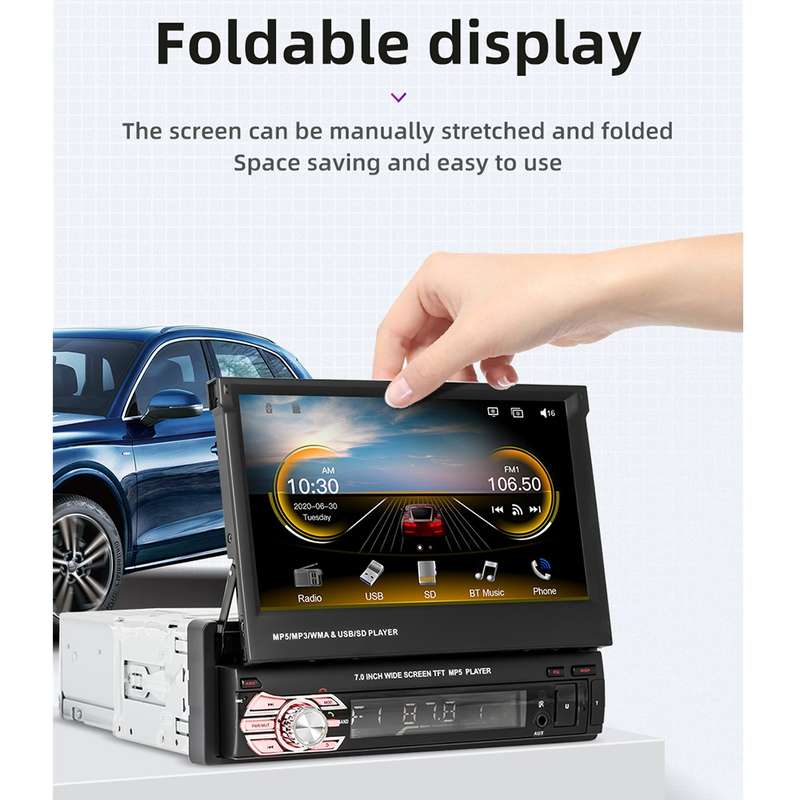

13. The display can be folded (manually retractable)
14. Colorful lights: seven colors can be selected or automatically changed
parameter:
1. Voltage 12V
2. System: Sunplus ecos system
3. Software solution: 8268K
4. Screen size: 7 inches
5. Screen resolution: 1024*600

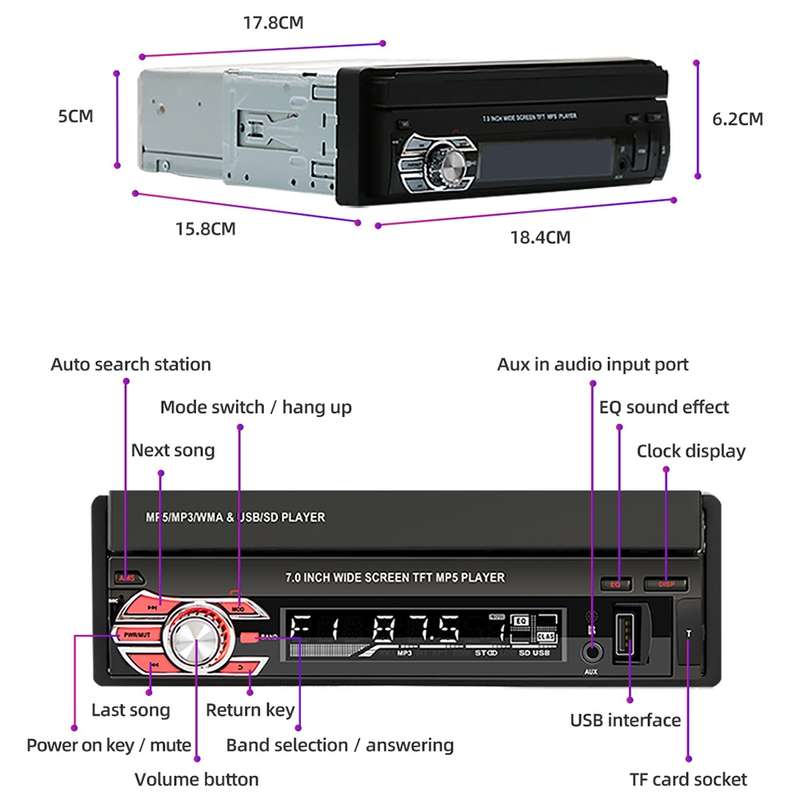

6. Panel size: 188*58mm
7. Panel lighting: colorful lights
8. Radio band: FM AM
9. Radio chip: ZT0811
10. Language: English/Spanish/Portuguese/Simplified Chinese/Traditional Chinese/German/French/Turkish/Japanese/Russian/Italian/Polish/Dutch/Arabic/Hebrew/Czech
11. Output power: 4x60W
12. Working voltage: 12-14.4V
13. Working temperature: -10~60 degrees
14. Steering wheel control function: support
15. Bluetooth model: CAR BT, version 5.0
16. Power amplifier chip: YD7388
17. Radio frequency: FM87.5~108MHz AM522~1620KHz
19. Video output: support
20. Dual screens at the same time: support
21. TF card slot: Yes
22. Remote control: 21-key silicone remote control
23. Square control remote control: support
24. USB interface and version: USB2.0 reading all the way
25. Reset button: Yes
26. Buttons: physical buttons
27. RCA terminal introduction: 2 audio outputs, 1 reversing input, 1 video input, 2 video output
28. Vehicle logo replacement: support
29. Supported audio formats: MP3/WMA/AAC/APE/OGG/M4A/RA/WAV
30. Supported video format: H264 DIVX HD (720P 1080I 1080P) AVI/FLV/MKV/RMVB/MPEG/ASF/TS/H264/QT
31. Supported image format: JPEG/PNG/BMP/GIF/TIFF
32. Factory set password: 2020
